KRASO Local- and District Heating House Connection
Simple, comfortable, tight to the local- and district heating network
» The comfortable solution for the connection to local- and district heating networks – for flexible and insulated pipelines with integrated supply and reflux
» Fully assembled stable installation device: positioning - arrangement - concreting - connection – ready!

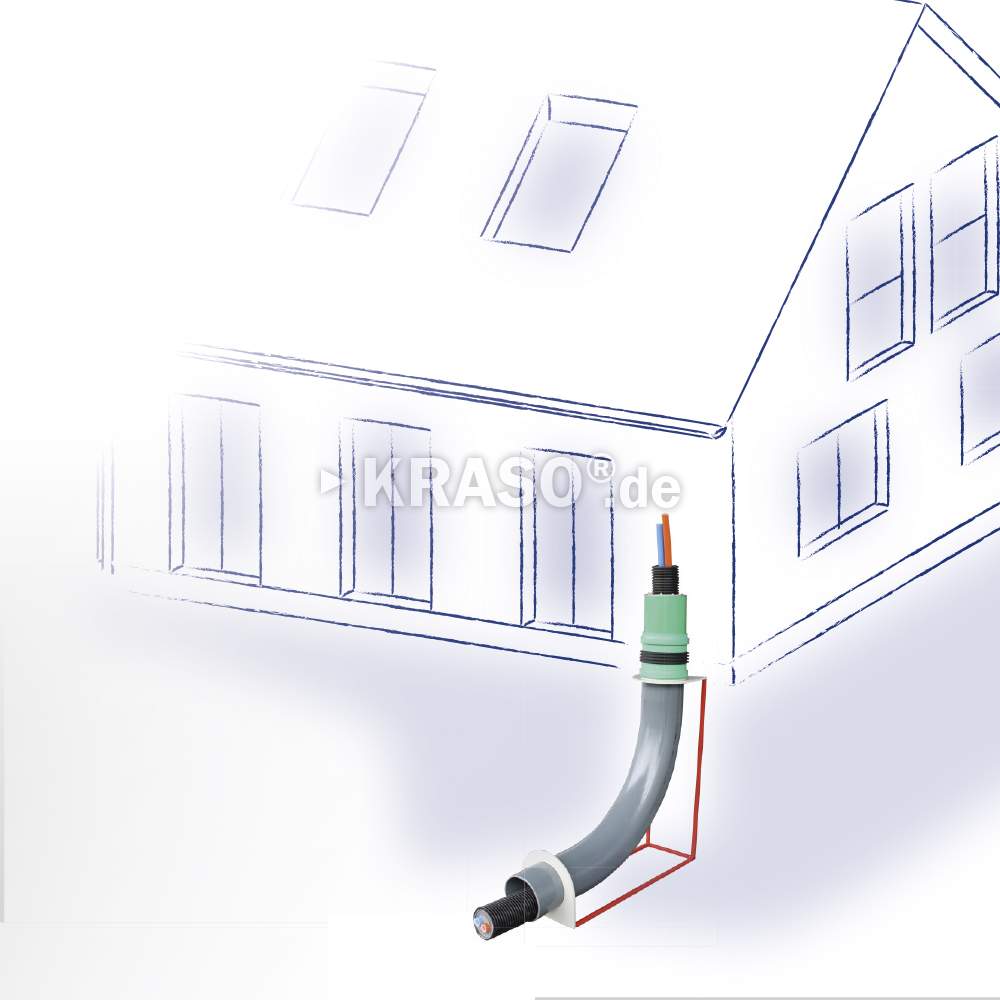

» For buildings without basement: single-/ multi-family houses, public and commercial buildings
» On request also available with KRASO Foil Flange - for the integration into the floor sealing

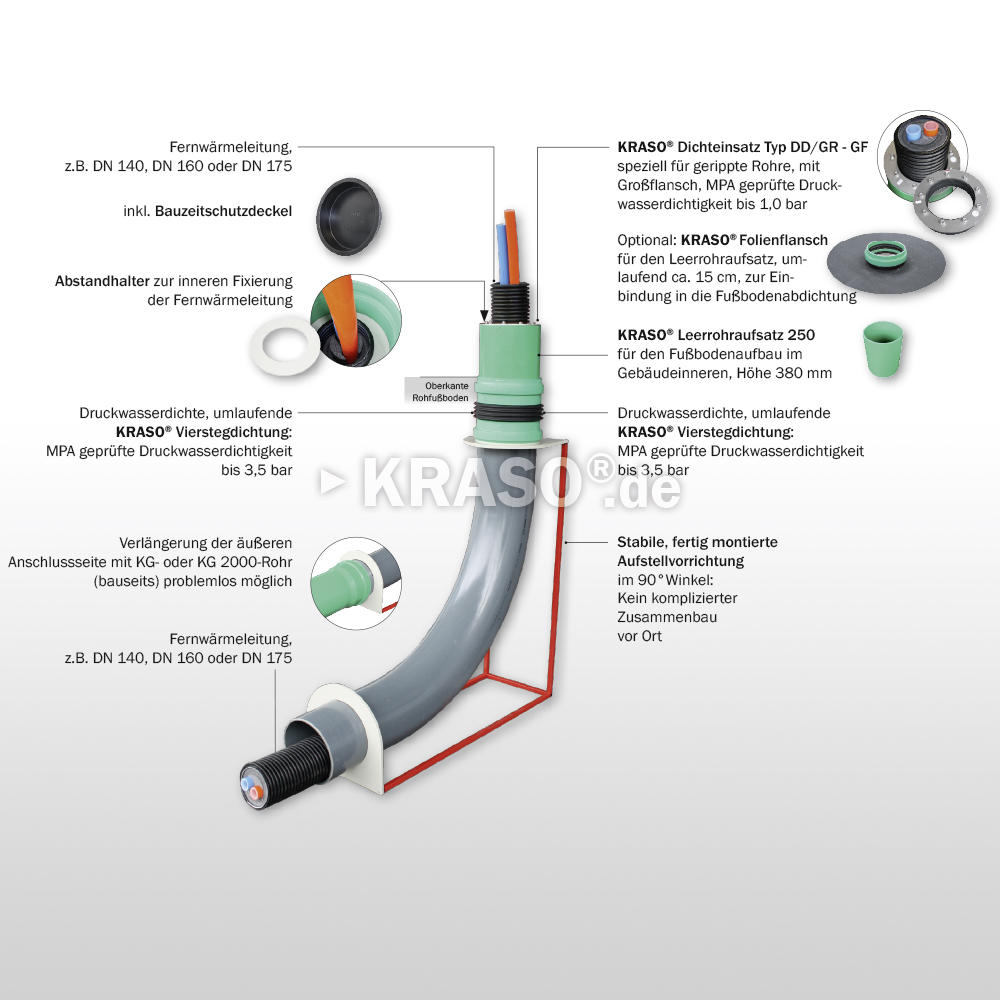

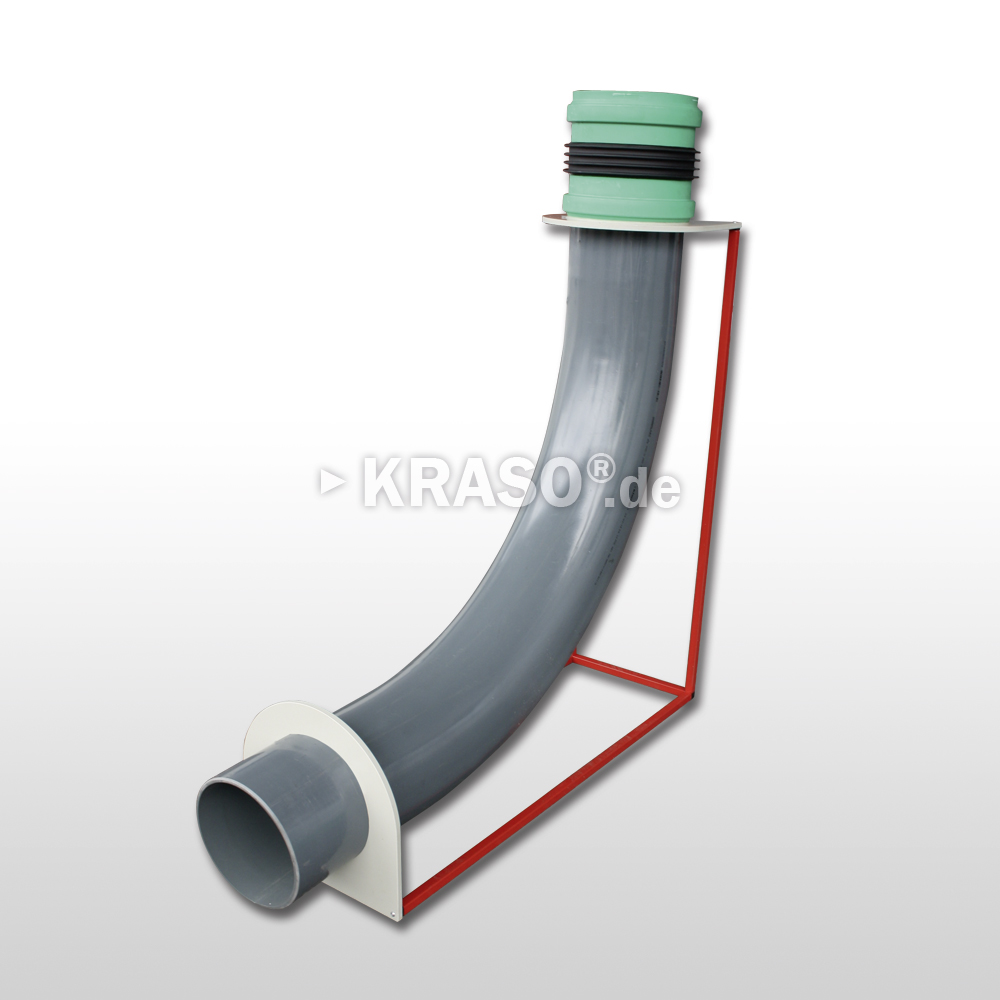

» KRASO Local- and District Heating House Connection - basis - including:
- KRASO Local- and District Heating House Connection 1-fold DN 200, DN 250 or DN 315 with water pressure tight surrounding KRASO 4 Seal
- KRASO Empty Pipe Insert KG 2000: for the internal floor construction
- Building period protective cover

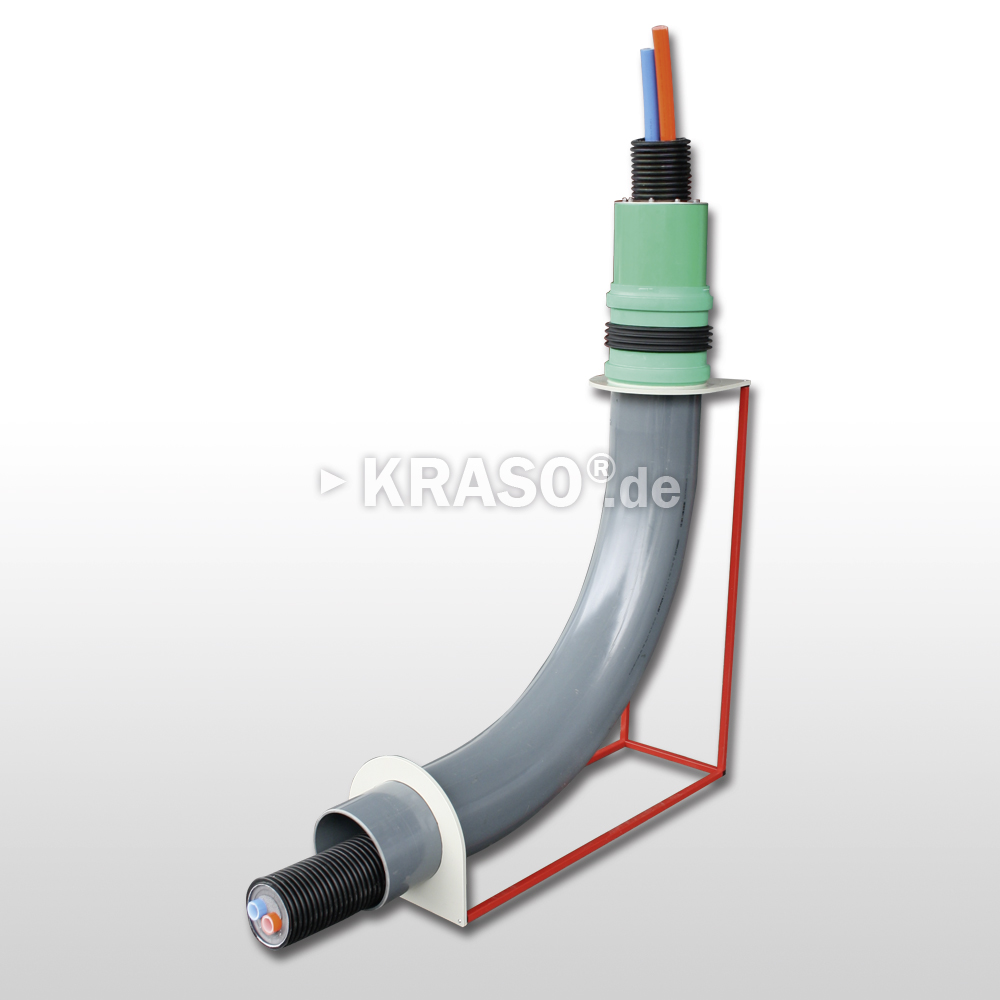

Optional available installation kit including:
- KRASO Sealing Insert Type DD/GR - GF: especially for ribbed pipes, with large flange, MPA-tested water pressure tightness up to 1,0 bar
- Spacer for the internal fixation of the district heating line
Local- and District Heating House Connection:
For a tight and secure connection of district heating lines to buildings without basement. Easy installation due to the stable installation device. All general pipelines for district heating can be connected.
Combinable with KRASO Builder's Convenience Box
Info
KRASO Local- and District Heating House Connection
Scope of supply: KRASO Local- and District Heating House Connection - 1-fold - basis- DN 200 or DN 250, with water pressure tight surrounding KRASO 4 Seal, KRASO Empty Pipe Insert made of KG 2000: for the internal floor construction, building period protection cover
Optional available installation kit: spacer for an internal fixation of the district heating line, KRASO Sealing Insert Type DD/GR – GF: sealing insert with large flange for a water pressure tight internal installation of lines – made of stainless steel V2A, MPA-tested water pressure tightness up to 1,0 bar
(Please give us when ordering the external diameter of the local-/ district heating line. Please ask your local supplier for this information.)
