KRASOflex Wall Expansion Joint T4
KRASOflex Wall Expansion Joint T4

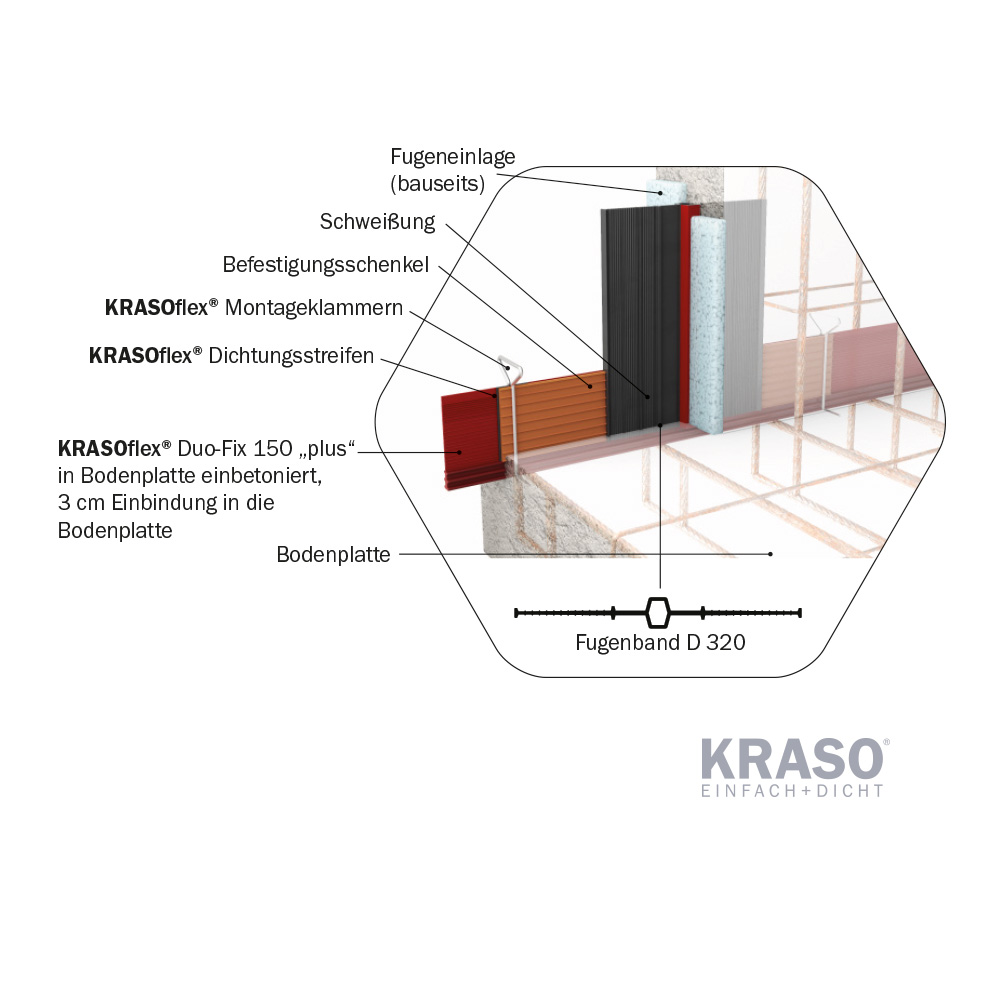

base plate continuous and separate wall
moulded part: internal expansion joint tape type D 320 (wall) with anchor sections
to attach to the surrounding KRASOflex Duo-Fix 150 ”plus”
(expansion joint tapes according to factory standard and DIN 18541)
KRASOflex Joint Tapes for building expansion joints and construction joints
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASOflex Wall Expansion Joint T4 incl. 2 KRASOflex Mounting Clamps
KRASOflex Wall Expansion Joint T4 incl. 2 KRASOflex Mounting Clamps
Downloads
KRASOflex Wandtrennfuge T4
|

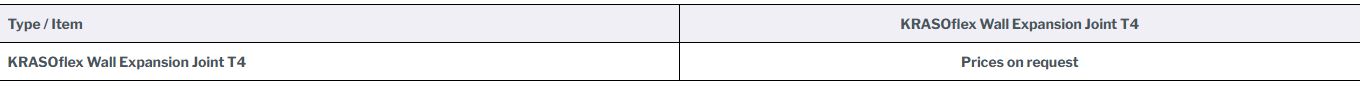

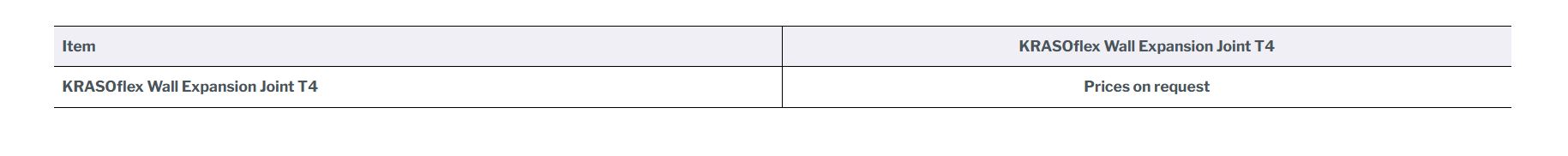

Type / Item |
KRASOflex Wall Expansion Joint T4 |
|
KRASOflex Wall Expansion Joint T4 |
Prices on request |
KRASOflex Building Expansion Joint T1
base plate and wall separate corner moulding: external expansion joint tape type AD 320 (under the base plate)
on external expansion joint tape type AD 320 (wall) as well as on KRASOflex Duo-Fix 150 “plus”
as connecting piece for surrounding KRASOflex Duo-Fix 150 “plus”, anchor lengths 50 cm each
(expansion joint tapes according to factory standard, DIN 18541 and DIN 18541 BV)KRASOflex Joint Tapes for building expansion joints and construction joints+
DafStB waterproof concrete guideline: stress class 1 + 2
KRASOflex Construction Joint T6
base plate continuous, joint area of triple wall (desired crack) corner moulding: external construction joint tape type AA 320 (under the base plate), on external construction joint tape type AA 320 (wall) and on KRASOflex Duo-Fix 150 “plus”
as connection piece for surrounding KRASOflex Duo-Fix 150 “plus” and for adding
KRASOflex Star Tube System FTW 60 (must be ordered separately), anchor lengths 50 cm each
(construction joint tapes according to factory standard, DIN 18541 and DIN 18541 BV)KRASOflex Joint Tapes for building expansion joints and construction joints+
DafStB waterproof concrete guideline: stress class 1 + 2
KRASOflex Construction Joint T3
base plate and wall continuous corner moulding: external construction joint tape type AA 320 (under the base plate)
on external construction joint tape type AA 320 (wall), and on KRASOflex Duo-Fix 150 “plus”
as connection piece for surrounding KRASOflex Duo-Fix 150 “plus”, anchor length 50 cm each
(construction joint tapes according to factory standard, DIN 18541 and DIN 18541 BV)KRASOflex Joint Tapes for building expansion joints and construction joints+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Mounting Clamps
for joint tapes up to 20 cm highAccessories: + KRASO Mounting Clamp for the impact joint and for easy and secure installation on the upper reinforcement layer. + KRASO Mounting Clamp for precast walls for impact joints and for easy and secure installation on the upper reinforcement layer.
KRASO Sealing Strip
for joint tape corner areas, self-adhesive Accessories: + For a secure sealing of KRASO Duo-Fix "plus" and joint tape corner areas + Simply tight with self-adhesive sealing strips
