KRASOflex Star Tube
KRASOflex Star Tube
for placement on joint tape or joint plate, universally usable for joint or corner areas of wall elements | DafStB waterproof concrete guideline: stress class 1 + 2
The star tube of the future: tight, stable, sustainable
+ The KRASOflex Star Tube revolutionises the use of desired crack elements in precast and in-situ concrete walls
+ Simple installation without inner tube:
- Low weight
- No more slipping of the inner tube and no more cavities that cannot be filled
- Sustainable: up to 35 % less resource consumption
+ Tight and stable:
- Rigid and soft in one
- More stable due to ribbing
- Stronger anchorage due to fixation of the crack control lip
+ With general building authority test certificate (abP) P-MPA-BS240049 (water pressure up to 2 bar)
+ MPA-tested up to 5 bar
+ Factory punched every 20 cm: slotted hole for optionally available mounting system
+ Factory slotted: 15 x 15 mm. For installation on joint tape or joint plate
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Further length available on request!
Downloads
Produktinformation
Prüfzeugnis
Montageanleitung
DWG-Dateien
-
Produktinfo_KRASOflex_Sternrohr (2.91 MiB)
-
Prüfbericht_KRASOflex_Sternrohre_K6_K9_K18 (4.08 MiB)
-
KRASOflex Sternrohr K6 (1.1 MiB)
-
KRASOflex Sternrohr K18 (1.13 MiB)
-
KRASOflex Sternrohr K9 (1.13 MiB)
|

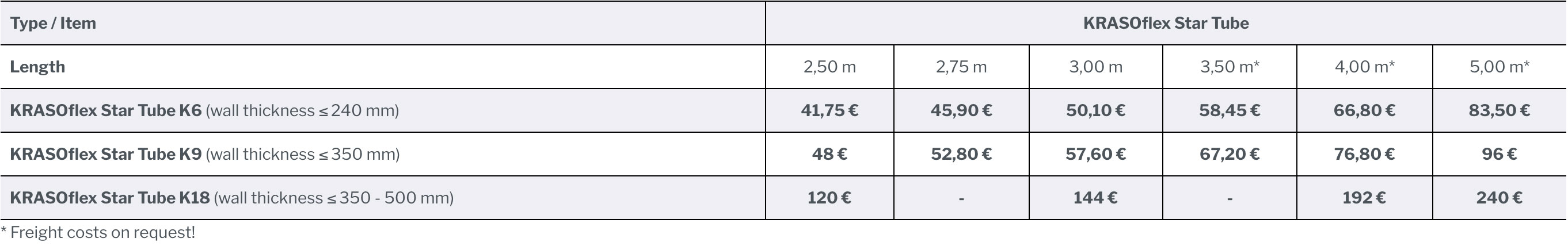

Type / Item |
KRASOflex Star Tube |
||||||
|
Length |
2,50 m |
2,75 m |
3,00 m |
3,50 m* |
4,00 m* |
5,00 m* |
|
|
KRASOflex Star Tube K6 (wall thickness ≤ 240 mm) |
41,75 € |
45,90 € |
50,10 € |
58,45 € |
66,80 € |
83,50 € |
|
|
KRASOflex Star Tube K9 (wall thickness ≤ 350 mm) |
48 € |
52,80 € |
57,60 € |
67,20 € |
76,80 € |
96 € |
|
|
KRASOflex Star Tube K18 (wall thickness ≤ 350 - 500 mm) |
120 € |
132 € |
144 € |
168 € |
192 € |
240 € |
|
KRASO Joint Tape A
Internal construction joint tape (factory standard)Other types of joint tape available on request!Also available as per factory standards, DIN 18541 and DIN 18541 BV
KRASO Joint Tape AA
External construction joint tape (factory standard)Other types of joint tape available on request!Also available as per factory standards, DIN 18541 and DIN 18541 BV
KRASO Joint Tape DA
External expansion joint tape (factory standard)Other types of joint tape available on request!Also available as per factory standards, DIN 18541 and DIN 18541 BV
