KRASOflex Mounting Clamps
KRASOflex Mounting Clamps
for joint tapes and plates up to 20 cm high
|

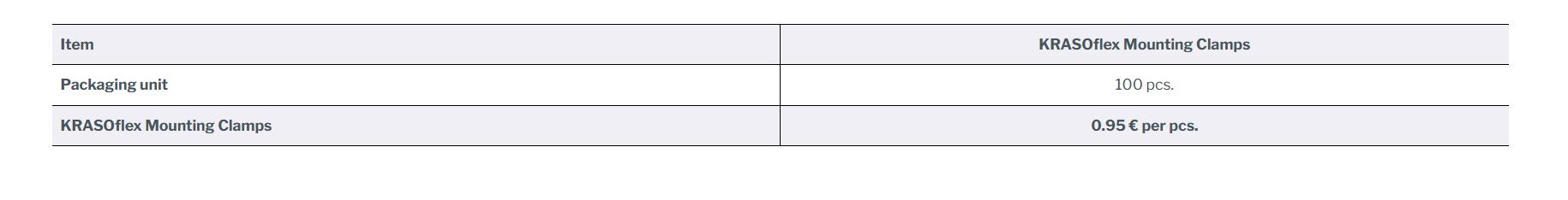

Type / Item |
KRASO Mounting Clamps | KRASO Mounting Clamps for precast walls |
|
Packing unit |
100 pcs. / bag |
100 pcs. / bag |
|
KRASOflex Mounting Clamps |
1,20 € |
1,20 € |
KRASOflex 155
stabilised and bendible construction joint tape for installation on the upper reinforcement layer, only 3 cm of integration into the concrete required during the
first concreting step, optimal visual check due to visual control strip in different colour, with punched eyelets | DafStB waterproof concrete guideline: stress class 1 + 2
The joint plate made of plastic + As stable as a joint plate - flexible like a joint tape!
Thanks to the inner plastic core,
the KRASOflex 155 can easily be bent and adjusted+
For installation on the upper reinforcement layer – only 3 cm of integration into the concrete required during the
first concreting step. Optimal visual check due to visual control strip in different colour+
Including joint connector set for a quick and easy connection of joints+ Easy fixation due to punched eylets+
DafStB waterproof concrete guideline: stress class 1 + 2
KRASOflex Duo-Fix 150 “plus“
stable construction joint tape to install on the upper reinforcement layer,
only 3 cm of integration into the concrete required during the
first concreting step, optimal visual control due to visual control strip in different colour, with punched eyelets | DafStB waterproof concrete guideline: stress class 1 + 2
The
technically high-quality construction joint tape
+
Stable like a joint plate – flexible like a joint tape!
KRASOflex Duo-Fix 150 „plus“ can easily be adapted and bent due to the inner core reinforced with steel+ For installation on the upper reinforcement layer -
only 3 cm of integration into the concrete required during the
first concreting step. Optimal visual control due to visual control strip in different colour
+ Splicing can be created easily
with the KRASOflex Sealing Strips on the construction site+ Easy fixation due to punched eyelets+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASOflex Star Tube System
universally usable for joint or corner areas of wall elements | DafStB waterproof concrete guideline: stress class 1 + 2The star tube of the future: tight, stable, sustainable+ The KRASOflex Star Tube revolutionises the use of desired crack elements in precast and in-situ concrete walls+ Simple installation without inner tube:Low weightNo more slipping of the inner tube and no more cavities that cannot be filledSustainable: up to 35 % less ressource consumption+ Tight and stable:Rigid and soft in oneMore stable due to ribbingStronger anchorage due to fixation of the crack control lip+ With general building authority test certificate (abP) P-MPA-BS-240049 (water pressure up to 2 bar)+ MPA-tested up to 5 bar+ Factory punched everey 20 cm: slotted hole for optionally available mounting system+ Factory slotted: 15 x 50 mm. For installation on joint tape or joint plate+ DafStB waterproof concrete guideline: stress class 1 + 2
