KRASOflex AFW 150
KRASOflex AFW 150
construction joint wall element for vertical construction joints in the wall/wall joint area | DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:

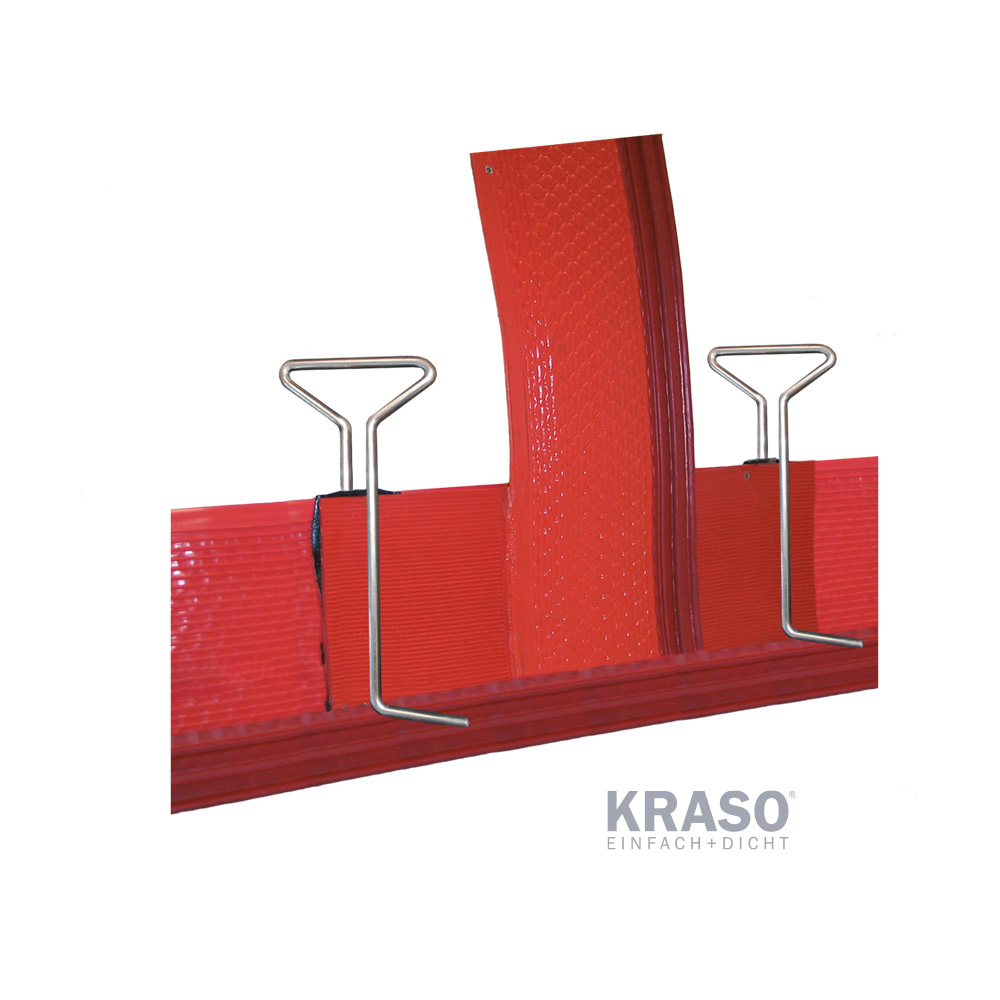

KRASOflex AFW 150 incl. 50 cm fixing bracket and 2 pcs. KRASOflex Mounting Clamps for easy fixation
KRASOflex AFW 150 incl. 50 cm fixing bracket and 2 pcs. KRASOflex Mounting Clamps for easy fixation
Downloads
|
Type / Item |
KRASOflex AFW |
||||||
|
Length |
2,50 m |
2,75 m |
3,00 m |
3,50 m |
4,00 m |
4,50 m |
5,00 m |
|
KRASOflex AFW 150 |
70 € |
74 € |
78 € |
83 € |
89 € |
96 € |
102 € |
|
KRASOflex AFW 155 |
63 € |
67 € |
70 € |
75 € |
80 € |
86 € |
92 € |
KRASO Mounting Clamps
for joint tapes up to 20 cm highAccessories: + KRASO Mounting Clamp for the impact joint and for easy and secure installation on the upper reinforcement layer. + KRASO Mounting Clamp for precast walls for impact joints and for easy and secure installation on the upper reinforcement layer.
KRASO Sealing Strip
for joint tape corner areas, self-adhesive Accessories: + For a secure sealing of KRASO Duo-Fix "plus" and joint tape corner areas + Simply tight with self-adhesive sealing strips
KRASOflex Duo-Fix 150 “plus“
stable construction joint tape to install on the upper reinforcement layer,
only 3 cm of integration into the concrete required during the
first concreting step, optimal visual control due to visual control strip in different colour, with punched eyelets | DafStB waterproof concrete guideline: stress class 1 + 2
The
technically high-quality construction joint tape
+
Stable like a joint plate – flexible like a joint tape!
KRASOflex Duo-Fix 150 „plus“ can easily be adapted and bent due to the inner core
+ For installation on the upper reinforcement layer -
only 3 cm of integration into the concrete required during the
first concreting step. Optimal visual control due to visual control strip in different colour
+ Splicing can be created easily
with the KRASOflex Sealing Strips on the construction site+ Easy fixation due to punched eyelets+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASOflex 155
stabilised and flexible construction joint tape for installation on the upper reinforcement layer, only 3 cm of integration into the concrete required during the
first concreting step, optimal visual check due to visual control strip in different colour, with punched eyelets | DafStB waterproof concrete guideline: stress class 1 + 2
The joint plate made of plastic + As stable as a joint plate - flexible like a joint tape!
Thanks to the inner plastic core,
the KRASOflex 155 can easily be bent and adjusted+
For installation on the upper reinforcement layer – only 3 cm of integration into the concrete required during the
first concreting step. Optimal visual check due to visual control strip in different colour+
Including splicing set for a quick and easy splicing+
DafStB waterproof concrete guideline: stress class 1 + 2
KRASOflex Star Tube System
universally usable for joint or corner areas of wall elements | DafStB waterproof concrete guideline: stress class 1 + 2The star tube of the future: tight, stable, sustainable+ The KRASOflex Star Tube revolutionises the use of desired crack elements in precast and in-situ concrete walls+ Simple installation without inner tube:Low weightNo more slipping of the inner tube and no more cavities that cannot be filledSustainable: up to 35 % less ressource consumption+ Tight and stable:Rigid and soft in oneMore stable due to ribbingStronger anchorage due to fixation of the crack control lip+ With general building authority test certificate (abP) P-MPA-BS-240049 (water pressure up to 2 bar)+ MPA-tested up to 5 bar+ Factory punched everey 20 cm: slotted hole for optionally available mounting system+ Factory slotted: 15 x 50 mm. For installation on joint tape or joint plate+ DafStB waterproof concrete guideline: stress class 1 + 2
