KRASOflex® 155
KRASOflex® 155
stabilised and flexible construction joint tape for installation on the upper reinforcement layer, only 3 cm of integration into the concrete required during the
first concreting step, optimal visual check due to visual control strip in different colour, with punched eyelets | DafStB waterproof concrete guideline: stress class 1 + 2
+ As stable as a joint plate - flexible like a joint tape! Thanks to the inner plastic core, the KRASOflex 155 can easily be bent and adjusted
+ For installation on the upper reinforcement layer – only 3 cm of integration into the concrete required during the first concreting step. Optimal visual check due to visual control strip in different colour
+ Including splicing set for a quick and easy splicing
+ DafStB waterproof concrete guideline: stress class 1 + 2
The joint plate made of plastic
+ As stable as a joint plate - flexible like a joint tape! Thanks to the inner plastic core, the KRASOflex 155 can easily be bent and adjusted
+ For installation on the upper reinforcement layer – only 3 cm of integration into the concrete required during the first concreting step. Optimal visual check due to visual control strip in different colour
+ Including splicing set for a quick and easy splicing
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASOflex® 155, splicing set consisting of plastic mounting bracket, plastic adhesive, 2 joint tape clips
KRASOflex® 155, splicing set consisting of plastic mounting bracket, plastic adhesive, 2 joint tape clips
Downloads
Produktinformation
Prüfzeugnis
Montageanleitung
-
Produktinfo_KRASOflex_155 (3.34 MiB)
-
Prüfbericht_KRASOflex_155_Stossverbinder (865.13 KiB)
-
Prüfbericht_KRASOflex_155 (6.89 MiB)
-
Prüfzeugnis_KRASOflex_155_überlappender_Stoß (973.7 KiB)
-
KRASOflex_155_Montageanleitung (1.25 MiB)
|

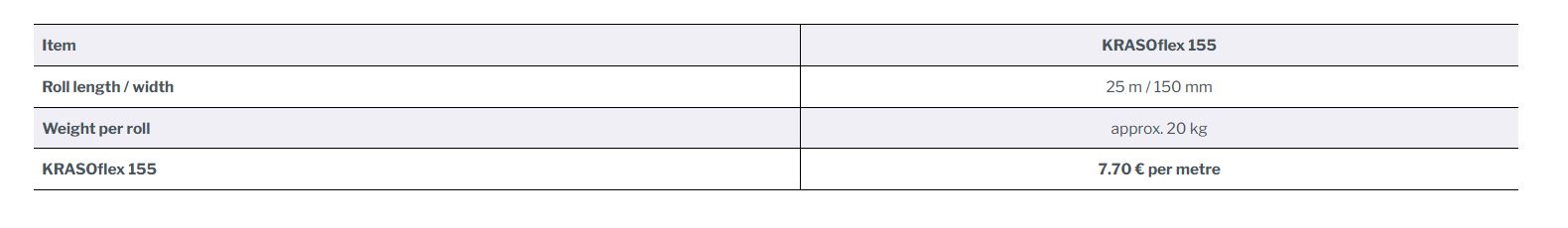

Type / Item |
KRASOflex® 155 |
|
Roll length / width |
25 m / 150 mm |
|
Weight per roll |
approx. 20 kg |
KRASO Building Expansion Joint T1
Base plate and wall separate Corner moulding: External expansion joint tape type AD 320 (beneath the base plate)
on external expansion joint tape type AD 320 (wall) as well as on KRASO Duo-Fix 150 “plus”
as connecting pieces, for circumferential use of KRASO Duo-Fix 150 “plus”, anchor lengths 50 cm each
(Expansion joint tapes in line with factory standard)
KRASO AFW 150
construction joint wall element for vertical construction joints in the joint area wall/wallSecure sealing of corner- and joint areas + KRASO AFW 150 (construction joint wall element) for vertical construction joints in the joint area wall/wall.+ Simply put it over the installed KRASO Duo-Fix 150 "plus" and fix it in place with the KRASO Mounting Clamps supplied. On-side cutting isn´t necessary!
KRASO Mounting Clamps
for joint tapes up to 20 cm highAccessories: + KRASO Mounting Clamp for the impact joint and for easy and secure installation on the upper reinforcement layer. + KRASO Mounting Clamp for precast walls for impact joints and for easy and secure installation on the upper reinforcement layer.
KRASO Sealing Strip
for joint tape corner areas, self-adhesive Accessories: + For a secure sealing of KRASO Duo-Fix "plus" and joint tape corner areas + Simply tight with self-adhesive sealing strips
