KRASO Yard-/Parking Level Drain
KRASO Yard-/Parking Level Drain
for installation in areas with traffic
The high-performance drain for e.g. underground car parks
+ KRASO Yard-/Parking Level Drain with 4,3 l/s drainage capacity according to DIN EN 1253
+ With frost proof odour barrier and removable sand trap basket
+ Load class A up to 1,5 t or load class B up to 12,5 t
+ Connection either for KG/HT or KG 2000 pipes DN 110
+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!
+ DafStB waterproof concrete guideline: stress class 1 + 2, with flange DIN 18533 W1-E
Info
Scope of supply:
KRASO Yard-/Parking Level Drain Type 1,5 with frost proof odour barrier, removable sand trap basket, with slot grate approx. 24 x 24 cm, cast iron, load class A up to 1,5 t, vertical discharge • KRASO Yard-/Parking Level Drain Type 12,5 with frost proof odour barrier, removable sand trap basket, with support frame made of eco-cast, 26 x 26 cm, with slot grate, load class B up to 12,5 t, vertical discharge
KRASO Yard-/Parking Level Drain Type 1,5 with frost proof odour barrier, removable sand trap basket, with slot grate approx. 24 x 24 cm, cast iron, load class A up to 1,5 t, vertical discharge • KRASO Yard-/Parking Level Drain Type 12,5 with frost proof odour barrier, removable sand trap basket, with support frame made of eco-cast, 26 x 26 cm, with slot grate, load class B up to 12,5 t, vertical discharge
|

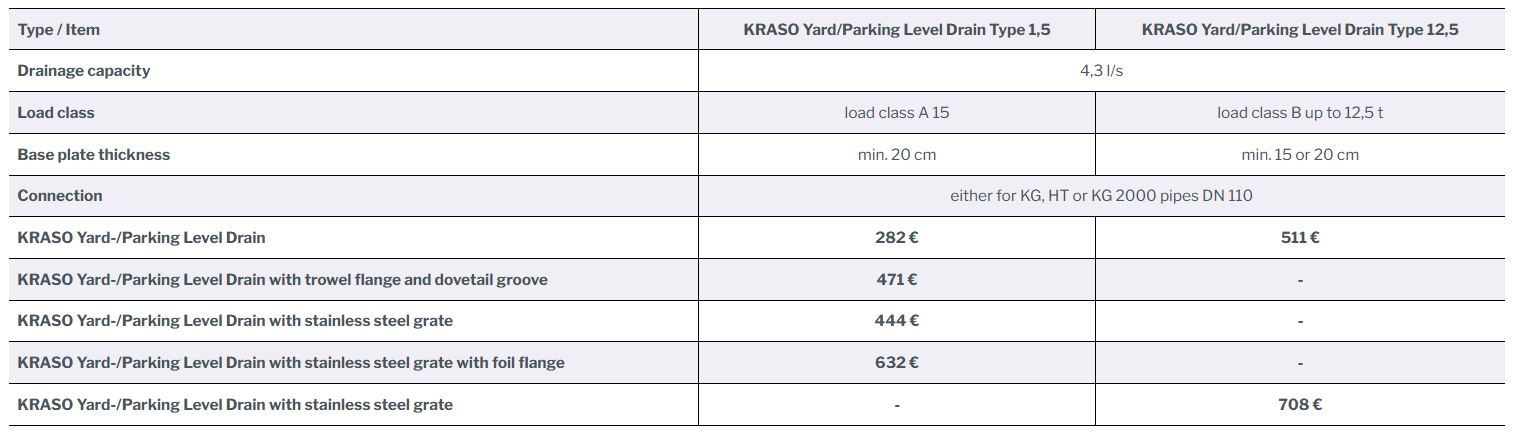

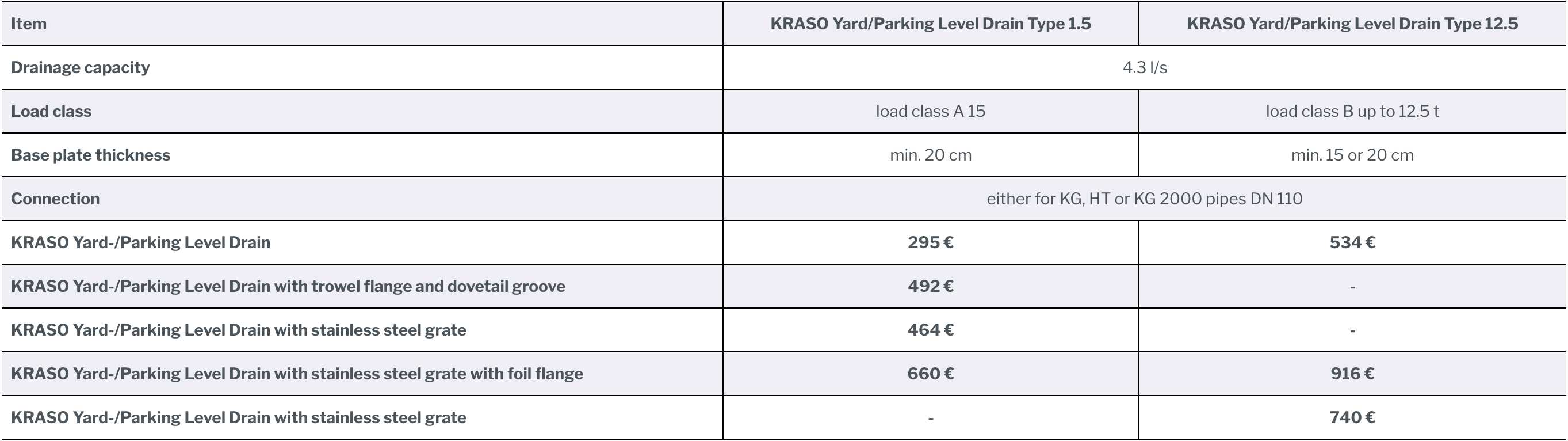

Type / Item |
KRASO Yard/Parking Level Drain Type 1,5 |
KRASO Yard/Parking Level Drain Type 12,5 |
|
Drainage capacity |
4,3 l/s |
|
|
Load class |
load class A 15 |
load class B up to 12,5 t |
|
Base plate thickness |
min. 20 cm |
min. 15 or 20 cm |
|
Connection |
either for KG, HT or KG 2000 pipes DN 110 |
|
|
KRASO Yard-/Parking Level Drain |
282 € |
511 € |
|
KRASO Yard-/Parking Level Drain with trowel flange and dovetail groove |
471 € |
- |
|
KRASO Yard-/Parking Level Drain with stainless steel grate | 444 € |
- |
|
KRASO Yard-/Parking Level Drain with stainless steel grate with foil flange |
632 € |
- |
|
KRASO Yard-/Parking Level Drain with stainless steel grate |
- |
708 € |
KRASO Floor Drain for KG 2000
according to DIN EN 1253 - for the installation in interior areas without traffic, for the drainage of grey water, drainage capacity: 1,79 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
Inside and outside - tight and dry
+ For interior areas, basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of pressing water! + IAF-tested: radon-tight!
+ Walkable and fit for traffic, frost proof and odour tight, backwater safe and thermally insulated: various versions for different needs!
+ High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic or stainless steel grates+ Additional accessories available as completion for individual needs+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Floor Drain
according to DIN EN 1253 - for the installation in interior areas without traffic, for the drainage of grey water, drainage capacity: 1,79 l/s, with water pressure tight surrounding KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange, we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
Inside and outside - tight and dry
+ For interior areas, basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of water! + IAF-tested: radon-tight!
+ Walkable and fit for traffic, frost proof and odour-tight, backwater safe and thermally insulated: various versions for different needs!
+ High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic or stainless steel grates+ Additional accessories available as completion for individual needs+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Basement Drain for KG 2000
for installation in areas without traffic and for the connection of up to 3 intake pipes, for the drainage of grey water, drainage capacity: 1,8 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal, lateral KRASO Drainage Bows DN 110 with KRASO 3 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
For a dry basement
+ KRASO Basement Drain with integrated, removable backwater and odour stopper!
+ For the connection of up to 3 intake pipes+ Drainage capacity: 1,8 l per second!
+ With height adjustable and rotatable insert frame from 30 to 60 mm+ Either with plastic or stainless steel grate+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!
+ Also available in KG 2000: made of polypropylene (PP), mineral- filled, smooth walls, long-lasting
+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Basement Drain
for the installation in areas without traffic and for the connection of up to 3 intake pipes. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
For a dry basement
+ KRASO Basement Drain with integrated, removable backwater and odour stopper!
+ For the connection of up to 3 intake pipes+ Drainage capacity: 1,8 l per second!
+ With height-adjustable and rotatable insert frame from 30 to 60 mm+ Either with plastic or stainless steel grate+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!
+ Also available in KG 2000: made of polypropylene (PP), mineral- filled, smooth walls, long-lasting
+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Floor Drain Type FS - RS - frost proof - backwater safe
for the installation in exterior areas without traffic. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50.
| DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
Frost proof - backwater safe
+ For installation in outdoor areas without traffic, for the drainage of grey water, drainage capacity:0,4 l/s.+ Winterpoof due to frost proof backwater double stopper+ PP-MD pipe (DIN 14758): high impact strength and durability+ Screwable stainless steel grate: class K3 up to max. 300 kg+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
