KRASO Y-Wrench


KRASO Y-Wrench
Y-Wrench to open / close the KDS closure cover, available for KRASO Cable Penetration KDS 90 and KDS 150
Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150
+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.
+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
Info
Scope of supply:
KRASO Y-Wrench 90 or 150
KRASO Y-Wrench 90 or 150
Downloads
KRASO Y-Schlüssel

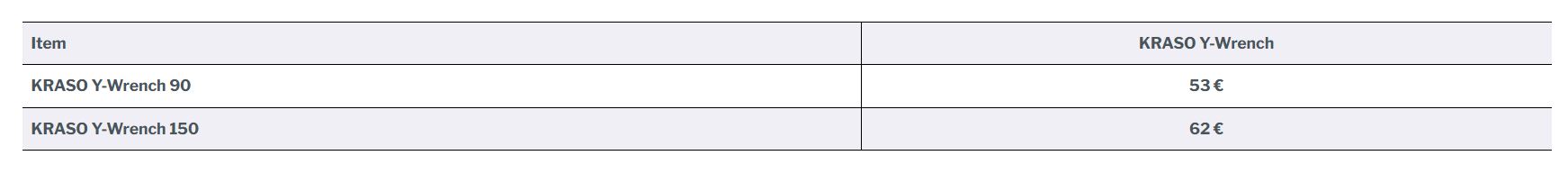

Type / Item |
KRASO Y-Wrench |
KRASO Y-Wrench 90 |
53 € |
KRASO Y-Wrench 150 |
62 € |
