KRASO WP-DUO

heat pump connection universal, above-ground for supply or reflux as well as power lines and control cables

The above-ground heat pump connection

+ The fast and simple solution for the heat pump connection: air-water

+ Easy installation by one person freehand: core drilling of 100 mm each for supply and reflux

+ For all wall types (plaster, clinker, timber frame construction) and wall thicknesses up 60 cm

+ Insulated system: avoids thermal bridges and fulfils the requirements of the German Building Energy Act (GEG), soundproof

+ Optionally extendable wall thickness

+ Protection against splash water and driving rain proof

+ Separate installation of supply and reflux, power lines and control cables

+ Metal components made of non-corrosive stainless steel V2A

+ Protection against bird picking

+ For new buildings and rehabilitation

Info

Scope of supply:

2 pcs. KRASO WP-DUO

Downloads

KRASO WP-DUO

Montageanleitung WP-DUO

Produktinformation KRASO WP-DUO

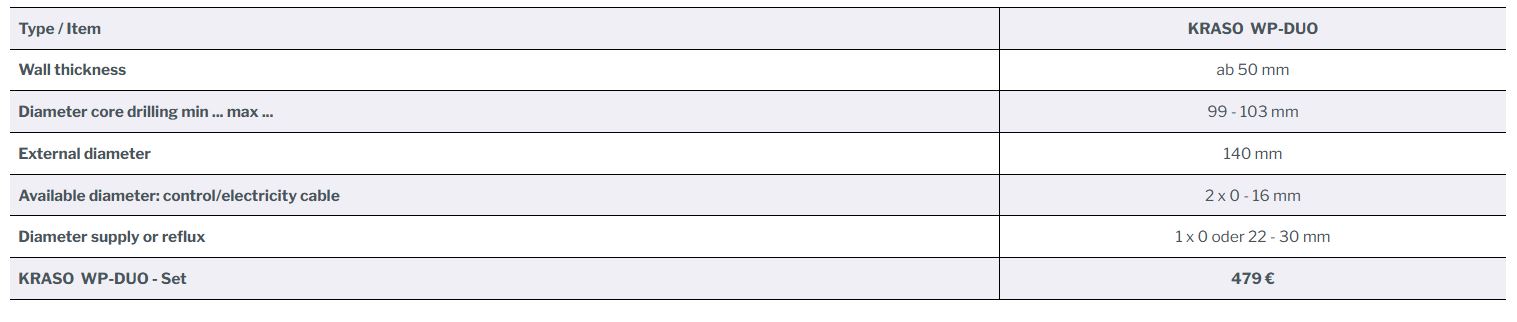

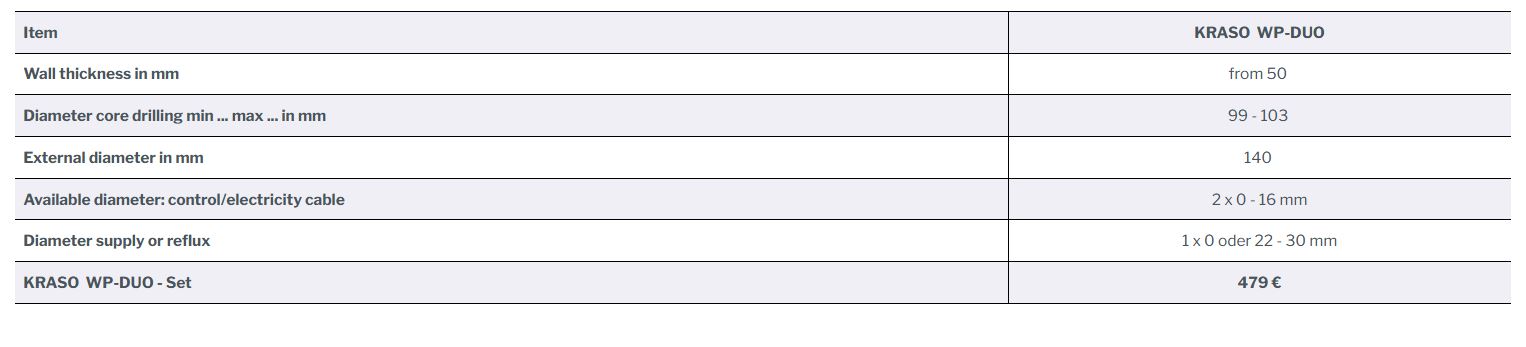

Type / Item	KRASO WP-DUO
Wall thickness	ab 50 mm
Diameter core drilling min ... max ...	99 - 103 mm
External diameter	140 mm
Available diameter: control/electricity cable	2 x 0 - 16 mm
Diameter supply or reflux	1 x 0 oder 22 - 30 mm
KRASO WP-DUO - Set	479 €
