KRASO Wall Penetration Type Universal for KG 2000
KRASO Wall Penetration Type Universal for KG 2000
in accordance with DIN EN 14758, for installation in waterproof concrete walls, for connection to KG 2000 pipes on both sides (Uni B for KG 2000) or for pipes to be pushed through (Uni D for KG 2000), with water pressure tight surrounding, thermally welded KRASO 4 Seal, with markings for a simple shortening to standard wall thicknesses on-site | DafStB waterproof concrete guideline: stress class 1 + 2
The proven wall penetration made of solid wall material
+ KRASO 4 Seal - MPA-tested up to 10 bar!
+ IAF-tested: radon tight!
+ Dimensionally and
pressure resistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG)
+ KRASO Type Universal B: with formed plug-in sleeve on both sides for the connection of
KG/HT pipes on both sides
+ KRASO Type Universal D: with integrated push-through sleeve
+ Markings for a simple shortening on-site to standard wall thicknesses
+ Including two KRASO Covers as installation aid
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASO Type Universal B for KG 2000 formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid or
KRASO Type Universal B for KG 2000 formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid or
KRASO Type Universal D for KG 2000 with integrated push-through sleeve, 2 KRASO Covers as an installation aid
Further diameters and wall thicknesses available on request!
Downloads
KRASO Wanddurchführung Typ Universal für KG 2000
|

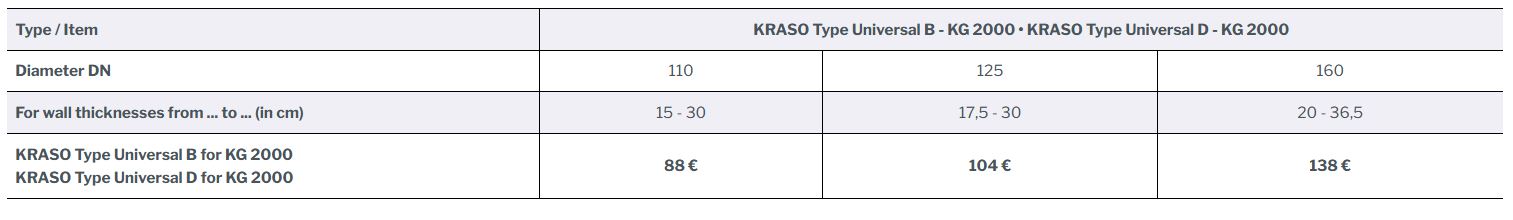

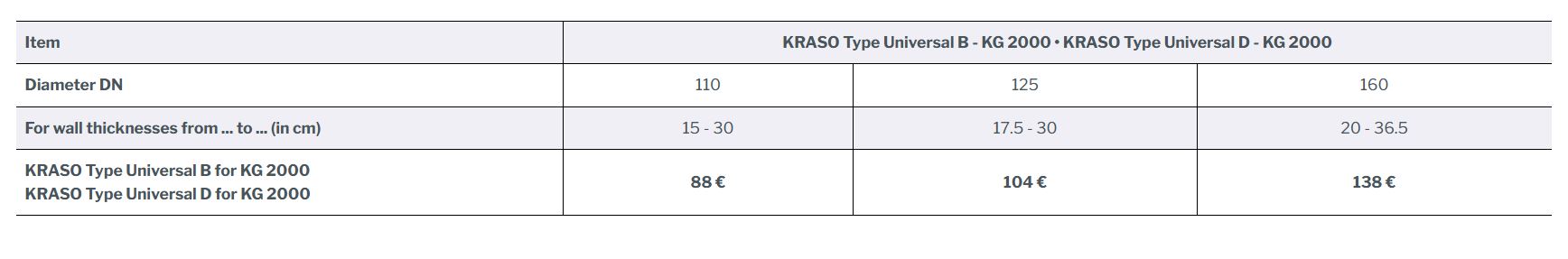

Type / Item |
KRASO Type Universal B - KG 2000 • KRASO Type Universal D - KG 2000 |
||
|
Diameter DN |
110 |
125 |
160 |
|
For wall thicknesses from ... to ... (in cm) |
15 - 30 |
17,5 - 30 |
20 - 36,5 |
|
KRASO Type Universal B for KG 2000 |
88 € |
104 € |
138 € |
