KRASO Wall Penetration Type FR
KRASO Wall Penetration Type FR
in accordance with DIN EN 1401, for installation in waterproof concrete walls, for connection to KG/HT pipes on both sides, with water pressure tight surrounding KRASO 4 Seal, formed plug-in sleeve on one side, one-sided spigot and 2 KRASO Covers as an installation aid
| DafStB waterproof concrete guidline: Stress class 1 + 2
Always the right direction of flow
+ Thanks to the KRASO Wall Penetration Type FR waste water always maintains the correct direction of flow! Unnecessary edges are prevented. Blocked pipes: impossible!
+ The flexible and yet watertight connection to the pipe system means that stresses due to settling of the KG lines are prevented!
+ Basements and cellars remain dry thanks to the up to 10 bar water pressure tight surrounding KRASO 4 Seal and are protected from radon.
+ Radon-tight: prevents from a harmful to health concentration of the radioactive noble gas!
+ Made of solid wall material! Also available as KG 2000 made of polypropylene (PP), mineral-filled, smooth walls, long-lasting.
+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).
+ DafStB waterproof concrete guidline: Stress class 1 + 2
+ DafStB waterproof concrete guidline: Stress class 1 + 2
Info
Scope of supply:
KRASO Type FR, 2 KRASO Covers as an installation aid
KRASO Type FR, 2 KRASO Covers as an installation aid
Downloads
Produktinformation
Datenblatt
Prüfzeugnis
-
Datenblatt_KRASO_Typ_FR_zv (234.43 KiB)
-
Prüfbericht_KRASO_Vierstegdichtung (606.1 KiB)
-
Prüfbericht_KRASO_Vierstegdichtung_PVC (310.56 KiB)
|

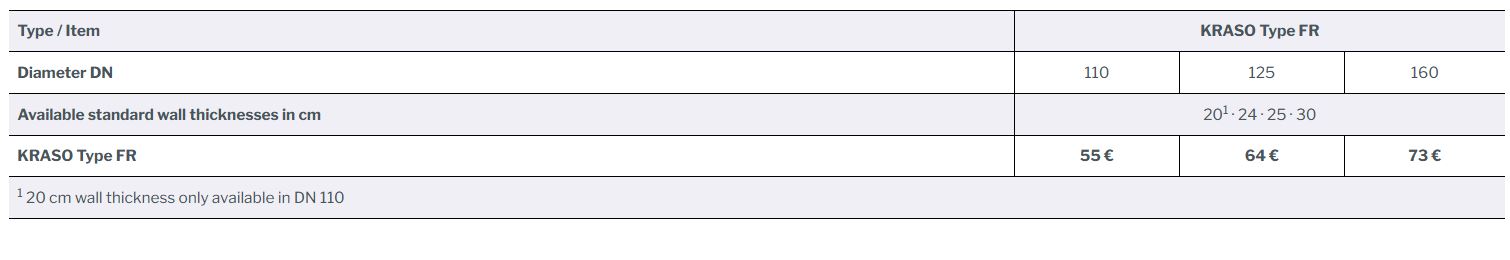

Type / Item |
KRASO Type FR |
||
|
Diameter DN |
110 |
125 |
160 |
|
available standard wall thicknesses in cm |
201 · 24 · 25 · 30 |
||
|
1 20 cm wall thickness only available in DN 110 |
|||
