KRASO Wall Penetration Type DFW for KG 2000

Diameter DN
Available standard wall thicknesses
Design

KRASO Wall Penetration Type DFW for KG 2000

in accordance with DIN EN 14758, for installation into triple walls, for the connection to KG 2000 pipes on both sides, with formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid | DafStB waterproof concrete guideline: stress class 1 + 2


Easy and secure sealing in precast walls


+ For the installation in triple wall elements: stop occurring water at the outer shell!

+ KRASO Type DFW 4: KRASO 2 Seal on both sides - MPA-tested up to 3.5 bar!

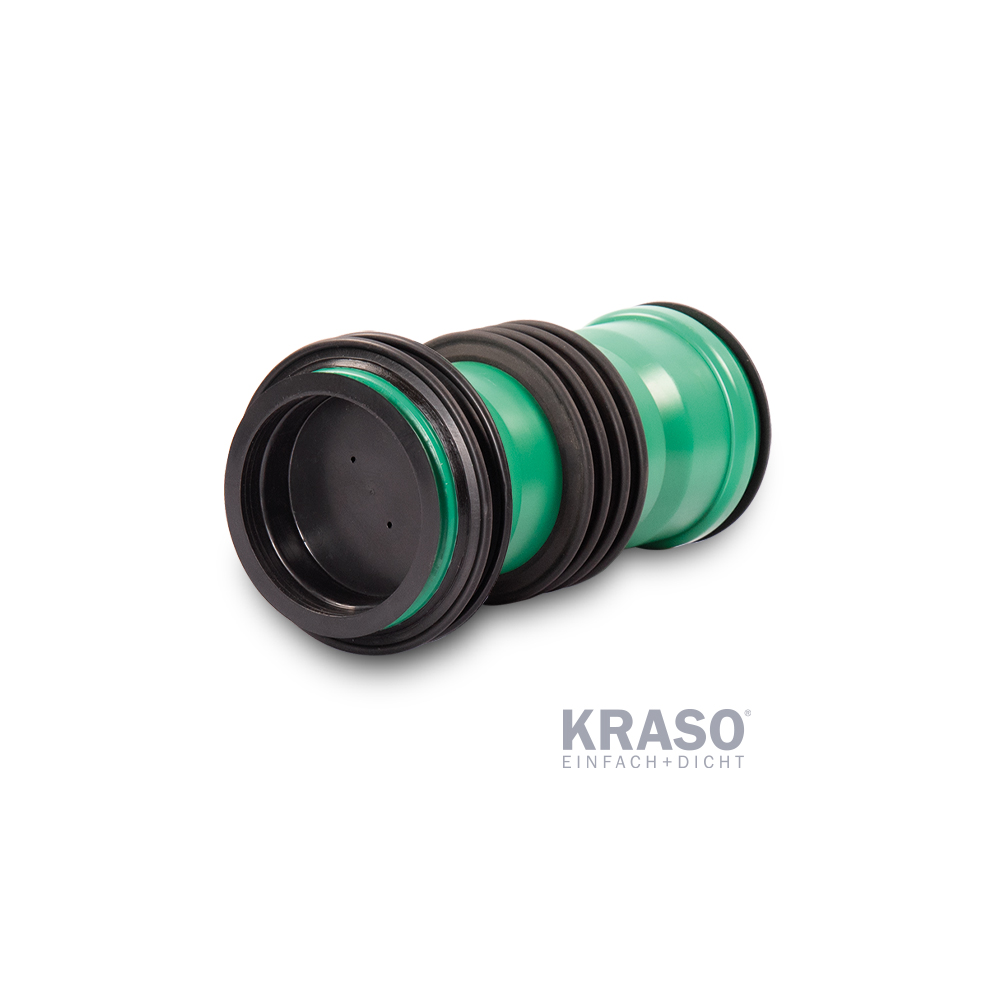

+ KRASO Type DFW 6: KRASO 2 Seal on one side, central KRASO 4 Seal - MPA-tested up to 10 bar!

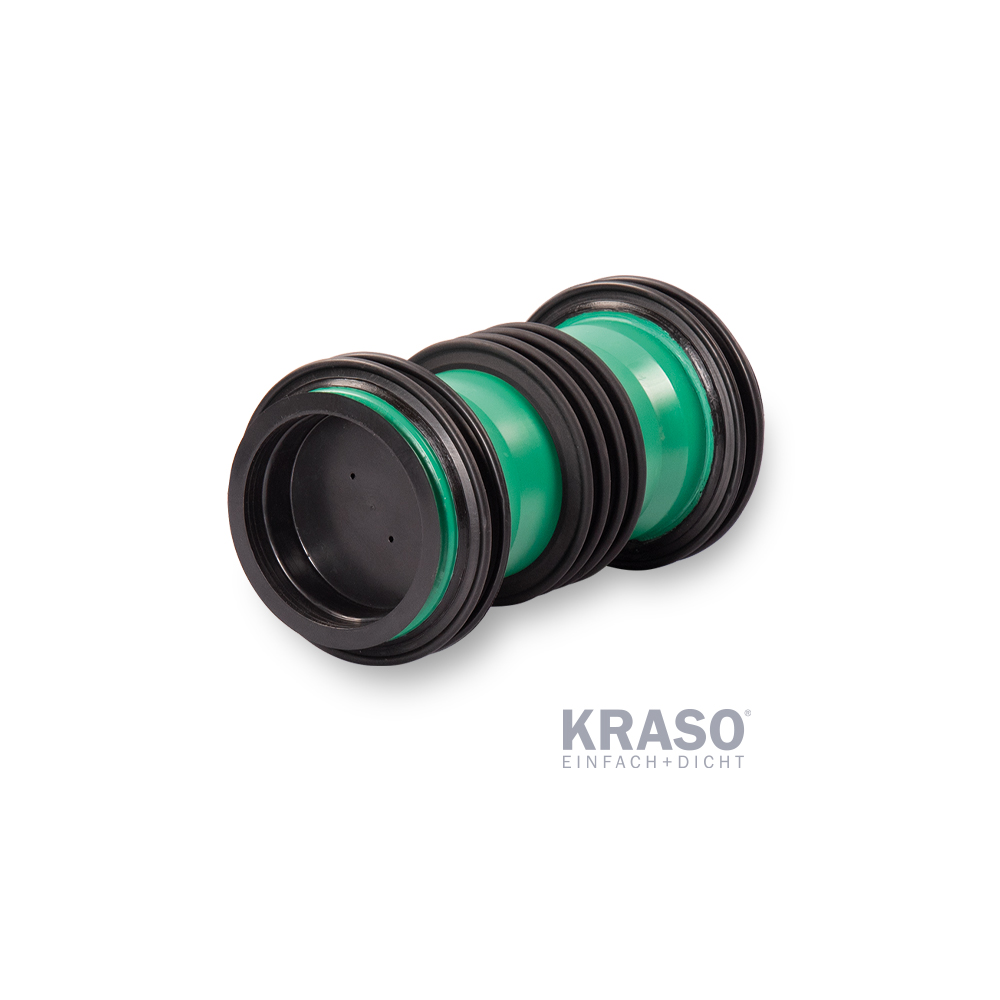

+ KRASO Type DFW 8: KRASO 2 Seal on both sides, central KRASO 4 Seal - MPA-tested up to 10 bar!

+ IAF-tested: radon-tight!

+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)

+ DafStB waterproof concrete guideline: stress class 1 + 2

Type / Item

KRASO Type DFW - KG 2000

Diameter DN

110

125

160

200

250

3151,2

Available standard wall thicknesses in cm

20 · 24 · 25 · 30 · 35 · 36,5 · 40 · 45 · 50

KRASO Type DFW 4 for KG 2000

95 €

104 €

147 €

216 €

368 €

609 €

KRASO Type DFW 6 for KG 2000

104 €

116 €

161 €

239 €

409 €

673 €

KRASO Type DFW 8 for KG 2000

130 €

144 €

202 €

298 €

509 €

841 €

Surcharge: special dimensions up to 50 cm

21 €

34 €

1 Only usable as push-through sleeve because the plug-in length after EN 1401-1 is not suitable for double-sided usage

2 For product-technical reasons wall thickness 20 cm with KRASO 3 Seal

KRASO Wall Penetration Type B for KG 2000
in accordance with DIN EN 14758, for installation in waterproof concrete walls for connection to KG 2000 pipes, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeves on both sides, 2 KRASO Covers as an installation aid | DafStB waterproof concrete guideline: stress class 1 + 2 The proven wall penetration made of solid wall material + KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ Dimensionally and pressure-resistant solid wall material: low abrasion, easy installation at low temperatures + In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)+ Also available as KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting+ Formed plug-in sleeve on both sides for connection to KG/HT pipes+ Including two KRASO Covers as installation aid!+ Also available as thermally insulated wall penetration! + DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type B
in accordance with DIN EN 1401, for connection to KG/HT pipes on both sides, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guideline: stress class 1 + 2The proven wall penetration made of solid wall material + KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ Dimensionally and pressure-resistant solid wall material: low abrasion, easy installation at low temperatures + In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)+ Also available in KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting+ Formed plug-in sleeve on both sides for connection to KG/HT pipes+ Including two KRASO Covers as an installation aid+ Also available as thermally insulated wall penetration! + DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Casing Type DFW/FE - triple wall
- specially made for precast factories -for the installation into triple walls, thick-walled plastic casing true diameter for concreting, as a recess for retrofit installation of pipes or cables using a sealing insert (not included in the scope of supply), water pressure tight surrounding KRASO 2 Seal on both sides (KRASO Type DFW/FE 4), KRASO 2 Seal on one side and water pressure tight surrounding KRASO 4 Seal in the middle (KRASO Type DFW/FE 6), KRASO 2 Seal on both sides and central water pressure tight surrounding KRASO 4 Seal (KRASO Type DFW/FE 8), 2 KRASO Covers as an installation aid, ID = InternalDiameter of true diameter casing | DafStB waterproof concrete guideline: stress class 1 + 2 Easy and secure sealing in precast walls+ For the installation in triple wall elements: stop occuring water at the outer shell+ KRASO Type DFW 4: KRASO 2 Seal on both sides - MPA-tested up to 3,5 bar+ KRASO Type DFW 6: KRASO 2 Seal on both sides, central KRASO 4 Seal - MPA-tested up to 10 bar!+ KRASO Type DFW 8: KRASO 2 Seal on both sides, central KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ Pipe and pipe-material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type DFW
triple wall - specially made for precast factories -in accordance with DIN EN 1401, for the installation in triple walls, for connection to KG/HT pipes on both sides, with formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid | DafStB waterproof concrete guideline: stress class 1 + 2Easy and secure sealing in precast walls + For the installation in triple wall elements: stop occurring water at the outer shell! + KRASO Type DFW 4:  KRASO 2 Seal on both sides - MPA-tested up to 3.5 bar!+ KRASO Type DFW 6: KRASO 2 Seal on one side, central KRASO 4 Seal - MPA-tested up to 10 bar!+ KRASO Type DFW 8: KRASO 2 Seal on both sides, central KRASO 4 Seal - MPA-tested up to 10 bar! + IAF-tested: radon-tight!+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000) + DafStB waterproof concrete guideline: stress class 1 + 2
