KRASO Wall Penetration Type B

in accordance with DIN EN 1401, for installation in waterproof concrete walls for connection to KG/HT pipes on both sides, with water pressure tight surrounding KRASO 4 Seal, formed plug-in sleeves on both sides and 2 KRASO Covers as installation aid | DafStB waterproof concrete guidline: Stress class 1 + 2

The proven wall penetration made of solid wall material

+ With water pressure tight surrounding KRASO 4 Seal - MPA-tested up to 10 bar!

+ Radon tight: prevents from a harmful to health concentration of the radioactive noble gas!

+ Made of dimensionally and pressure stable solid wall material with low abrasion! Easy installation at low temperatures.

+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).

+ Also available as KG 2000: made of polypropylene (PP), mineral-filled, smooth walls, long-lasting.

+ Formed plug-in sleeve on both sides for connection to KG/HT pipes.

+ Including two KRASO Covers as installation aid.

+ KRASO Product Innovation: Type B as thermally insulated wall penetration!

+ DafStB waterproof concrete guidline: Stress class 1 + 2

Info

Scope of supply:

KRASO Type B, 2 KRASO Covers as installation aid

Downloads

Produktinformation

Produktinfo_KRASO_Wanddurchfuehrung_Typ_B (2.05 MiB)

Datenblatt

Datenblatt_KRASO_Typ_B (252.2 KiB)
Data_Sheet_KRASO_Wall_Penetration_Type_B (248.64 KiB)

Prüfzeugnis

Prüfbericht_KRASO_Vierstegdichtung (606.1 KiB)
Prüfbericht_KRASO_Vierstegdichtung_PVC (310.56 KiB)

DWG-Dateien

DWG_KRASO_Typ_B_DN_160_20er_Wand (396.66 KiB)

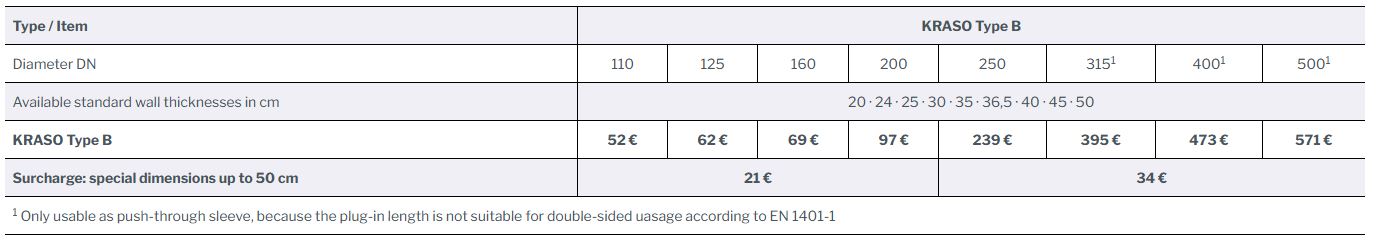

Type / Item	KRASO Type B
Diameter DN	110	125	160	200	250	315¹	400¹	500¹
available standard wall thicknesses in cm	20 · 24 · 25 · 30 · 35 · 36,5 · 40 · 45 · 50
¹ Only usable as push-through sleeve because the plug-in length after EN 1401-1 is not suitable for double-sided usage
