KRASO Wall Penetration Type B for KG 2000
KRASO Wall Penetration Type B for KG 2000
in accordance with DIN EN 14758, for installation in waterproof concrete walls for connection to KG 2000 pipes, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeves on both sides, 2 KRASO Covers as an installation aid | DafStB waterproof concrete guideline: stress class 1 + 2
The proven wall penetration made of solid wall material
+ KRASO 4 Seal - MPA-tested up to 10 bar!
+ IAF-tested: radon-tight!
+ Dimensionally and pressure-resistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ Also available as KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting
+ Formed plug-in sleeve on both sides for connection to KG/HT pipes
+ Including two KRASO Covers as installation aid!
+ Also available as thermally insulated wall penetration!
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASO Type B for KG 2000, 2 KRASO Covers as an installation aid
KRASO Type B for KG 2000, 2 KRASO Covers as an installation aid
Further diameters and wall thicknesses available on request!
Downloads
KRASO Wanddurchführung Typ B für KG 2000
|

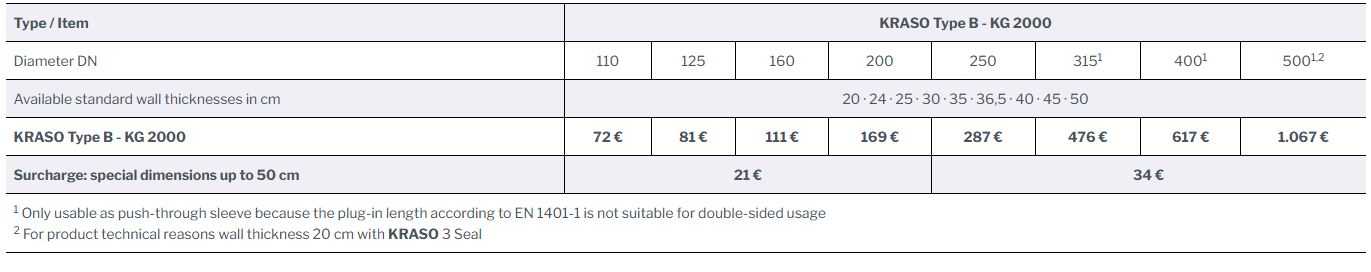

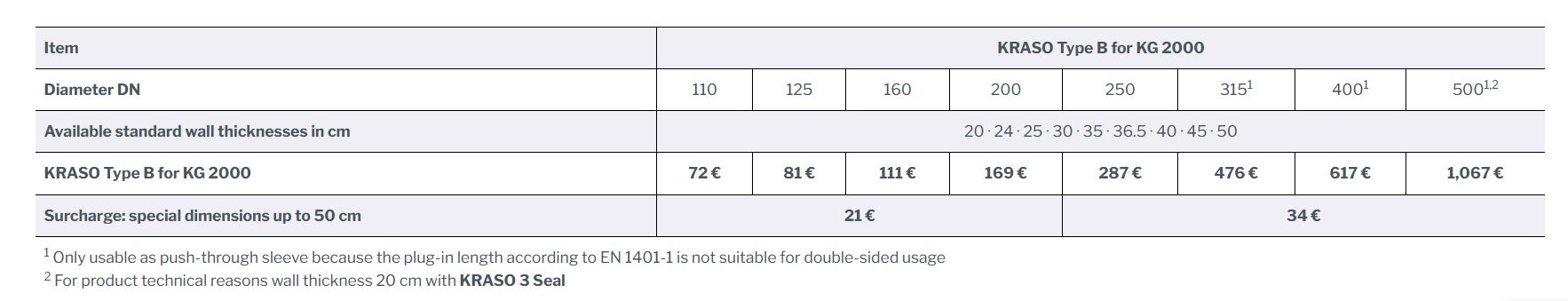

Type / Item |
KRASO Type B for KG 2000 |
|||||||
|
Diameter DN |
110 |
125 |
160 |
200 |
250 |
3151 |
4001 |
5001,2 |
|
Available standard wall thicknesses in cm |
20 · 24 · 25 · 30 · 35 · 36,5 · 40 · 45 · 50 |
|||||||
|
KRASO Type B for KG 2000 |
72 € |
81 € |
111 € |
169 € |
287 € |
476 € |
617 € |
1.067 € |
|
Surcharge: special dimensions up to 50 cm |
21 € |
34 € |
||||||
|
1 Only usable as push-through sleeve because the plug-in length according to EN 1401-1 is not suitable for double-sided usage 2 For product technical reasons wall thickness 20 cm with KRASO 3 Seal |
||||||||
KRASO Wall Penetration Type FR
in accordance with DIN EN 1401, for installation in waterproof concrete walls, for connection to KG/HT pipes on both sides | DafStB waterproof concrete guideline: stress class 1 + 2
Always the right direction of flow
+ One flow direction!+ Flexible yet watertight connection to the pipe system: stresses caused by settling of KG pipes are minimised!+ KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight+ Dimensionally and pressure resistant solid material: low abrasion, easy installation at low temperatures+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type FR for KG 2000
in accordance with DIN EN 14758, for installation in waterproof concrete walls for the connection to KG 2000 pipes on both sides, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeve on one side, one-sided spigot and 2 KRASO Covers as an installation aid
| DafStB waterproof concrete guideline: stress class 1 + 2
Always the right flow direction+ One flow direction!+ Flexible yet watertight connection to the pipe system: stresses caused by settling of KG pipes are minimised!+ KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ Dimensionally and pressure resistant solid wall material: low abrasion, easy installation at lower temperatures+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type FBV-FR
wall penetration for a compliant integration of fresh concrete composite films | DafStB waterproof concrete guideline: stress class 1 + 2
Always the right flow direction using FBV system
+ Wall Penetration for a compliant integration of fresh concrete composite films+ Independent from the manufacturer: fresh concrete composite films (FBV) from any manufacturer can be integrated into the system at our factory+ KRASO FBV Sealing Flange made of non-corrosive stainless steel V2A with 20 cm surrounding, square fresh concrete composite film+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Thanks to the KRASO Wall Penetration Type FR, waste water always maintains the correct flow direction! Unnecessary edges are prevented. Blocked pipes: impossible!
+ Due to the flexible yet watertight connection to the pipe system, stresses occurring caused by the setting of the KG pipes are minimised!
+ The basement remains dry and is protected against radon thanks to the up to 10 bar water pressure tight surrounding KRASO 4 Seal!+ Made of solid wall material! Also available in KG 2000 made of polypropylene (PP), mineral-filled, smooth walls, long-lasting+ DafStb waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type B - thermally insulated -
in accordance with DIN EN 14758, for installation in waterproof concrete walls, thermally welded KRASO 4 Seal on both sides, formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid and thermally insulated body surrounding approx. 5 cm | DafStB waterproof concrete guideline: stress class 1 + 2
The proven wall penetration made of solid wall material + KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested radon tight!+ Dimensionally and pressure-resistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)+ Also available in KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting+ Formed plug-in sleeve on both sides for connection to KG/HT pipes+ Including two KRASO Covers as installation aid!+ Also available as thermally insulated wall penetration!
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type Universal
in accordance with DIN EN 1401, for installation in waterproof concrete walls, for connection to KG/HT pipes on both sides (Uni B) or for KG/HT pipes to be pushed through (Uni D), with water pressure tight surrounding KRASO 4 Seal, with markings for a simple shortening on-site to standard wall thicknesses
| DafStB waterproof concrete guideline: stress class 1 + 2The proven wall penetration made of solid wall material+ KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon tight! + Dimensionally and
pressure resistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG)+ KRASO Type Universal B: with formed plug-in sleeve on both sides for the connection of KG/HT pipes on both sides+ KRASO Type Universal D: with integrated push-through sleeve+ Markings for a simple shortening on-site to standard wall thicknesses
+ Including two KRASO Covers as installation aid
+ DafStB waterproof concrete guideline: stress class 1 + 2
