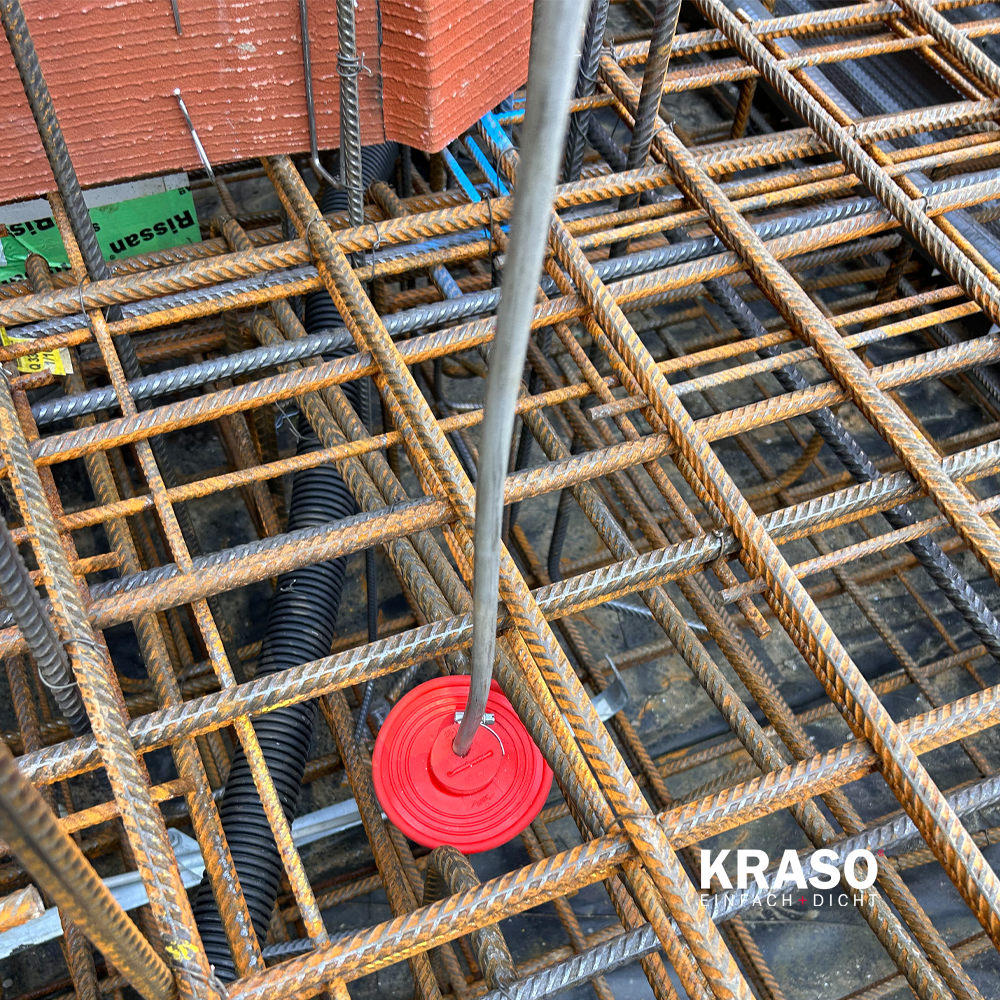

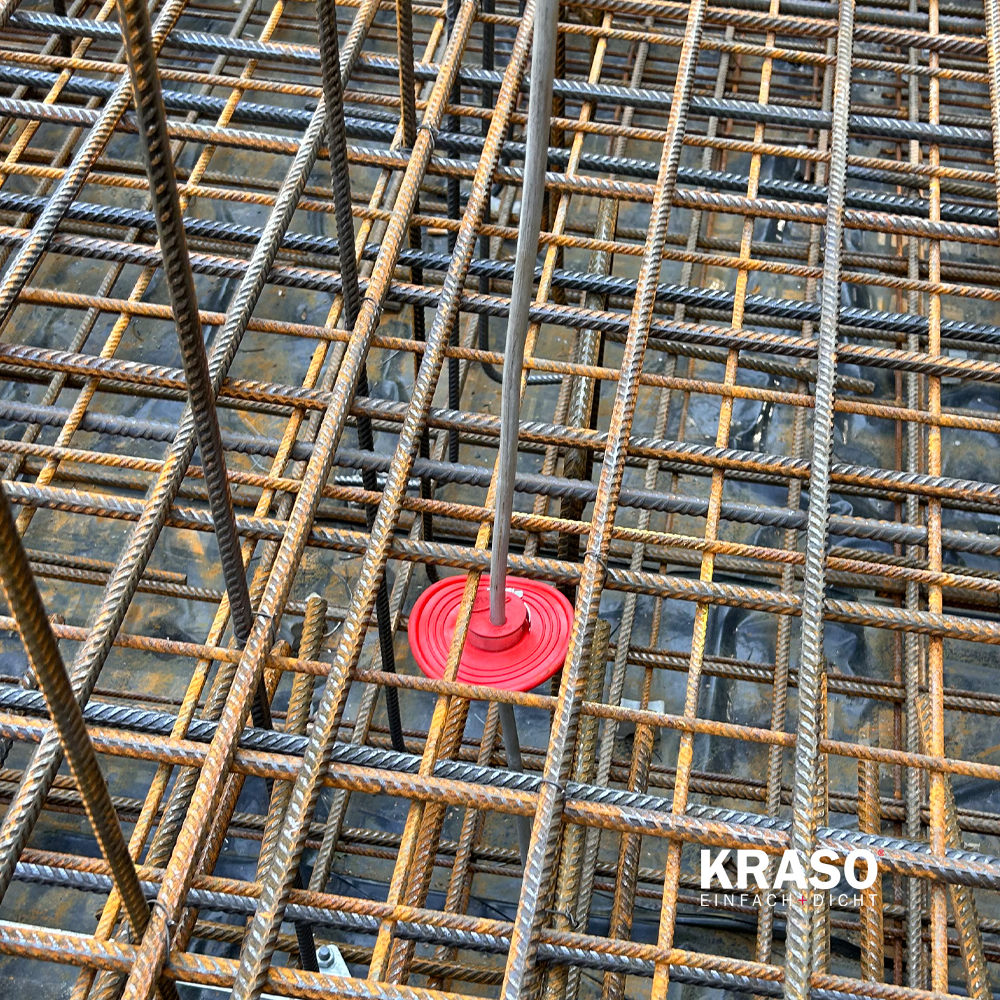

KRASO Wall Collar Lightning Protection Duo

for the waterproof integration of earthings with factory-closed openings
| DafStB waterproof concrete guideline: Stress class 1 + 2

+ for the waterproof integration of earthings with factory-closed openings: rectangular earthing tape (30 x 3,5 mm) and round earthing wire (ø 8 - 10 mm)

+ with Torque Control Wrench KRASO DKS: for safe and easy tightening of tension straps

+ MPA-tested up to 5 bar!

+ Methane gas resistant!

+ Radon tight – according to FHRK leaflet MB 101.

+ DafStB waterproof concrete guideline: Stress class 1 + 2

Info

Scope of supply:

KRASO Wall Collar Lightning Protection Duo with Torque Control Wrench KRASO DKS, 2 stainless steel clamping bands

Downloads

Produktinformation

Produktinfo_KRASO_Mauerkragen_Blitzschutz_Duo (847.95 KiB)

Prüfzeugnis

Prüfbericht_KRASO_Mauerkragen_Blitzschutz_Duo (842.89 KiB)

DWG-Dateien

DWG_KRASO_Mauerkragen_Blitzschutz_Duo (3.15 MiB)

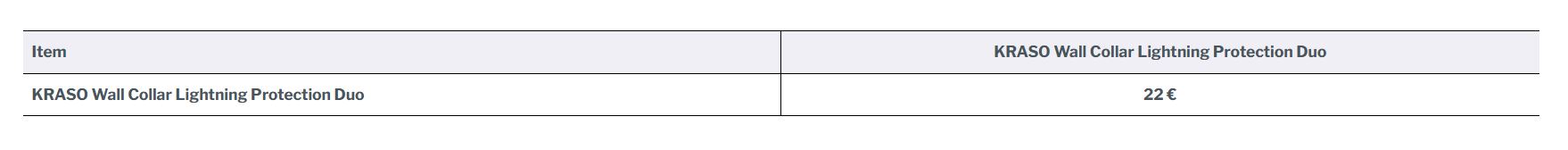

Type / Item

KRASO Wall Collar Lightning Protection Duo
