KRASO Wall Collar DKS Universal
KRASO Wall Collar DKS Universal
for water pressure tight connection of pipelines with a smooth surface (KG, KG 2000, HT) in waterproof concrete structures: base plate and wall,
MPA-tested up to 5 bar| DafStB waterproof concrete guideline: stress class 1 + 2
Simple, tight, universally usable!
+
The fast, simple and tight solution for sealing pipes in waterproof concrete structures –
base plate and wall
+
Stepless onion ring technology! Scope of application 10 - 50 mm or 50 - 90 mm!
For all smooth cables and pipes!
+
Water pressure tight connection of pipelines: MPA-tested up to 5 bar!
+
Radon-tight – according to FHRK leaflet MB 101!
+ Resistant to methane gas!
+
With Torque Control Wrench KRASO DKS: for safe and easy tightening of straps
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASO
Wall Collar DKS Universal with Torque Control Wrench KRASO DKS, 2 stainless steel straps
Downloads
KRASO Mauerkragen DKS Universal
|

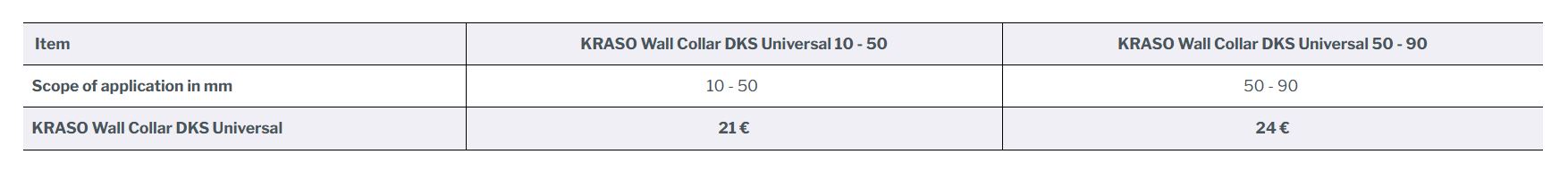

Type / Item |
KRASO Wall Collar DKS Universal 10 - 50 |
KRASO Wall Collar DKS Universal 50 - 90 |
|
Scope of application |
10 - 50 mm |
50 - 90 mm |
|
KRASO Wall Collar DKS Universal |
21 € |
24 € |
KRASO Wall Collar Lightning Protection Duo
for the water pressure tight integration of earthing cables with factory-sealed openings: square earthing strap (30 x 3,5 mm) and earthing wire (ø 8 – 10 mm) | DafStB waterproof concrete guideline: stress class 1 + 2
Double the benefit, half the storage!
+
With Torque Control Wrench KRASO DKS: for safe and easy tightening of straps
+
MPA-tested up to 5 bar!
+
Resistant to methane gas!
+
Radon-tight – according to FHRK leaflet MB 101!+
DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Collar
for water pressure tight connection of pipelines with a smooth surface (KG, KG 2000, HT) in waterproof concrete structures: base plate and wall, MPA-tested up to 5 bar | DafStB waterproof concrete guideline: stress class 1 + 2
Fast, simple and tight
+ The fast, simple and tight solution for sealing pipes in waterproof concrete structures –
base plate and wall
+
Water pressure tight connection of pipelines: MPA-tested up to 5 bar!
+ Radon-tight – according to FHRK leaflet MB 101!
+
Resistant to methane gas!
+
For all smooth pipes in DN 110, DN 125, DN 160 and DN 200!
+
Tool-free assembly – simple and fast: simply pull the KRASO Wall Collar over the pipe+
Including KRASO Cover as building period protective cover!
+
DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Floor Penetration Type BDF
for connection to KG/HT pipes, also available with KRASO Foil Flange,
oil- and bitumen resistant, surrounding approx. 15 cm. For the integration of
the foil flange, we recommend our adhesive and sealant KRASO PU 50 | DafStB
waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533
W1-E
Simple, tight and approved+ KRASO 4 Seal – MPA-tested up
to 10 bar!+ IAF-tested : radon-tight+ Made of dimensionally stable and pressure-restistant solid wall material: low abrasion, easy installation at low temperatures+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)+ Also available in KG 2000: polypropylene (PP), mineral- filled, smooth walls, long-lasting+ Also available with oil- and bitumen resistant KRASO Foil Flange+ Formed plug-in sleeve on one side, for connection to KG/ HT pipes+ Including KRASO Cover as building period protective cover+ Also available as thermally insulated floor penetration!+
DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Universal Funnel
for the installation in waterproof concrete base plates for the connection of displaced KG/HT pipes and for the connection to KG/KG 2000 lines, with one-sided spigot, walkable building period protective cover. Optionally available: screwable KRASO Stainless Steel Clamping Flange for the connection to non-adhesive foils | DafStB waterproof concrete guideline: stress class 1 + 2The floor penetration for more flexibility
+ KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ Break-resistant solid wall material, KG 2000 system compatible+ Displaced fall pipes can be corrected easily up to 45 degrees! + Integrated plug-in sleeve with diameter DN 110 and threefold reinforced lipped ring+ Surrounding connection-/ trowel flange with textured surface+ Optionally available: screwable stainless steel clamping flange for fixed-loose flange construction+ Easy installation: ready-to-use, lugs, including walkable building period protective cover
+ DafStB waterproof concrete guideline: stress class 1 + 2
