KRASO Type LES

light shaft drainage system for concrete shafts
| DafStB waterproof concrete guidline: Stress class 1 + 2

Light shaft drainage system for concrete shafts

+ Flexible drainage system - for precast factories and in situ concrete.

+ Manifold components for individual demands.

+ Also available for retrofit installation.

+ DafStB waterproof concrete guidline: Stress class 1 + 2

Info

KRASO Type LES DN 160 - basis for precast factories with water pressure tight surrounding, thermally welded KRASO 2 Seal. For later installation of LES - vario - connection, LES - leaves sieve and LES - odour stopper

KRASO Type LES DN 160 - basis for in situ concrete with water pressure tight surrounding, thermally welded KRASO 4 Seal. For later installation of LES - vario - connection, LES - leaves sieve and LES - odour stopper

KRASO Type LES DN 160 - vario connection - connection either to drainage DN 50 / DN 110 or to drainage DN 110. Connection possible to LES - backwater double stopper

LES DN 160 - backwater double stopper with 2 automatically sealing claps, one of them serves as emergency valve which can be closed by hand. Easy accessible and easy to maintain. Can be retrofitted by LES - vario - connection. Drainage capacity: 0,4 l/s Backwater tight up to 5 m water column

LES DN 160 - odour barrier removable, frost proof

LES DN 110 - backwater stopper

LES DN 110 and DN 160 - leaves sieve

Downloads

Produktinformation

Produktinfo_KRASO_Typ_LES (1.09 MiB)

Prüfzeugnis

Prüfbericht_KRASO_Vierstegdichtung_PVC (310.56 KiB)
Prüfbericht_KRASO_Vierstegdichtung_TPE (310.25 KiB)
Prüfbericht_KRASO_LES_Rückstauverschluss (2.75 MiB)

DWG-Dateien

DWG_KRASO_Typ_LES_Fertigteilwerk_DN_110 (713.78 KiB)
DWG_KRASO_Typ_LES_Ortbeton_DN_110 (702.41 KiB)

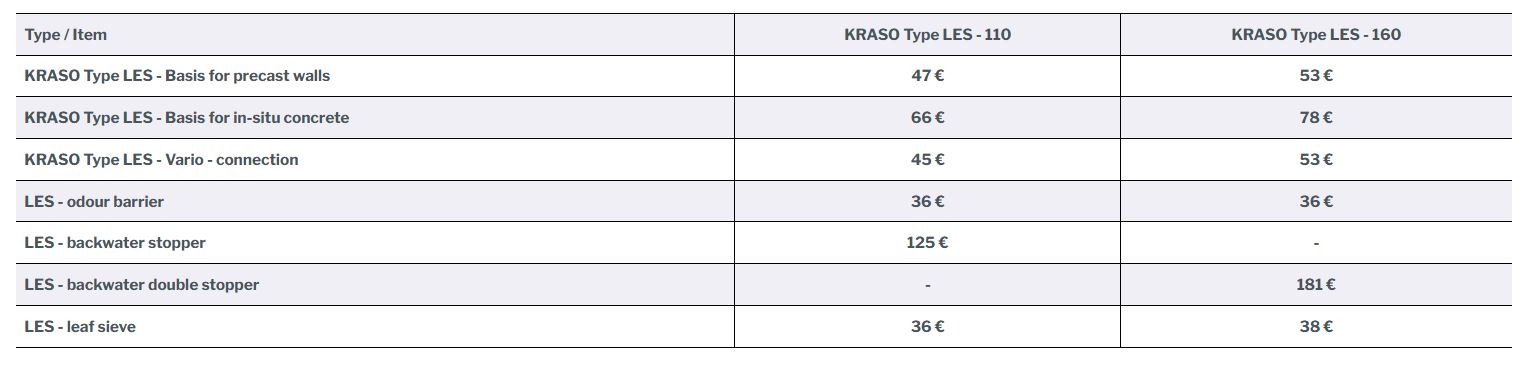

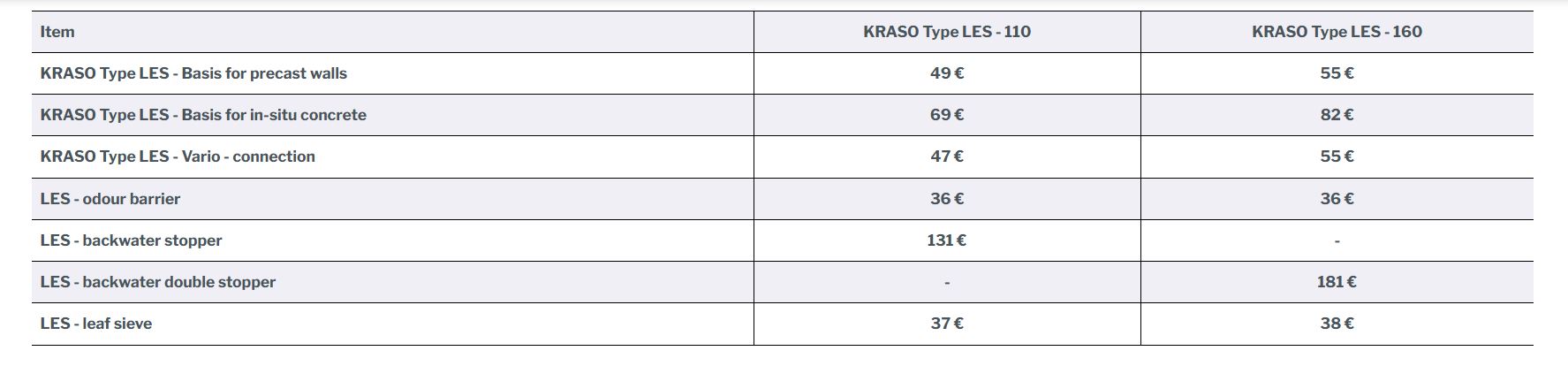

Type / Item

KRASO Type LES - 110

KRASO Type LES - 160
