KRASO System Sealing Insert KDS 150 Universal Multiple - split -

Designs
External diameter

KRASO System Sealing Insert KDS 150 Universal Multiple - split -

for installation of one or several media lines/cables, for installation into the bayonet fitting of KRASO Cable Penetration KDS 150, split design for retrofit installation, Torque Control Nut KRASO DKM, 30 mm seal, external diameter 160 mm, specifically for the use in cable penetrations | DafStB waterproof concrete guideline: stress class 1 + 2


Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150


+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.


+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

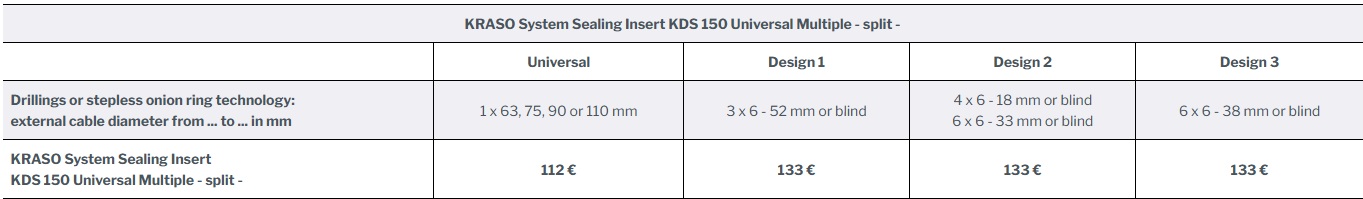

KRASO System Sealing Insert KDS 150 Universal Multiple - split -

Universal

Design 1

Design 2

Design 3

Drillings or stepless onion ring technology:
external cable diameter from ... to ... in mm

1 x 63, 75, 90 or 110 mm

3 x 6 - 52 mm or blind

4 x 6 - 18 mm or blind
6 x 6 - 33 mm or blind

6 x 6 - 38 mm or blind

KRASO System Sealing Insert
KDS 150 Universal Multiple - split -

107 €

127 €

127 €

127 €

KRASO Cable Penetration KDS double wall penetration
cable penetration system for concreting, with plug-in system on both sides for forming packages, for the later installation of media lines using KRASO System Sealing Insert (not included in the scope of supply) or for connecting empty pipe hoses using KRASO System Cover (not included in the scope of supply).Optionally available: KRASO Spacer 40 mm for KDS 150 double wall penetration for the enlargement of the centre distance from 210 mm to 250 mm | DafStB waterproof concrete guideline: stress class 1 + 2 Compatible, tight, secure - the double wall penetration system+ Compatible with all other current systems! Tight due to our water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Cable Penetration KDS single wall penetration
cable penetration system for concreting, with gas- and water pressure tight surrounding KRASO 4 Seal and KDS closure covers, with plug-in system on one side for forming packages, for later installation of media lines using a KRASO System Sealing Insert (not included in the scope of supply) or for connecting empty pipe hoses using KRASO System Cover (not included in the scope of supply). Optionally available: KRASO Spacer 40 mm for KDS 150 single wall penetration for the enlargement of the centre distance from 210 mm to 250 mm | DafStB waterproof concrete guideline: stress class 1 + 2 Compatible, tight, secure - the single wall penetration system+ Compatible with all other current systems! Tight due to our water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material!+ The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Spacer
guarantees sufficient distance between the flexible empty pipes, light, impact resistant, weather- and rot-proof plastic spacerAppropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150 + With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
