KRASO System Cover KDS 150 - heat-shrink technology

System cover KDS 150 - heat-shrink technology
Scope heat-shrink technology

KRASO System Cover KDS 150 - heat-shrink technology

incl. bayonett fitting with unit nut and anti-twist lock (prevents unintentional opening), with 1, 3 or 7 adapters for installation of pipes or cables, incl. heat-shrink hose (length approx. 20 cm) for use with heat-shrink technology, KRASO System Cover KDS 150 - heat-shrink technology 3-fold and 7-fold with factory-made, water pressure tight cover, simple opening by knocking off before installation (on site), scope in the table below | DafStB waterproof concrete guidline: Stress class 1 + 2


Appropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150

+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.

+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

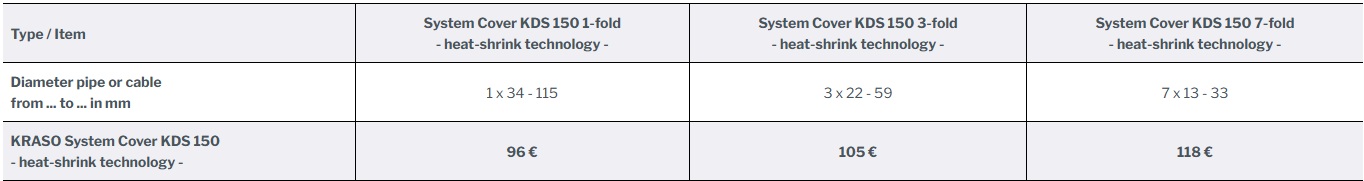

Type / Item

System Cover KDS 150 1-fold
- heat-shrink technology -

System Cover KDS 150 3-fold
- heat-shrink technology -

System Cover KDS 150 7-fold
- heat-shrink technology -

Diameter pipe or cable
from ... to ... in mm

1 x 34 - 115

3 x 22 - 59

7 x 13 - 33

KRASO Cable Penetration KDS 150 as double wall penetration with trowel flange
cable penetration system KDS 150 with trowel flange for a secure connection of bitumen coating (e.g. KMB), roughened or tissue coated, surrounding approx. 7 cm, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guidline: Stress class 1 + 2, DIN 18533 W1 -E and W2.1 -ECompatible, tight, secure - the cable penetration double sealing system + Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex construction projects: public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors. + Almost unlimited possibilities due to the modern building equipment: horizontal and vertical combination, installation at an angle of 45° is possible with preassembled clamps, also available for precast walls or as integration into the sealing of larger areas. + A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package! + DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Cable Penetration KDS 150 as double wall penetration with trowel flange
cable penetration system KDS 150 with trowel flange for a secure connection of bitumen coating (e.g. KMB), roughened or tissue coated, surrounding approx. 7 cm, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guidline: Stress class 1 + 2, DIN 18533 W1 -E and W2.1 -ECompatible, tight, secure - the cable penetration double sealing system + Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex construction projects: public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors. + Almost unlimited possibilities due to the modern building equipment: horizontal and vertical combination, installation at an angle of 45° is possible with preassembled clamps, also available for precast walls or as integration into the sealing of larger areas. + A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package! + DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Cable Penetration KDS 150 as double wall penetration - 45 degrees -
with preassembled clamps and styrofoam holders for installation at an angle of 45°Compatible, tight, secure - the cable penetration double sealing system + Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex construction projects: public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors. + Almost unlimited possibilities due to the modern building equipment: horizontal and vertical combination, installation at an angle of 45° is possible with preassembled clamps, also available for precast walls or as integration into the sealing of larger areas. + A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package! + DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Cable Penetration KDS as single wall penetration
cable penetration system for concreting, with gas- and water pressure tight surrounding KRASO 4 Seal and KDS closure covers, with plug-in system on one side for forming packages, for later installation of media lines using KRASO System Sealing Insert (not included in the delivery) or for connecting empty conduits using KRASO System Cover (not included in the delivery). Optional available: KRASO Spacer 40 mm for KDS 150 single wall penetration for enlargement of the centre distance from 210 mm to 250 mm| DafStB waterproof concrete guidline: Stress class 1 + 2 Compatible, tight, secure - the cable penetration double sealing system + Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material!+ The intelligent, all-purpose and flexible cable penetration system for complex construction projects: public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors. + Almost unlimited possibilities due to the modern building equipment: horizontal and vertical combination, installation at an angle of 45° is possible with preassembled clamps, also available for precast walls or as integration into the sealing of larger areas. + A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package! + DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Cable Penetration KDS as double wall penetration
cable penetration system for concreting, with gas- and water pressure tight surrounding KRASO 4 Seal and 2 KDS closure covers, with plug-in system on both sides for forming packages, for later installation of media lines using KRASO System Sealing Insert (not included in the delivery) or for connecting empty conduits using KRASO System Cover (not included in the delivery).Optional available: KRASO Spacer 40 mm for KDS 150 double wall penetration for enlargement of the centre distance from 210 mm to 250 mm | DafStB waterproof concrete guidline: Stress class 1 + 2 Compatible, tight, secure - the cable penetration double sealing system + Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex construction projects: public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors. + Almost unlimited possibilities due to the modern building equipment: horizontal and vertical combination, installation at an angle of 45° is possible with preassembled clamps, also available for precast walls or as integration into the sealing of larger areas. + A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package! + DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Cable Penetration FBV-KDS as double wall penetration
double wall penetration as cable penetration system for concreting, for the integration of fresh concrete composite film on the part of the building site using the clamping flange, incl. 20 cm sourrounding, angular FBV-sealing flange, incl. frame for an easy fixation, with plug-in system on both sides for forming packages, for later installation of media lines using KRASO System Sealing Insert KDS (not included in the delivery) or for connecting empty conduits using KRASO System Cover (not included in the delivery) | DafStB waterproof concrete guidline: Stress class 1 + 2 Double wall penetration as FBV-system + Cable penetration for a conformist integration of fresh concrete composite films. + Vendor independence: fresh concrete compound foils (FBV) of all vendors can be integrated. + KRASO FBV-Sealing Flange made of non-corrosive stainless steel V2A with angular fresh concrete composite film, surrounding 20 cm. + Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex construction projects: public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors. + With plug-in system on both sides for forming packages. +  DafStB waterproof concrete guidline: Stress class 1 + 2
