KRASO System Cover 150 with sleeve
KRASO System Cover 150 with sleeve
incl. bayonet fitting with unit nut and anti-twist lock, sleeve for the connection of PVC- and PP-pipes to KRASO Cable Penetration KDS 150
Appropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150
+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.
+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
Info
Scope of supply:
KRASO System Cover 150 with sleeve
KRASO System Cover 150 with sleeve
Downloads
|

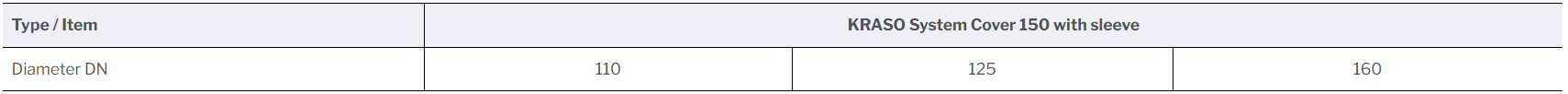

Type / Item |
KRASO System Cover 150 with sleeve |
||
|
Diameter DN |
110 |
125 |
160 |
slide 6 to 8 of 5
KRASO FLS - Flexible Empty Pipe System
flexible empty pipe-system as a cable protective hose for gas- and water tight connection to KRASO Cable Penetration KDS, over-pressures of 4,0 and 3,0 bar respectively, under-pressures of 0,7 and 0,5 bar respectively, heavy version for severe mechanical stresses, with a smooth interior for smooth cable pulling, and a smooth exterior for optimal sealing, flexible, enhanced pressure and vacuum resistance, high axial resistance, resistant to alkalis and acids, resistant to brine and sea water, good UV and ozone resistance, gas-tight and liquid-tight, RoHS-compliant (Restriction of Hazardous Substances)Appropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO Cable Penetration FBV-KDS as double wall penetration
double wall penetration as cable penetration system for concreting, for the integration of fresh concrete composite film on the part of the building site using the clamping flange, incl. 20 cm sourrounding, angular FBV-sealing flange, incl. frame for an easy fixation, with plug-in system on both sides for forming packages, for later installation of media lines using KRASO System Sealing Insert KDS (not included in the delivery) or for connecting empty conduits using KRASO System Cover (not included in the delivery) | DafStB waterproof concrete guidline: Stress class 1 + 2
Double wall penetration as FBV-system
+ Cable penetration for a conformist integration of fresh concrete composite films.
+ Vendor independence: fresh concrete compound foils (FBV) of all vendors can be integrated.
+ KRASO FBV-Sealing Flange made of non-corrosive stainless steel V2A with angular fresh concrete composite film, surrounding 20 cm.
+ Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material!
+ The intelligent, all-purpose and flexible cable penetration system for complex construction projects:
public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors.
+ With plug-in system on both sides for forming packages.
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Cable Penetration KDS 150 as double wall penetration - 45 degrees -
with preassembled clamps and styrofoam holders for installation at an angle of 45°Compatible, tight, secure - the cable penetration double sealing system
+ Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material!
+ The intelligent, all-purpose and flexible cable penetration system for complex construction projects:
public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors.
+ Almost unlimited possibilities due to the modern building equipment: horizontal and vertical combination, installation at an angle of 45° is possible with preassembled clamps, also available for precast walls or as integration into the sealing of larger areas.
+ A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
