KRASO Swan Neck
flat roof penetration, for dowel-fixing, for installation of cables using KRASO Replaceable Sealing Insert - split - (not included in the delivery), can be swivelled by 360°, integration in the roof sealing sheeting using KRASO Foil Clamping Flange Type FKF, oil- and bitumen resistant, Torque Control Nut KRASO DKM, UV protection with peripheral drip edge on the underside and anti-twist lock, with EPDM seal for foot seal of the roof opening
Innovative, secure, tight - the KRASO Flat Roof Penetration
+ Integration in the roof sealing sheeting using KRASO Foil Clamping Flange Type FKF: oil- and bitumen resistant, tested water pressure tightness up 2,5 bar.
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ UV protection with peripheral drip edge on the underside and anti-twist lock.
+ Can be swivelled by 360 degrees.
+ Flat roof penetration also available galvanised or in stainless steel V2A. Also available as thermally insulated version!
+ We can adjust the type of sealing sheets or foils: e.g. Thermofol U15, FPO, RESITRIX®, PP, PE, KRASO-Fol, PYE-PV 200 S5 etc.
+ Included in the delivery: fastening dowels M8 x 100 V2A and EPDM sealing, adhesive and sealant KRASO PU 50.
Info
KRASO Swan Neck, EPDM seal, KRASO Foil Clamping Flange Type FKF, UV protection, fastening dowels M8 x 100 V2A, adhesive and sealant KRASO PU 50
Downloads
-
kraso_katalog_kabeldurchfuehrung_schwanenhals (531.15 KiB)
-
Datenblatt_KRASO_Schwanenhals_verzinkt (603.06 KiB)
-
Datenblatt_KRASO_Schwanenhals_VA (605.52 KiB)
-
Data_Sheet_KRASO_Swan_Neck_galvanised (384.83 KiB)
-
Montageanleitung_KRASO_Schwanenhals (2.37 MiB)
-
DWG_KRASO_Schwanenhals_NW_100 (405.78 KiB)
|

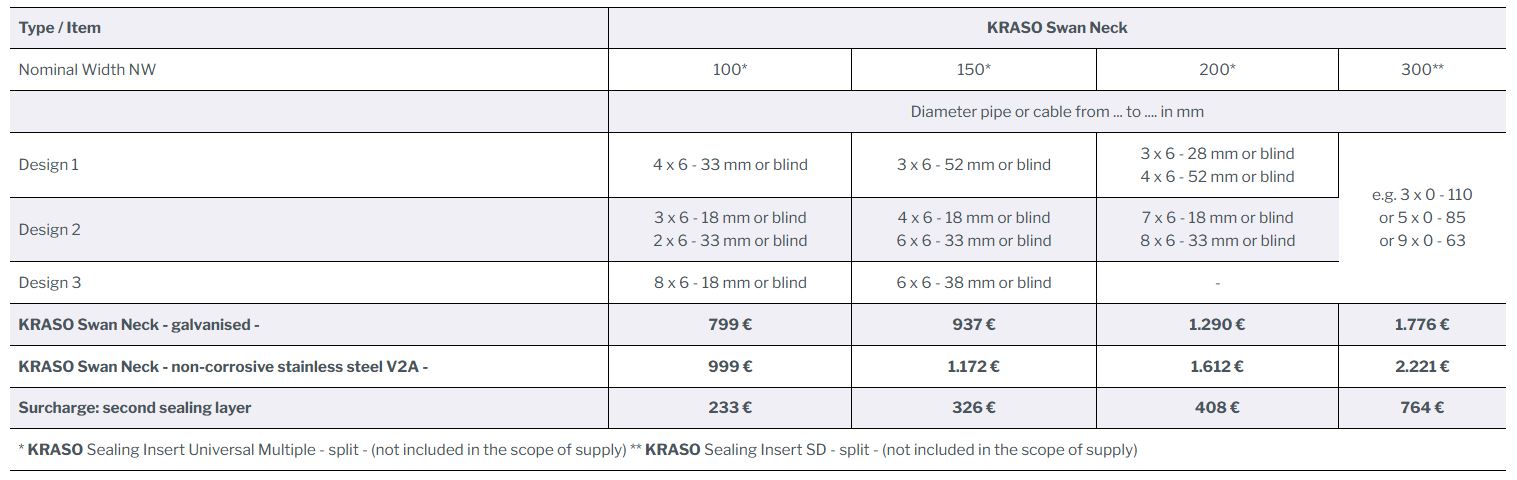

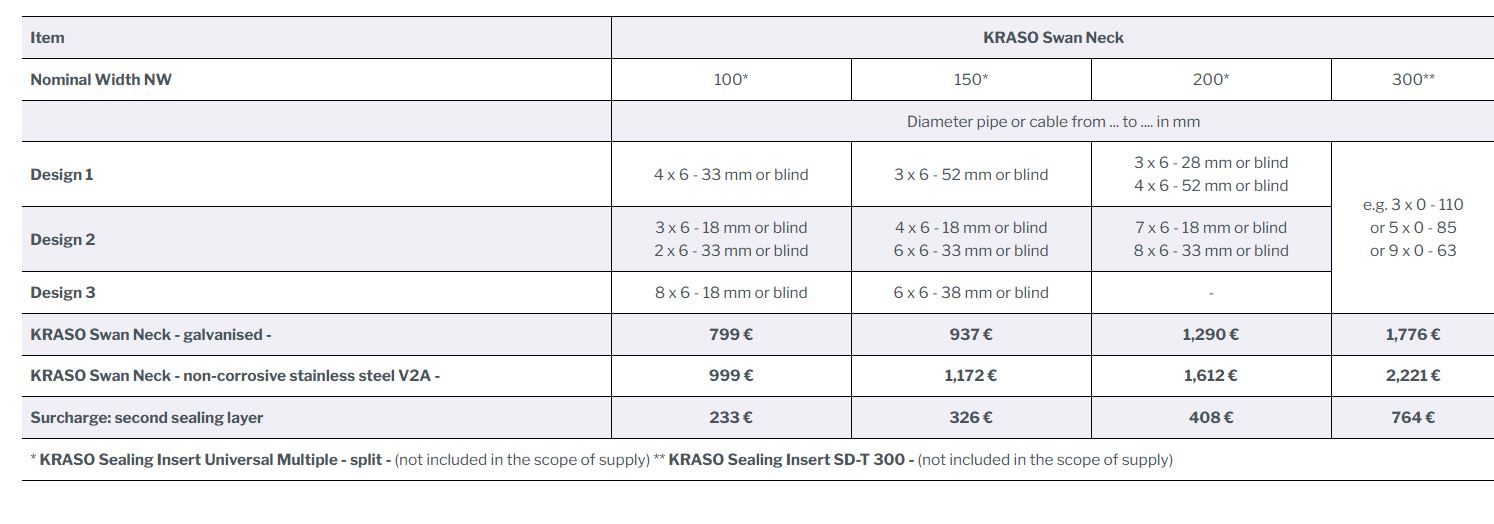

Type / Item |
KRASO Swan Neck |
|||
|
Nominal Width NW |
100* |
150* |
200* |
300** |
|
Diameter pipe or cable from ... to .... in mm |
||||
|
Design 1 |
4 x 6 - 33 mm or blind |
3 x 6 - 52 mm or blind |
3 x 6 - 28 mm or blind |
e.g. 3 x 0 - 110 |
|
Design 2 |
3 x 6 - 18 mm or blind |
4 x 6 - 18 mm or blind |
7 x 6 - 18 mm or blind |
|
|
Design 3 |
8 x 6 - 18 mm or blind |
6 x 6 - 38 mm or blind |
- |
|
|
KRASO Swan Neck - galvanised - |
799 € |
937 € |
1.290 € |
1.776 € |
|
KRASO Swan Neck - non-corrosive stainless steel V2A - |
999 € |
1.172 € |
1.612 € |
2.221 € |
|
Surcharge: second sealing layer |
233 € |
326 € |
408 € |
764 € |
|
* KRASO Sealing Insert Universal Multiple - split - (not included in the scope of supply) ** KRASO Sealing Insert SD - split - (not included in the scope of supply) |
||||
