KRASO Sealing Insert Universal DD

for installation of pipes or cables, double sealing against pressing water up to 3 bar. Can also be used as blind plug for feed-through of pipes or cables (except KRASO Universal 250 DD and Universal 250 DD/T) | DafStB waterproof concrete guideline: stress class 1 + 2

Simple, tight, universal use

+ For core drillings or casings

+ Onion ring technology: universal use for various external diameters of media pipes or cables!

+ KRASO Sealing Insert quality: non-corrosive stainless steel V2A, high quality 40 mm rubber seal, welded-on studs instead of through bolts

+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!

+ MPA-tested: protects reliably against pressing water up to 3 bar!

+ Gas- and odour-tight – high-quality in terms of TA-Air!

+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!

+ Tested according to FHRK test specification GE 101!

+ DafStB waterproof concrete guideline: stress class 1 + 2

Info

Downloads

Produktinformation

Product_Information_KRASO_Sealing_Insert_Universal_DD (441.65 KiB)
Produktinfo_KRASO_Dichteinsatz_Universal_DD (980.11 KiB)

Datenblatt

Data_Sheet_KRASO_Universal_Sealing_Insert_DD (536.03 KiB)
Datenblatt_KRASO_Dichteinsatz_Universal_DD (465.81 KiB)

Prüfzeugnis

TestCertificate_KRASO_Sealing_Insert_FHRK (1.61 MiB)
TestCertificate_KRASO_Sealing_Insert_Radon (1.61 MiB)
FHRK-Zertifikat_KRASO_Dichteinsätze (314.74 KiB)
TestCertificate_KRASO_Sealing_Insert_Universal_150_DD_T (827.48 KiB)
Prüfbericht_KRASO_Dichteinsätze_Radondichtheit (344.1 KiB)
Prüfbescheinigung_KRASO_Dichteinsatz_Universal_150_DD_T (449.41 KiB)

Montageanleitung

Montageanleitung_KRASO_Dichteinsätze (787.71 KiB)
KRASO_Sealing_Inserts_Assembly_instructions_installation_notes (758.41 KiB)

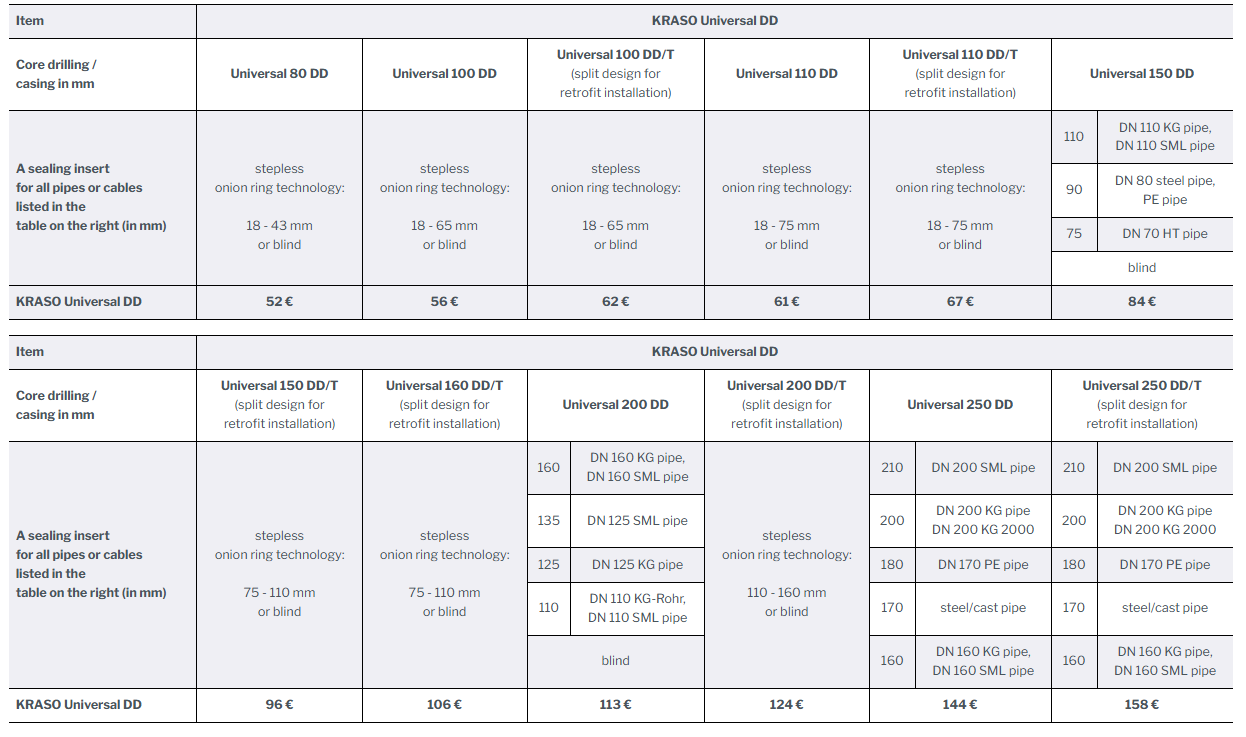

KRASO Universal DD

Type / Item

Universal
80 DD

Universal
100 DD

Universal
100 DD/T

(split design for retrofit installation)

Universal
110 DD

Universal
110 DD/T

(split design for
retrofit installation)

Universal
150 DD

Core drilling/casing

100

110

150

A sealing insert for all pipes or cables listed in the table on the right (in mm)

stepless onion ring technology:
18 - 43 mm
or blind

stepless onion ring technology:
18 - 65 mm
or blind

stepless onion ring technology:
18 - 65 mm
oder blind

stepless onion ring technology:
18 - 75 mm
or blind

110

DN 110 KG pipe,

DN 110 SML pipe

DN 80 steel pipe,

PE pipe

DN 70 HT pipe

blind

KRASO Universal DD

52 €

56 €

62 €

61 €

67 €

84 €

KRASO Universal DD

Type / Item

Universal 150 DD/T

(split design for retrofit installation)

Universal 160 DD/T

(split design for retrofit installation)

Universal 200 DD

Universal 200 DD/T

(split design for retrofit installation)

Universal 250 DD

Universal 250 DD/T

(split design for retrofit installation)

Core drilling/casing

150

160

200

250

A sealing insert for all pipes or cables listed in the table on the right (in mm)

110

DN 110 KG pipe,

DN 110 SML pipe

110

DN 110 KG pipe,

DN 110 SML pipe

160

DN 160 KG pipe,

DN 160 SML pipe

160

DN 160 KG pipe,

DN 160 SML pipe

210

DN 200 SML pipe

210

DN 200 SML pipe

DN 80 steel pipe,

PE-pipe

DN 80 steel pipe,

PE pipe

135

DN 125 SML pipe

135

DN 125 SML pipe

200

DN 200 KG pipe

DN 200 KG 2000

200

DN 200 KG pipe

DN 200 KG 2000

DN 70 HT pipe

125

DN 125 KG pipe

125

DN 125 KG pipe

180

DN 170 PE pipe

180

DN 170 PE pipe

blind

110

DN 110 KG pipe,
DN 110 SML pipe

110

DN 110 KG pipe,
DN 110 SML pipe

170

steel-/cast pipe

170

steel-/cast pipe

blind

160

DN 110 KG pipe,
DN 110 SML pipe

160

DN 110 KG-pipe,
DN 110 SML pipe

KRASO Universal DD

96 €

106 €

113 €

124 €

144 €

158 €
