KRASO Sealing Insert Type SD
KRASO Sealing Insert Type SD
for installation of pipes or cables, Torque Control Nut KRASO DKM
KRASO Type SD 30 / KRASO Type SD 30 - T, split / KRASO Type SD 30 - GF, large flange
KRASO Type SD 60 / KRASO Type SD 60 - T, split / KRASO Type SD 60 - GF, large flange
| DafStB waterproof concrete guideline: Stress class 1 + 2
The solution for special situations
+ For core drillings and casings
+ Individual and custom-made solution: with large flange or split!
+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, 30 or 60 mm seal made of a specially developed rubber mixture, welded-on studs instead of through bolts
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ MPA-tested: protects reliably against pressing water up to 2,5 / 5 bar!
+ Gas and odour tight - High-quality in terms of TA-Air!
+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!
+ Tested according to FHRK testing specification GE 101!
+ With arrangement template: see the arrangement of media lines, pipes and cables at a glance!
+ Generally available within 24 hours!
+ Available at an additional charge: non-corrosive stainless steel V4A / KTW - recommendation / NBR - oil- and petrol resistant / temperature resistant up to 220°C
+ DafStB waterproof concrete guideline: Stress class 1 + 2.
Info
All sizes and diameters available on request!
Downloads
Produktinformation
Prüfzeugnis
Montageanleitung
-
Produktinfo_KRASO_Dichteinsatz_Typ_SD (941.84 KiB)
-
Product_Information_KRASO_Sealing_Insert_SD (534.31 KiB)
-
Prüfbericht_KRASO_Dichteinsatz_Typ_SD_60 (392.94 KiB)
-
Prüfbericht_KRASO_Dichteinsatz_Typ_SD_30 (394.52 KiB)
-
TestCertificate_KRASO_Sealing_Insert_Radon (1.61 MiB)
-
FHRK-Zertifikat_KRASO_Dichteinsätze (314.74 KiB)
-
Prüfbericht_KRASO_Dichteinsätze_Radondichtheit (344.1 KiB)
-
Prüfbericht_KRASO_Dichteinsätze_KTW (1.1 MiB)
-
TestCertificate_KRASO_Sealing_Insert_type_SD30 (333.34 KiB)
-
TestCertificate_KRASO_Sealing_Insert_FHRK (1.61 MiB)
-
Montageanleitung_KRASO_Dichteinsätze (787.71 KiB)
|

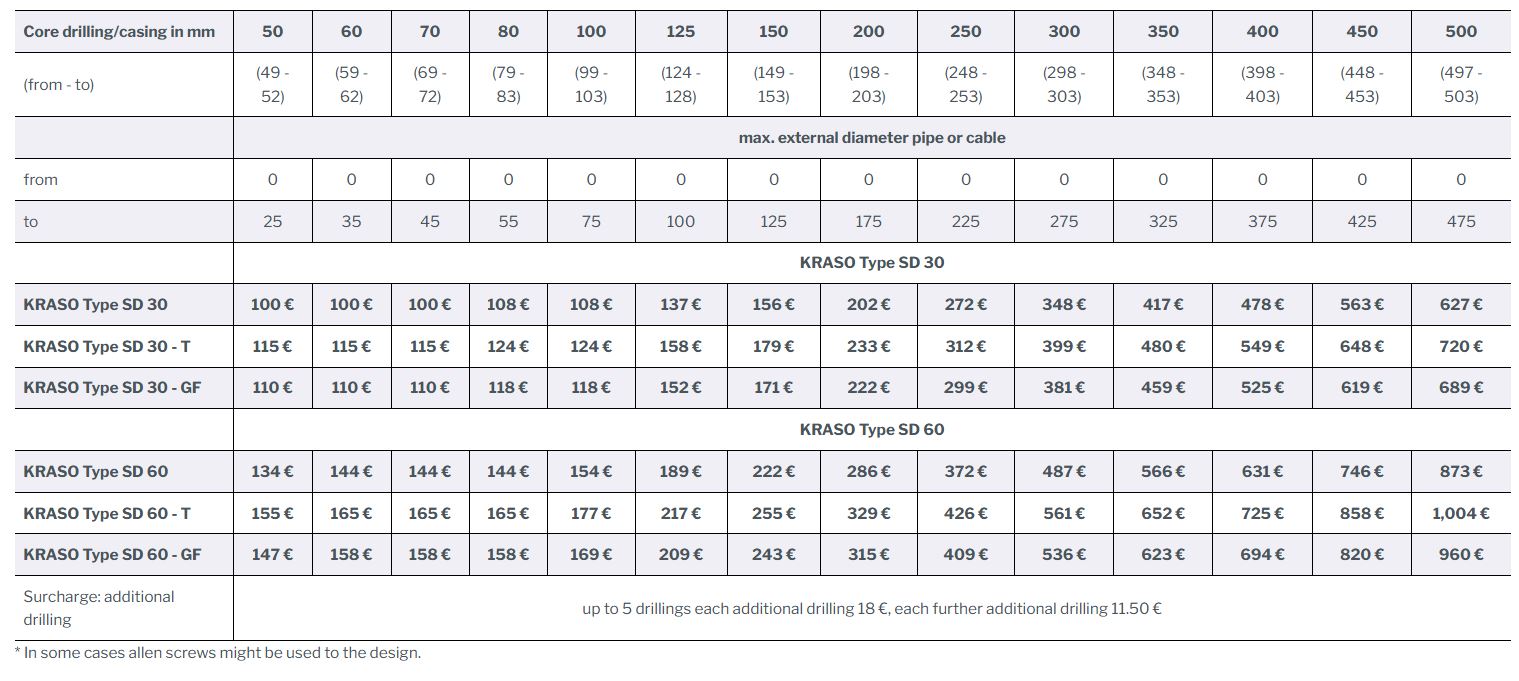

Core hole diameter or KRASO Casing in mm |
50 |
60 |
70 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
|
max. external diameter pipe or cable |
||||||||||||||
|
from |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
to |
25 |
35 |
45 |
55 |
75 |
100 |
125 |
175 |
225 |
275 |
325 |
375 |
425 |
475 |
|
KRASO Type SD 30 |
||||||||||||||
|
KRASO Type SD 30 |
80 € |
84 € |
87 € |
92 € |
97 € |
112 € |
135 € |
169 € |
229 € |
315 € |
413 € |
528 € |
693 € |
844 € |
|
KRASO Type SD 30 - T |
100 € |
106 € |
108 € |
115 € |
120 € |
138 € |
169 € |
210 € |
287 € |
395 € |
516 € |
659 € |
867 € |
1.057 € |
|
KRASO Type SD 30 - E |
111 € |
116 € |
118 € |
127 € |
145 € |
152 € |
186 € |
231 € |
315 € |
434 € |
568 € |
726 € |
954 € |
1.163 € |
|
KRASO Type SD 30 - GF |
108 € |
114 € |
116 € |
124 € |
131 € |
151 € |
184 € |
227 € |
310 € |
426 € |
558 € |
712 € |
936 € |
1.140 € |
|
Surcharge: additional drilling |
up to 5 drillings each additional drilling 16 €, each additional drilling 10 € |
|||||||||||||
|
KRASO Type SD 60 |
||||||||||||||
|
KRASO Type SD 60 |
107 € |
110 € |
118 € |
126 € |
134 € |
150 € |
184 € |
232 € |
310 € |
429 € |
563 € |
908 € |
1.137 € |
1.286 € |
|
KRASO Type SD 60 - T |
128 € |
132 € |
142 € |
151 € |
160 € |
180 € |
220 € |
279 € |
372 € |
516 € |
676 € |
1.091 € |
1.364 € |
1.543 € |
|
KRASO Type SD 60 - E |
140 € |
146 € |
157 € |
166 € |
176 € |
198 € |
243 € |
306 € |
462 € |
568 € |
744 € |
1.200 € |
1.500 € |
1.697 € |
|
KRASO Type SD 60 - GF |
143 € |
149 € |
160 € |
170 € |
181 € |
203 € |
247 € |
313 € |
420 € |
580 € |
762 € |
1.227 € |
1.535 € |
1.737 € |
|
Surcharge: additional drilling |
up to 5 drillings each additional drilling 16 €, each additional drilling 10 € |
|||||||||||||
KRASO Casing Type FBV-FE - casing true diameter
thick-walled plastic casing for a conformist integration of FBV-films, for concreting with fresh concrete composite film on the part of the building site, using the 20 cm sourrounding, angular FBV-sealing flange, Torque Control Nut KRASO DKM, incl. frame for an easy fixation, colour grey, as a recess for later installation of pipes or cables using KRASO Sealing Insert (not included in the delivery), with water pressure-, gas- and odour-tight, surrounding KRASO 4 Seal and 2 KRASO Covers as an installation aidID = InternalDiameter true diameter casing
| DafStB waterproof concrete guidline: Stress class 1 + 2
The casing for FBV integration
+ Casing for a conformist integration of fresh concrete composite films.
+ Vendor independence: fresh concrete compound foils (FBV) of all vendors can be integrated.
+ KRASO FBV-Sealing Flange made of non-corrosive stainless steel V2A with angular fresh concrete composite film, surrounding 20 cm.
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Thick-walled plastic casing - true diameter - for concreting: as a recess for later installation of pipes or cables using KRASO Sealing Insert!
+ With water pressure tight surrounding KRASO 4 Seal - certified and tested: due to the special geometry our surrounding 4 Seal produces a grip with the concrete that is water-, gas- and odour-tight.
+ Materials and processing: KRASO Casings are made of weatherproof, high-impact plastic. The surrounding KRASO 4 Seal is joined monolithically to the plastic pipe by vulcanization.+ IAF tested: Radon-tight!+ Tested according to FHRK test specification GE 120!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Sealing Insert Universal DD
for installation of pipes or cables, double sealing against
pressing water up to 3 bar. Can also be used as blind plug for feed-through of
pipes or cables (except KRASO Universal 250 DD and Universal 250 DD/T) | DafStB
waterproof concrete guideline: stress class 1 + 2Simple, tight, universal use
+ For core drillings or casings
+ Onion ring technology: universal use for various external
diameters of media pipes or cables!
+ KRASO Sealing Insert quality: non-corrosive stainless
steel V2A, high quality 40 mm rubber seal, welded-on studs instead of through bolts
+ Torque Control Nut KRASO DKM: integrated torque limiter -
no torque wrench required!
+ MPA-tested: protects reliably against pressing water up to
3 bar!
+ Gas- and odour-tight – high-quality in terms of TA-Air!
+ Radon tightness IAF tested - meets the requirements for
radon precautionary areas according to FHRK leaflet MB 101!
+ Tested according to FHRK test specification GE 101!
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Sealing Insert Universal Multiple - split -
for simultaneous installation of several media lines/cables, split design for retrofit installation | DafStB waterproof concrete guideline: Stress class 1 + 2
Universally usable - multiply flexible+ For core drillings and casings
+ Stepless onion ring technology: universally usable for various external diameters of media lines/cables - even with several drillings! Split design for retrofit installation!
+ KRASO Sealing Insert quality: 5 mm tick clamping plates made of non-corrosive stainless steel V2A, 40 mm seal made of specially developed rubber mixture, welded-on studs instead of through bolts
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ MPA-tested: protects reliably against pressing water up to 2,5 bar!+ Gas and odour tight - high-quality in terms of TA-Air!+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!+ DafStB waterproof concrete guideline: Stress class 1 + 2.
