KRASO Sealing Insert Type FL

fixed-loose flange with KRASO Sealing Insert, for installation of media pipes for buildings with exterior sealing ("black tank") according to DIN 18533. Available in non-corrosive stainless steel V2A or electrogalvanised, each with or without special coating, Torque Control Nut KRASO DKM | DIN 18533 W2.1 -E and W2.1 -E

Fixed-loose flange for dowel-fixing or for concreting and as a sealing insert

+ For buildings with exterior sealing (“black tank“): according to DIN 18533 (“sealing of below-ground structural elements“)

+ Each design available as separate types for pressing and non-pressing water

+ Available in non-corrosive stainless steel V2A or V4A and in electrogalvanised steel

+ Upon request available with special coating for buildings with thick coating (e.g. KMB)!

+ DIN 18533: water exposure classes W2.1 -E and W2.2 -E (“medium impact of pressing water“ - water column ≤ 3 metres / „high impact of pressing water" - water column ≥ 3 metres)

Info

Scope of supply:

KRASO Sealing Insert Type FL/DD / KRASO Sealing Insert Type FL/ED, sealing insert with welded fixed-flange, loose-flange, dowels M8 x 100, bolts, nuts and washers M20 or M12, 40 mm or 20 mm seal

Further diameters available on request! Also availble in V4A!

Downloads

KRASO Dichteinsatz Typ FL

Datenblatt KRASO Dichteinsatz Typ FL V2A

Datenblatt KRASO Dichteinsatz Typ FL VZ

FHRK-Zertifikat KRASO Dichteinsätze

Produktinfo KRASO Dichteinsatz Typ FL

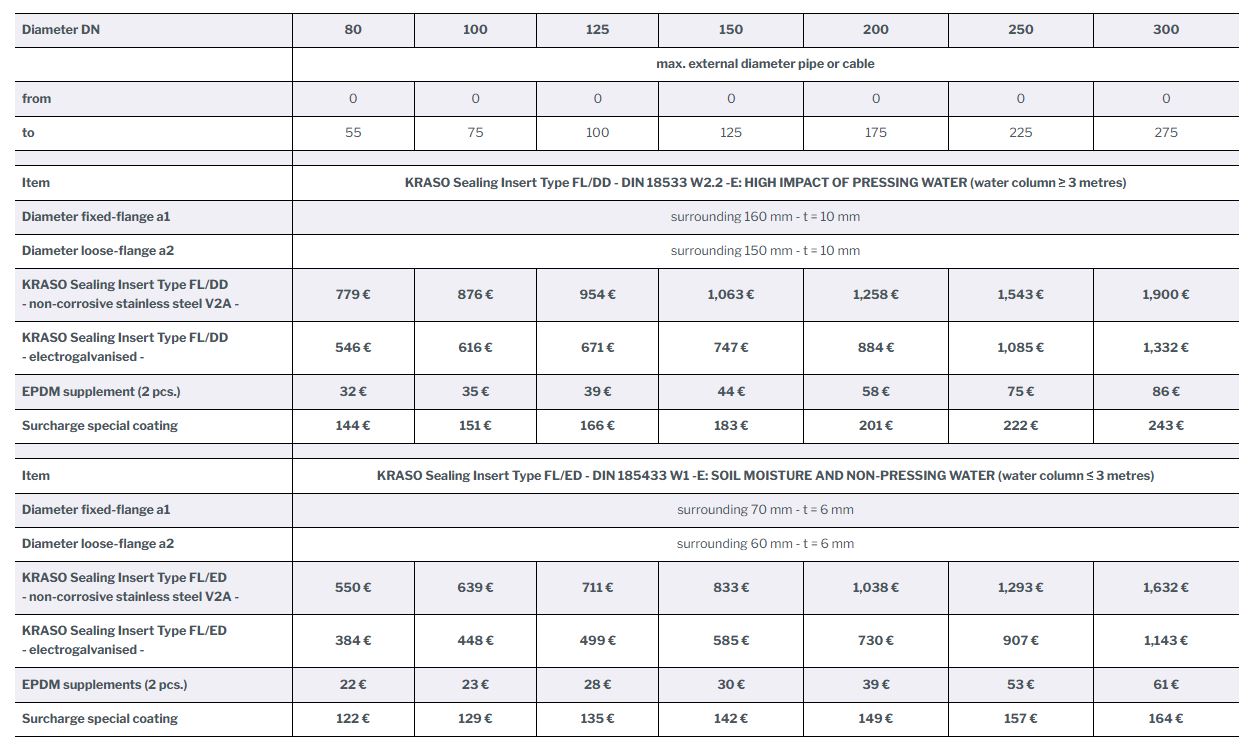

Diameter DN	80	100	125	150	200	250	300
	max. external diameter pipe or cable
from	0	0	0	0	0	0	0
to	55	75	100	125	175	225	275

Type / Item	KRASO Sealing Insert Type FL/DD - DIN 18533 W2.2-E: high impact of pressing water (water column ≥ 3 metres)
Diameter fixed-flange a1	surrounding 160 mm - t = 10 mm
Diameter loose-flange a2	surrounding 150 mm - t = 10 mm
KRASO Sealing Insert Type FL/DD - non-corrosive stainless steel V2A -	779 €	876 €	954 €	1.063 €	1.258 €	1.543 €	1.900 €
KRASO Sealing Insert Type FL/DD - electrogalvanised -	546 €	616 €	671 €	747 €	884 €	1.085 €	1.332 €
EPDM supplement (2 pcs.)	32 €	35 €	39 €	44 €	58 €	75 €	86 €
Surcharge special coating	144 €	151 €	166 €	183 €	201 €	222 €	243 €

Type / Item	KRASO Sealing Insert Type FL/ED - DIN 185433 W1-E: medium impact of pressing water (water column ≤ 3 metres)
Diameter fixed-flange a1	surrounding 70 mm - t = 6 mm
Diameter loose-flange a2	surrounding 60 mm - t = 6 mm
KRASO Sealing Insert Type FL/ED - non-corrosive stainless steel V2A -	550 €	639 €	711 €	833 €	1.038 €	1.293 €	1.632 €
KRASO Sealing Insert Type FL/ED - electrogalvanised -	384 €	448 €	499 €	585 €	730 €	907 €	1.143 €
EPDM supplements (2 pcs.)	22 €	23 €	28 €	30 €	39 €	53 €	61 €
Surcharge special coating	122 €	129 €	135 €	142 €	149 €	157 €	164 €

Downloads auf ausschreiben.de

KRASO Casing Type FL/ZA

fixed-loose flange for dowel-fixing, with casing, for installation of media pipes using a sealing insert (not included in the scope of supply), for buildings with exterior sealing ("black tank") according to DIN 18533. Available in non-corrosive stainless steel V2A or electrogalvanised, each with or without special coating ID = InternalDiameter | DIN 18533 W2.1 -E and W2.2 -EFixed-loose flange for dowel-fixing or for concreting and as a sealing insert+ For buildings with exterior sealing ("black tank"): according DIN 18533 ( "sealing of below-ground structural elements")+ Each design available as separate types for pressing and non-pressing water+ Available in non-corrosive stainless steel V2A or V4A and in electrogalvanised steel+ Upon request available with special coating for buildings with thick coating (e.g. KMB)! + DIN 18533: water exposure class W2.1 -E and W2.2 -E (“medium impact of pressing water“ - water column ≤ 3 metres)“ / „high impact of pressing water" - water column ≥ 3 metres)

KRASO Casing Type FL/ZE

fixed-loose flange for concreting, with casing, for installation of media pipes using a sealing insert (not included in the scope of supply), for buildings with exterior sealing ("black tank") against pressing / non-pressing water according to DIN 18533. Available in non-corrosive stainless steel V2A or electrogalvanised with plastic casing, each with or without special coating ID = InternalDiameter | DIN 18533 W2.1 -E and W2.2 -E Fixed-loose flange for dowel-fixing or for concreting and as a sealing insert + For buildings with exterior sealing (“black tank“): according to DIN 18533 (“sealing of below-ground structural elements“) + Each design available as separate types for pressing and non-pressing water + Available in non-corrosive stainless steel V2A or V4A and in electrogalvanised steel + Upon request available with special coating for buildings with thick coating (e.g. KMB)! + DIN 18533: water exposure classes W2.1 -E and W2.2 -E (“medium impact of pressing water“ - water column ≤ 3 metres / „high impact of pressing water" - water column ≥ 3 metres)
