KRASO Sealing Insert Type ED + DD + VD

for installation of pipes, Torque Control Nut KRASO DKM, non-corrosive stainless steel V2A, single sealing, against pressing water up to 1 bar, 20 mm seal (KRASO Type ED, KRASO Type ED/T), double sealing, against pressing water up to 3 bar, 40 mm seal (KRASO Type DD, KRASO Typ DD/T), quadruple sealing, against pressing water up to 8 bar, 80 mm seal (KRASO Type VD) | DafStB waterproof concrete guideline: Stress class 1 + 2

Simply just better

+ For core drillings or casings

+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, a specially developed rubber mixture with even better sealing characteristics, welded-on studs instead of through bolts, more studs for an even pressure distribution

+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!

+ Tested gas-tight according to DIN EN 13611 (chapter 7.12) proven by the DVGW research centre at the Engler-Bunte-Institute (EBI) of the Institute for Technology in Karlsruhe

+ MPA-tested: protects reliably against pressurised water up to 10 bar!

+ Gas- and odour-tight – high-quality in terms of TA-Air!

+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!

+ Tested according to FHRK test specification GE 101!

+ KRASO Sealing Insert Configurator – simple and fast: configure the matching sealing insert online or via our app!

Info

Downloads

Produktinformation

Product_Information_KRASO Sealing_Insert_ED_DD_VD (388.34 KiB)
Produktinfo_KRASO_Dichteinsatz_Typ_ED_DD_VD (839.65 KiB)

Datenblatt

Data_Sheet_KRASO_Sealing_Insert_DD (323.53 KiB)
Datenblatt_KRASO_Dichteinsatz_Typ_VD_zv (303.75 KiB)
Datenblatt_KRASO_Dichteinsatz_Typ_DD_zv (304.85 KiB)
Data_Sheet_KRASO_Sealing_Insert_ED (319.96 KiB)
Data_Sheet_KRASO_Sealing_Insert_VD (325.67 KiB)
Datenblatt_KRASO_Dichteinsatz_Typ_ED_zv (300.74 KiB)

Prüfzeugnis

Prüfbericht_KRASO_Dichteinsatz_Typ_VD (2.27 MiB)
Prüfbericht_KRASO_Dichteinsatz_Typ_DD (397.97 KiB)
FHRK-Zertifikat_KRASO_Dichteinsätze (314.74 KiB)
Prüfbericht_KRASO_Dichteinsätze_Radondichtheit (344.1 KiB)
Prüfbericht_KRASO_Dichteinsatz_Typ_ED (273.71 KiB)
TestCertificate_KRASO_Sealing_Insert_FHRK (1.61 MiB)
TestCertificate_KRASO_Sealing_Insert_Radon (1.61 MiB)

Montageanleitung

KRASO_Sealing_Inserts_Assembly_instructions_installation_notes (758.41 KiB)
Montageanleitung_KRASO_Dichteinsätze (787.71 KiB)

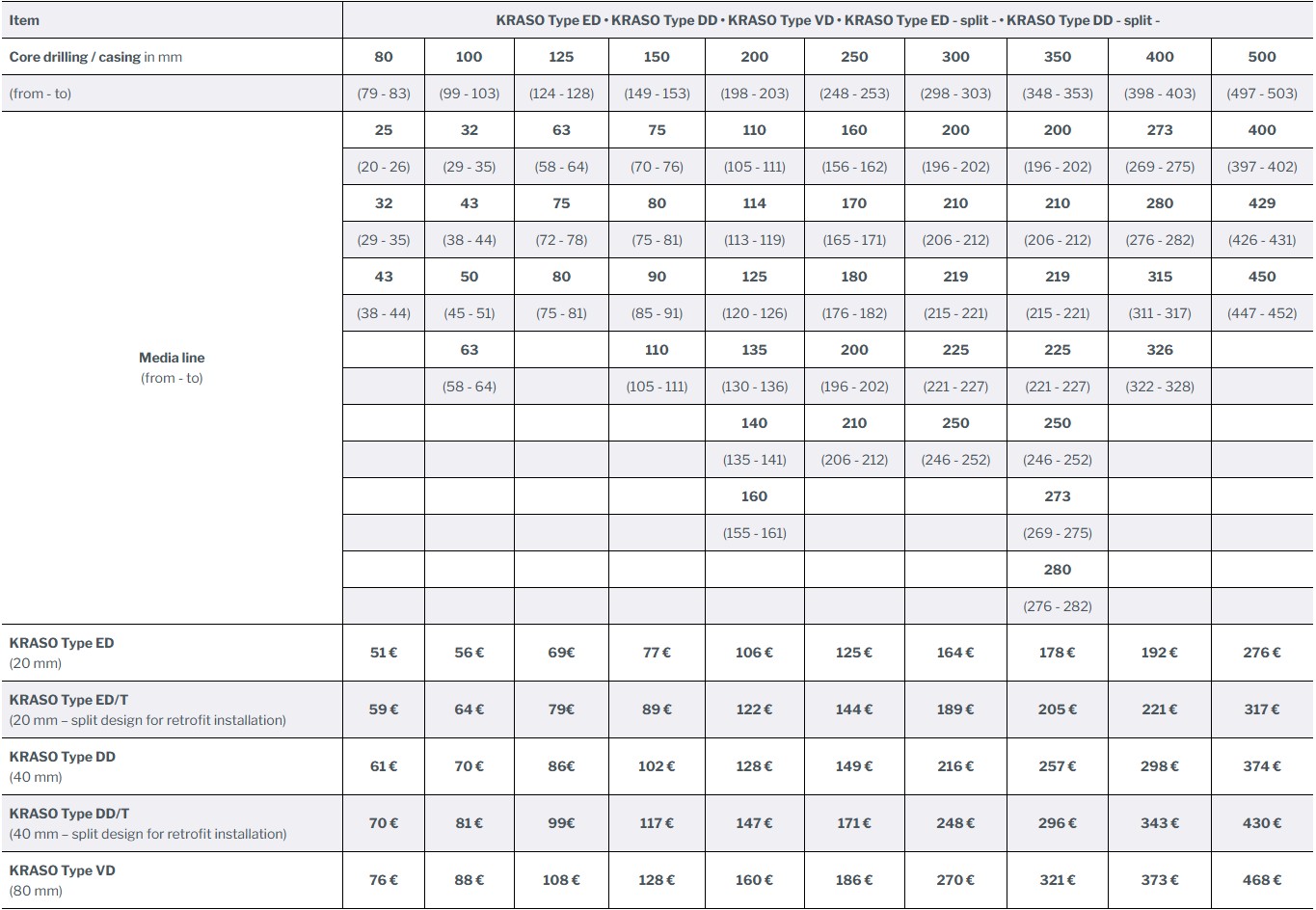

Type / Item

KRASO Type ED • KRASO Type DD • KRASO Type VD • KRASO Type ED - split - • KRASO Type DD - split -

Core drilling / casing in mm

100

125

150

200

250

300

350

400

500

(from - to)

(79 - 83)

(99 - 103)

(124 - 128)

(149 - 153)

(198 - 203)

(248 - 253)

(298 - 303)

(348 - 353)

(398 - 403)

(497 - 503)

Media line

(from - to)

110

160

200

273

400

(20 - 26)

(29 - 35)

(58 - 64)

(70 - 76)

(105 - 111)

(156 - 162)

(196 - 202)

(269 - 275)

(397 - 402)

114

170

210

280

429

(29 - 35)

(38 - 44)

(72 - 78)

(75 - 81)

(113 - 119)

(165 - 171)

(206 - 212)

(276 - 282)

(426 - 431)

125

180

219

315

450

(38 - 44)

(45 - 51)

(75 - 81)

(85 - 91)

(120 - 126)

(176 - 182)

(215 - 221)

(311 - 317)

(447 - 452)

110

135

200

225

326

(58 - 64)

(105 - 111)

(130 - 136)

(196 - 202)

(221 - 227)

(322 - 328)

140

210

250

(135 - 141)

(206 - 212)

(246 - 252)

160

273

(155 - 161)

(269 - 275)

280

(276 - 282)

KRASO Type ED

(20 mm)

51 €

56 €

69€

77 €

106 €

125 €

164 €

178 €

192 €

276 €

KRASO Type ED/T

(20 mm – split design for retrofit installation)

59 €

64 €

79€

89 €

122 €

144 €

189 €

205 €

221 €

317 €

KRASO Type DD

(40 mm)

61 €

70 €

86€

102 €

128 €

149 €

216 €

257 €

298 €

374 €

KRASO Type DD

(40 mm – split design for retrofit installation)

70 €

81 €

99€

117 €

147 €

171 €

248 €

296 €

343 €

430 €

KRASO Type VD

(80 mm)

76 €

88 €

108 €

128 €

160 €

186 €

270 €

321 €

373 €

468 €

Downloads auf ausschreiben.de

KRASO Sealing Insert Universal Multiple - split -

for simultaneous installation of several media lines/cables, split design for retrofit installation | DafStB waterproof concrete guideline: Stress class 1 + 2 Universally usable - multiply flexible+ For core drillings and casings + Stepless onion ring technology: universally usable for various external diameters of media lines/cables - even with several drillings! Split design for retrofit installation! + KRASO Sealing Insert quality: 5 mm tick clamping plates made of non-corrosive stainless steel V2A, 40 mm seal made of specially developed rubber mixture, welded-on studs instead of through bolts + Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required! + MPA-tested: protects reliably against pressing water up to 2,5 bar!+ Gas and odour tight - high-quality in terms of TA-Air!+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!+ DafStB waterproof concrete guideline: Stress class 1 + 2.

KRASO Sealing Insert Universal DD

for installation of pipes or cables, double sealing against pressing water up to 3 bar. Can also be used as blind plug for feed-through of pipes or cables (except KRASO Universal 250 DD and Universal 250 DD/T) | DafStB waterproof concrete guideline: stress class 1 + 2Simple, tight, universal use + For core drillings or casings + Onion ring technology: universal use for various external diameters of media pipes or cables! + KRASO Sealing Insert quality: non-corrosive stainless steel V2A, high quality 40 mm rubber seal, welded-on studs instead of through bolts + Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required! + MPA-tested: protects reliably against pressing water up to 3 bar! + Gas- and odour-tight – high-quality in terms of TA-Air! + Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101! + Tested according to FHRK test specification GE 101! + DafStB waterproof concrete guideline: stress class 1 + 2
