KRASO Pump Sump Type Q - sewage -












KRASO Pump Sump Type Q - sewage -
for pumping out of sewage containing faeces, with water pressure tight surrounding, thermally welded KRASO 4 Seal, factory bracing, concrete anchors, 1 piece water pressure tight KG pipe connection DN 110, suitable for KG, HT and KG 2000 pipes, pumping system (excl. maintenance contract)
| DafStB waterproof concrete guidline: Stress class 1 + 2
Low weight, high performance
+ The high-performance solution for sewage containing faeces: the combination of KRASO Pump Sump Type Q and closed pumping system according DIN 12050-1.
+ Suitable for single-family homes, basement flats, sanitation in private basements.
+ Pumping medium: for clear water and for wastewater containing sewage and faeces.
+ Low weight = less freight costs and an easy handling - no crane necessary on site.
+ Saves time, labour, money and additional drainage: No cost intensive works, no concreting sections for several days, no additional formwork.
+ No higher risks due to leaking concrete joints and/or pipe connections.
+ Made of shock-resistant and light, almost unbreakable plastic. Special dimensions are available within a few days!
+ Doubled bottom: fixation only in the upper base plate necessary.
+ Installation and connection of pumping system has to be realised by a plumbing and heating contractor.
+ Optional available:
• Wedge gate valve (on the water pressurised site necessary according DIN)
• Pump Sump Cover100/100
+ DafStB waterproof concrete guidline: Stress class 1 + 2
Info
Scope of supply:
KRASO Pump Sump Type Q - sewage -, pumping system • Optional available: wedge gate valve
KRASO Pump Sump Type Q - sewage -, pumping system • Optional available: wedge gate valve
Downloads
KRASO Pumpensumpf Typ Q - Fäkalien -

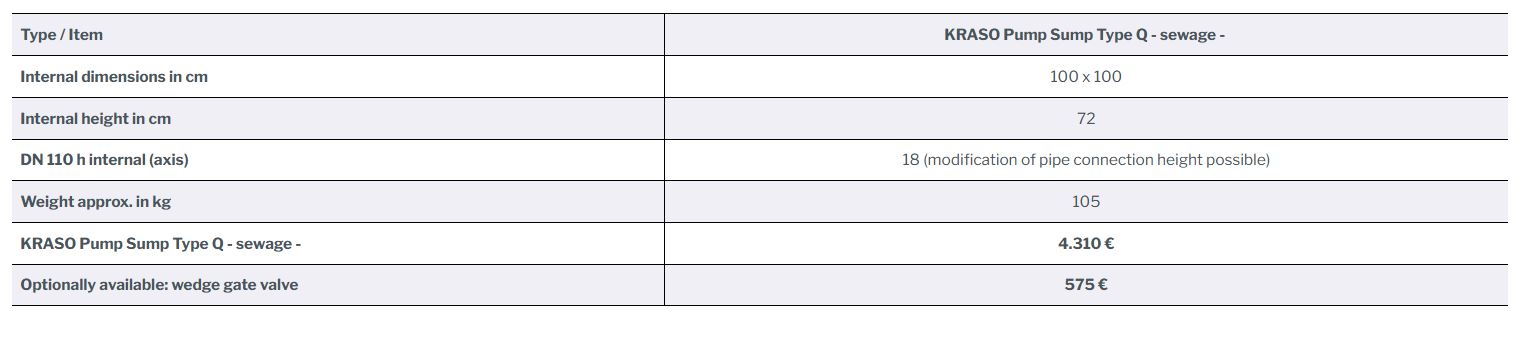

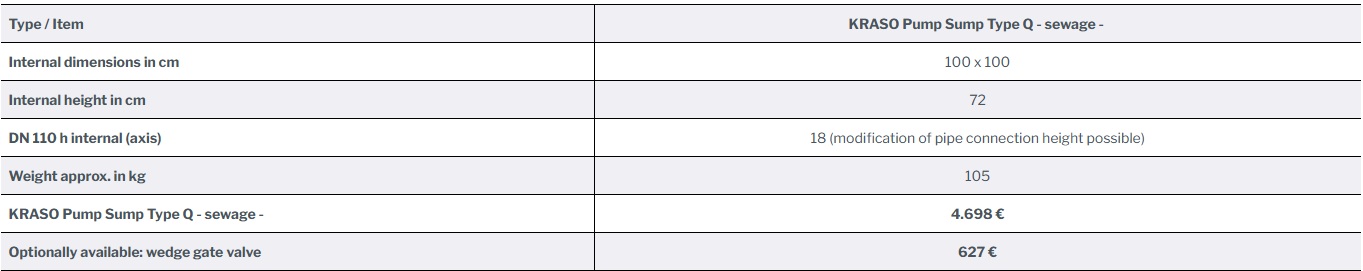

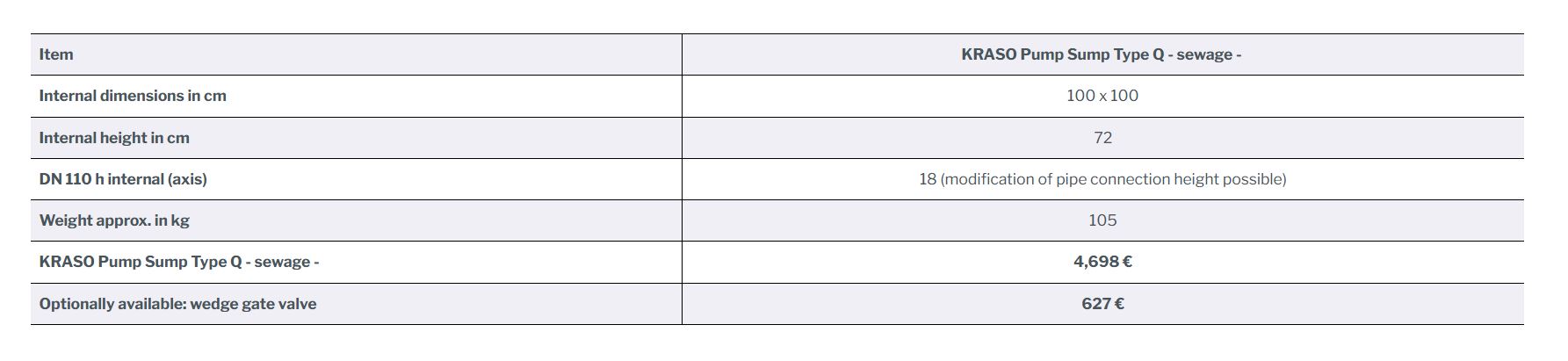

Type / Item |
KRASO Pump Sump Type Q - sewage - |
Internal dimensions in cm |
100 x 100 |
Internal height in cm |
72 |
DN 110 h internal (axis) |
18 (modification of pipe connection height possible) |
Weight approx. in kg |
105 |
KRASO Pump Sump Type Q - square -
for collecting waste water, made of plastic, with water pressure tight surrounding, thermally welded KRASO 4 Seal, factory bracing, concrete anchors, 1 piece water pressure tight KG pipe connection DN 110, suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guidline: Stress class 1 + 2Low weight - low freight - fast delivery: the simple and tight plastic solution:
+ Low weight = low freight and easy handling without crane on-site.
+ Saves time, labour, money and additional drainage: no cost-intensive works, no concreting sections for several days, no shuttering.
+ No risk due to leaking concrete joints and/or pipe connections.
+ Resistance against many acids and lyes.
+ Made of high-quality and impact-resistant-plastic. Special dimensions are available within a few days!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Pump Sump - concrete -
for collecting waste water, made of waterproof concrete (C35/45), with 12 cm strong, reinforced walls in one piece cast, with water pressure tight surrounding, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus“, KRASO Pipe Connection, suitable for KG, HT and KG 2000 pipes, rebar connection 8/15 and crane lifting lugs for easy placement on the site. Pipe connection heights are indicated with the level of the lower edge of KRASO Pipe Connection at the internal base of the shaft!
| DafStB waterproof concrete guidline: Stress class 1 + 2
Save time and money - in one piece cast
+ Formworks on-site can be avoided - and therefore time and money - by the ready-made concrete KRASO Pump Sump.+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints.
+ The 12 cm thick, reinforced walls as well as the surrounding water pressure tight construction joint tape KRASO Duo-Fix 150 “plus” guarantee a water pressure tight passage to the base plate.
+ With crane lifting lugs for an easy and fast placement on the site.
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Pump Sump FBV - concrete -
for collecting waste water, made of water proof concrete with 12 cm strong, reinforced walls in one piece cast - on request with FBV sealing flangePump sumps, lift pits, inspection shafts
+ Precast concrete elements as special designs for a compliant integration of fresh concrete composite films: pump sumps, lift pits, cable ducts, inspection shafts+ Complete foil cover for intergation into the base plate! Manufacturer-independent: fresh concrete composite films (FBV) of all manufacturers can be integrated + Weather-independent prodcution, completely custom-made exactly according to your instructions!+ The surrounding water pressure tight construction joint tape KRASOflex Duo-Fix 150 “plus” ensures a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs!+ With crane lifting lugs for an easy and fast placement on the site.
KRASO Backwater Shaft Type Q - sewage -
for backflow protection according DIN EN 13564 Type F3, made of plastic, water pressure tight surrounding, thermally welded KRASO 4 Seal, concrete anchors, reinforcing rips and 2 water pressure tight pipe connections, suitable for KG, HT and KG 2000 pipes, 1 electric pressure flap (with emergency power function), 1 manual return valve, for sewage containing faeces
| DafStB waterproof concrete guidline: Stress class 1 + 2
Low weight - low freight - fast delivery: the simple and tight plastic solution:+ Low weight = low freight and easy handling without crane on-site.+ Saves time, labour, money and additional drainage: no cost-intensive works, no concreting sections for several days, no shuttering.+ No risk due to leaking concrete joints and/or pipe connections.+ Resistance against many acids and lyes.+ Made of high-quality and impact-resistant-plastic. Special dimensions are available within a few days!+ DafStB waterproof concrete guidline: Stress class 1 + 2
