KRASO Pump Sump Cover - fit for traffic up to 5 t, wheel pressure up to 1,25 t

for KRASO Pump Sump - concrete - and KRASO Pump Sump Type Q - square -, bulb plate, galvanised, fit for traffic up to 5 t, wheel pressure up to 1,25 t (dimensions in mm, approx. values - subject to correction!)

KRASO Pump Sumps - directly to the construction site

+ KRASO Pump Sumps - whether made of concrete or plastic - save time and money!

+ Precise planning of your construction progress is possible with a delivery directly to your construction site. KRASO Pump Sumps made of concrete with crane lifting lugs - for an easy and fast placement on-site!

Info

Scope of supply:

KRASO Pump Sump Cover - fit for traffic up to 5 t, wheel pressure up to 1,25 t

Downloads

Produktinformation

Produktinfo_KRASO_Pumpensumpf_Abdeckungen (3.48 MiB)

Montageanleitung

Montageanleitung_KRASO_Pumpensumpf_Abdeckungen (1.83 MiB)

DWG-Dateien

DWG_KRASO_Pumpensumpf_Abdeckung_befahrbar_60x60_bis_5_t,_Raddruck_bis_1,25_t (703.85 KiB)

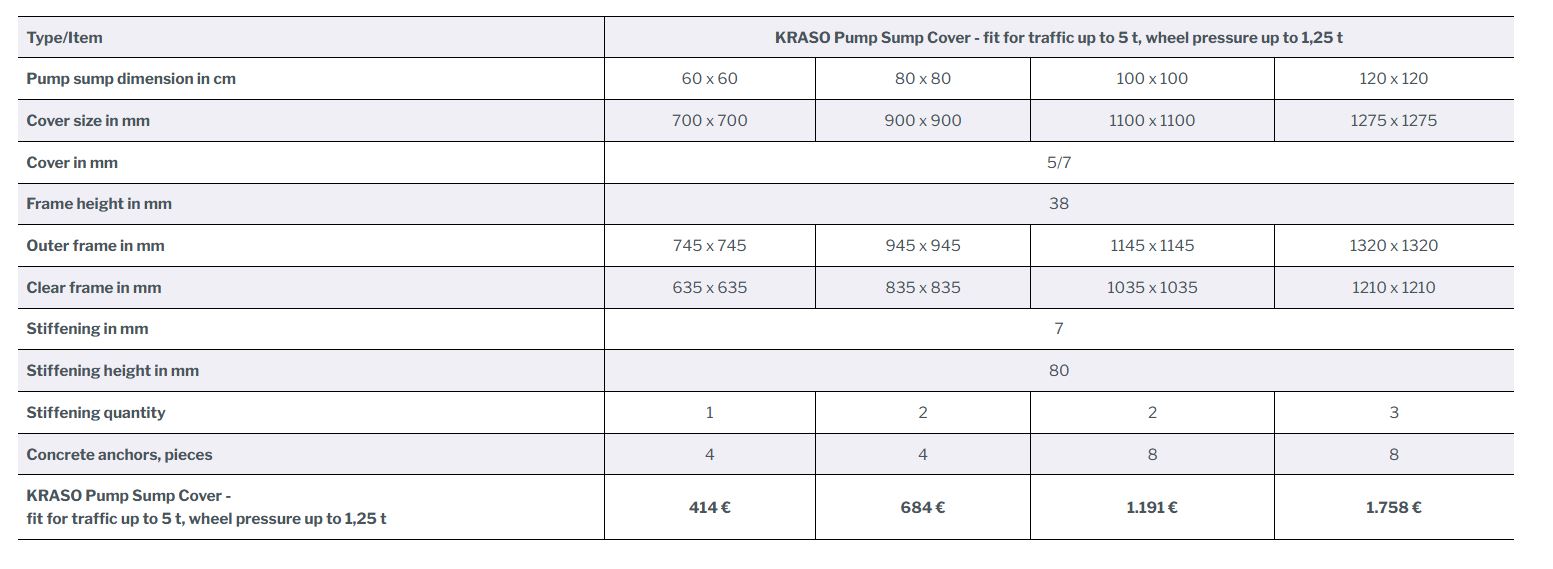

Type/Item	KRASO Pump Sump Cover - fit for traffic up to 5 t, wheel pressure up to 1,25 t
Pump sump dimension in cm	60 x 60	80 x 80	100 x 100	120 x 120
Cover size in mm	700 x 700	900 x 900	1100 x 1100	1275 x 1275
Cover in mm	5/7
Frame height in mm	38
Outer frame in mm	745 x 745	945 x 945	1145 x 1145	1345 x 1345
Clear frame in mm	635 x 635	835 x 835	1035 x 1035	1235 x 1235
Stiffening in mm	7
Stiffening height in mm	80
Stiffening quantity	1	2	2	3
Concrete anchors, pieces	4	4	8	8
