KRASO Pump Sump - concrete -

for collecting waste water | DafStB waterproof concrete guideline: stress class 1 + 2

Saves time and money

+ Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!

+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!

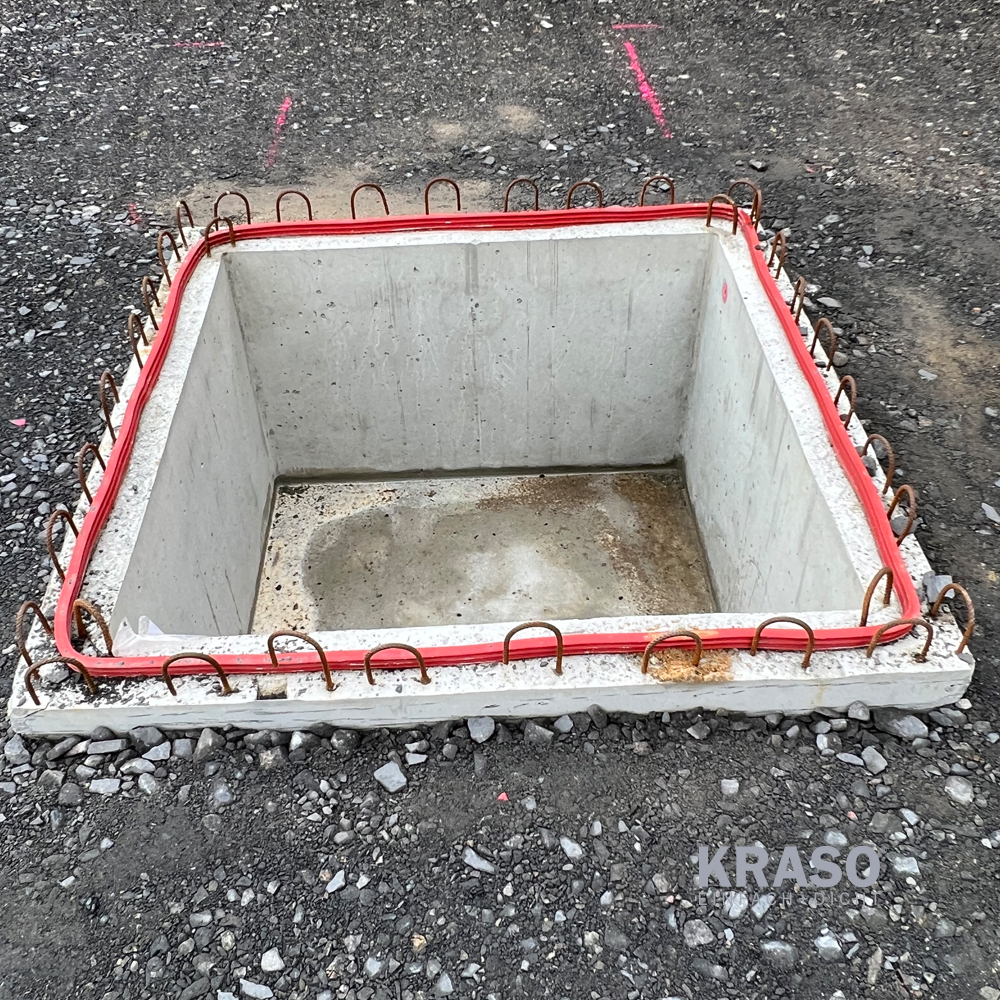

+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate

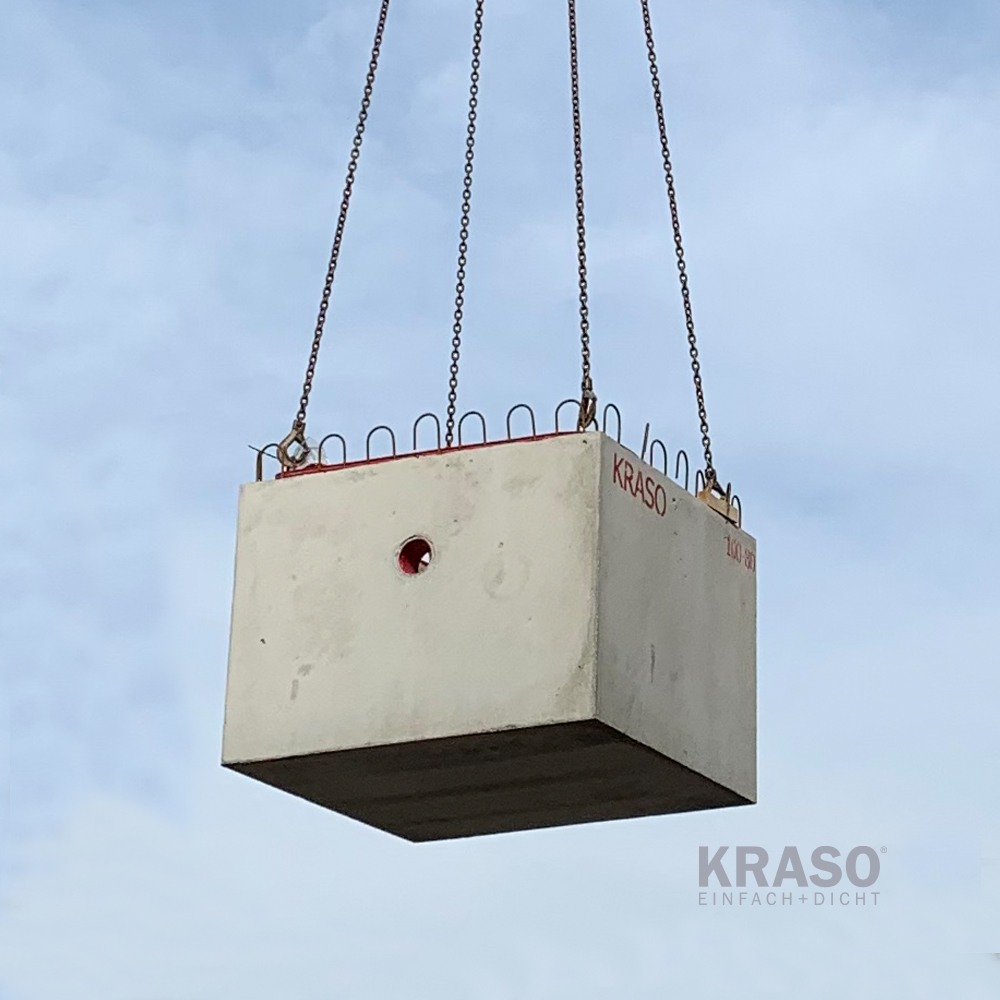

+ Simple and fast placement on-site thanks to crane lifting lugs!

+ DafStB waterproof concrete guideline: stress class 1 + 2

Info

Further sizes and connections available as special design on request!

Downloads

KRASO Pumpensumpf - Beton -

Datenblatt KRASO Pumpensumpf - Beton -

Montageanleitung KRASO Pumpensumpf Beton

Produktinfo KRASO Pumpensumpf - Beton -

Prüfbericht KRASO Duo Fix 150 plus

Prüfbericht KRASO Pumpensumpf Beton

Statik KRASO Pumpensumpf Beton 12er

KRASO Pump Sump - concrete -
			Position and diameter of the connection
Internal dimensions (l x w x h, in cm)	Weight approx. in kg	Design	h1 (in cm)	h2 (in cm)	h3 (in cm)	h4 (in cm)	KRASO Pump Sump - concrete -
60 x 60 x 40	600	standard	15 - DN 110				596 €
60 x 60 x 40	600	closed					596 €
60 x 60 x 60	700	standard	40 - DN 110	20 - DN 110			656 €
60 x 60 x 60	700	with one connection	40 - DN 110				656 €
60 x 60 x 60	700	closed					656 €
80 x 80 x 70	1.100	standard	20 - DN 160	30 - DN 160	20 - DN 160	40 - DN 110	896 €
80 x 80 x 70	1.100	with one connection				40 - DN 110	896 €
80 x 80 x 70	1.100	closed					896 €
100 x 100 x 80	1.500	standard	50 - DN 160	40 - DN 160	20 - DN 160	40 - DN 110	994 €
100 x 100 x 80	1.500	with one connection				40 - DN 110	994 €
100 x 100 x 80	1.500	closed					994 €
100 x 100 x 100	1.750	standard				40 - DN 110	1.355 €
100 x 100 x 100	1.750	closed					1.355 €
120 x 120 x 80	1.800	standard	50 - DN 160	20 - DN 160	40 - DN 160	40 - DN 110	1.505 €
120 x 120 x 80	1.800	with one connection				40 - DN 110	1.505 €
120 x 120 x 80	1.800	closed					1.505 €
		Surcharge special design with standard internal dimensions*
connection DN 110		71 €
connection DN 125		80 €
connection DN 160		88 €
		*Calculation basis = closed pump sump

Downloads auf ausschreiben.de

KRASO Pump Sump Poly 400

for collecting waste water, with water pressure tight surrounding, thermally welded KRASO 4 Seal, shear key and pipe connection DN 110, suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2Light and tight+ Light and water pressure tight solution for sewage free of faeces - for new buildings or rehabilitation!+ Saves time and money: simple installation due to light weight - no additional formwork or concreting sections for several days required!+ Without higher risks occurring by leaky concreting joints and/or pipe connections! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Pump Sump Type Q - square -

for collecting waste water suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2Low weight - quick delivery: the simple and tight plastic solution+ Low weight = low transport costs and easy handling without crane on-site+ Saves time, labour, money and additional drainage: no cost-intensive works, no concreting sections for several days, no shuttering!+ No risk occuring due to leaking concrete joints and/or pipe connections+ Resistance against many acids and lyes!+ Made of high-quality, impact resistant, almost indestructible plastic. Special dimensions are available within a few days! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Inspection Shaft - concrete -

as maintenance opening, made of waterproof concrete (C35/45), with 12 cm strong, reinforced walls in one piece cast, with surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus“, rebar connection 8/15 and crane lifting lugs for easy placement on-site, incl. 2 opposite KRASO Pipe Connections DN 160 bottom edge approx. 20 cm, suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2 Saves time and money - in one piece cast + Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to the crane lifting lugs! + DafStB waterproof concrete guideline: stress class 1 + 2

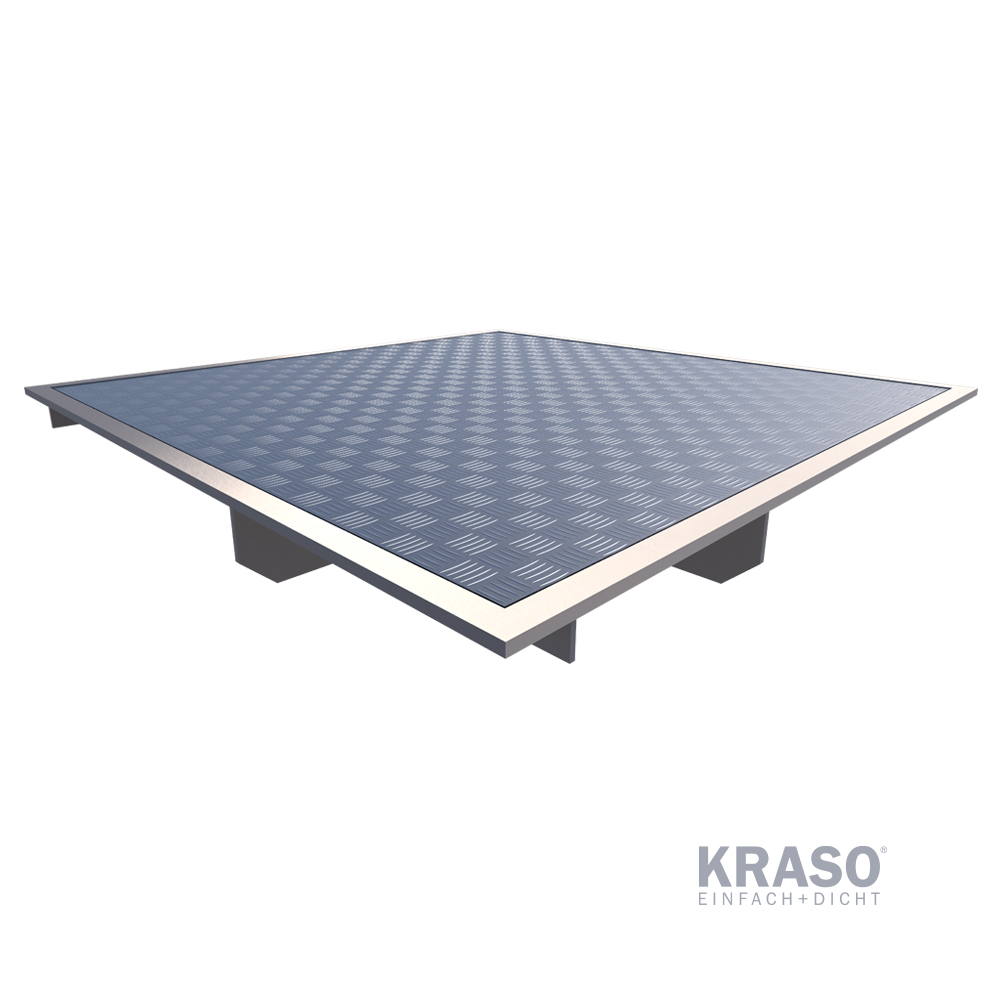

KRASO Pump Sump Cover - fit for traffic up to 15 t, wheel pressure up to 3,75 t
