KRASO Protrusion Flange FDS 150

protrusion flange made of plastic, reinforced by stainless steel, for dowel-fixing in front of a core hole for the connection of KRASO System Cover 150 with hose adapter for KRASO FLS, KRASO System Sealing Insert KDS 150 | DafStB waterproof concrete guidline: Stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E

Compatible, tight, secure - the cable penetration double sealing system

+ Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material!

+ The intelligent, all-purpose and flexible cable penetration system for complex construction projects:

public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors.

+ Almost unlimited possibilities due to the modern building equipment: horizontal and vertical combination, installation at an angle of 45° is possible with preassembled clamps, also available for precast walls or as integration into the sealing of larger areas.

+ A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package!

+ DafStB waterproof concrete guidline: Stress class 1 + 2

Info

Scope of supply:

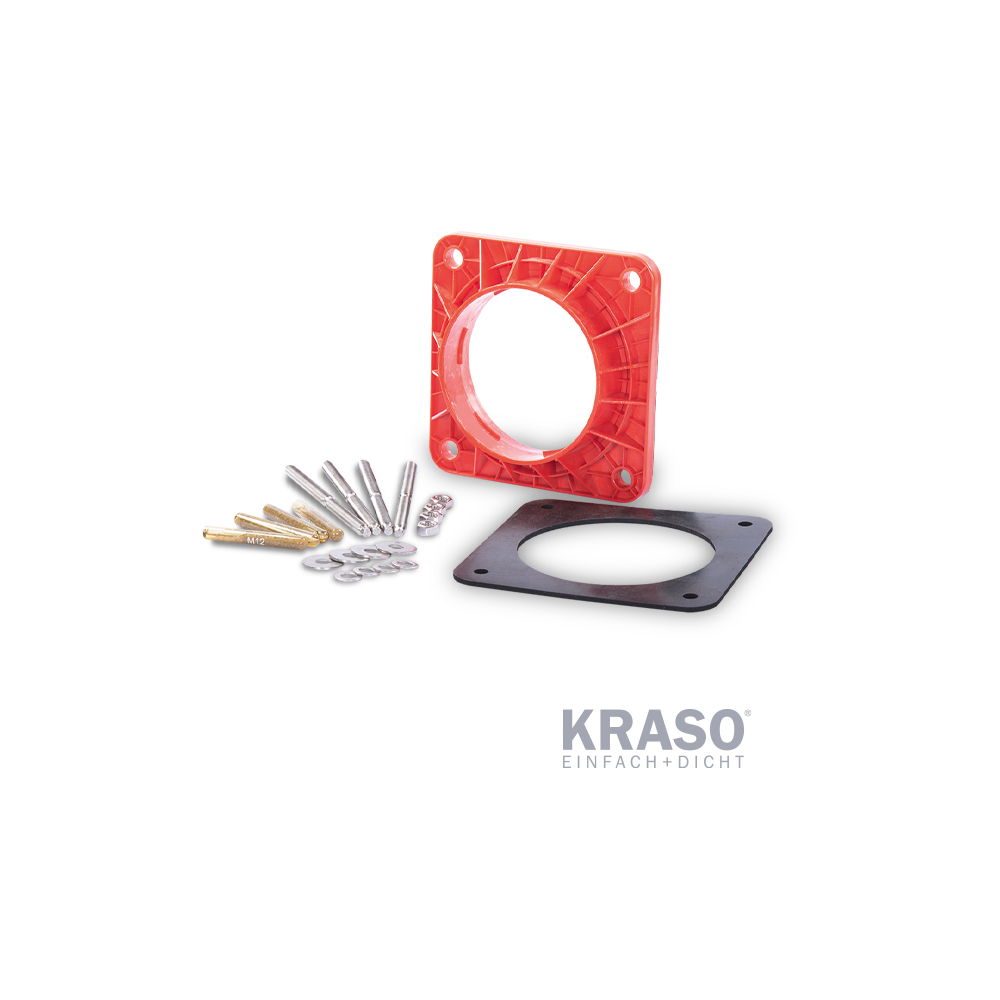

KRASO Protrusion Flange FDS 150 with EPDM flat seal and fixing material, adhesive sealant KRASO PU 50

Downloads

Produktinformation

Produktinfo_KRASO_Kabeldurchführung_Vorbauflansch_FDS_150 (939.58 KiB)

Prüfzeugnis

Prüfzeugnis_KRASO_FDS_150_Beton (741.94 KiB)
Prüfzeugnis_KRASO_FDS_150_Bitumendickbeschichtung (765.6 KiB)

Montageanleitung

Montageanleitung_KRASO_Vorbauflansch_FDS_150 (2.11 MiB)

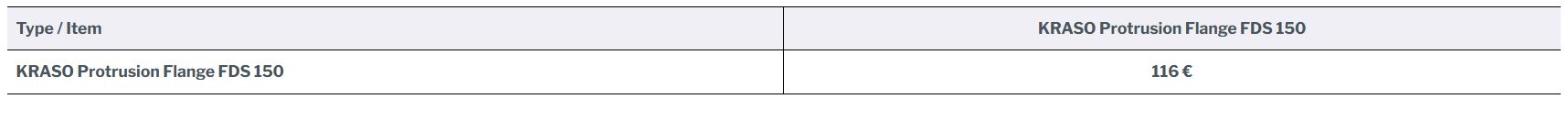

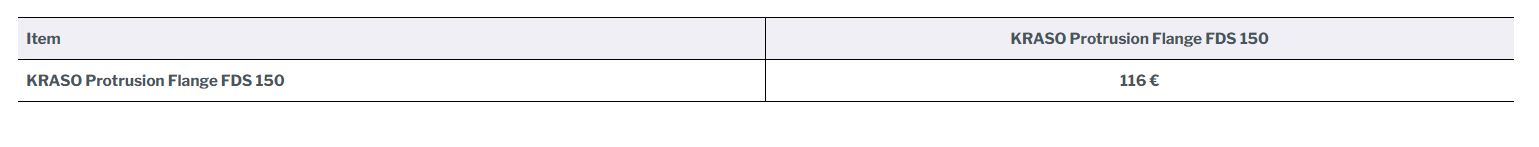

Type / Item

KRASO Protrusion Flange FDS 150
