KRASO Plastic Flange Plate Type KFP
KRASO Plastic Flange Plate Type KFP
for installation of pipes or cables using a sealing insert (not included in the delivery), no core drilling required, EPDM flat seal, ID = InternalDiameter
| DafStB waterproof concrete guideline: Stress class 1 + 2
The flange plate made of high-strength special plastic
+ Due to changes in the groundwater level the rehabilitation of old buildings and the sealing of basements become necessary from time to time. Existing pipes and cables should also be sealed using the latest technology.
+ The sealing of the media lines inside the plastic flange plate is completed by using a split sealing insert.
+ DafStB waterproof concrete guideline: Stress class 1 + 2, with foil flange DIN 18533 W1 -E and W2.1 -E
Info
Scope of supply:
KRASO Plastic Flange Plate Type KFP or KRASO Plastic Flange Plate Type KFP - Foil Flange, EPDM flat seal to the component and fixing material, adhesive and sealant KRASO PU 50
KRASO Plastic Flange Plate Type KFP or KRASO Plastic Flange Plate Type KFP - Foil Flange, EPDM flat seal to the component and fixing material, adhesive and sealant KRASO PU 50
Further sizes and diameters available on request!
Downloads
Produktinformation
Datenblatt
Prüfzeugnis
-
Product_Information_KRASO_Plastic_Flange_Plate_KFP (362.51 KiB)
-
Data Sheet_KRASO_Plastic Flange Plate_Type_KFP (702.93 KiB)
-
Datenblatt_KRASO_Kunststoffflanschplatte_Typ_KFP (311.21 KiB)
-
Prüfbericht_KRASO_Typ_KFP (754.96 KiB)
|

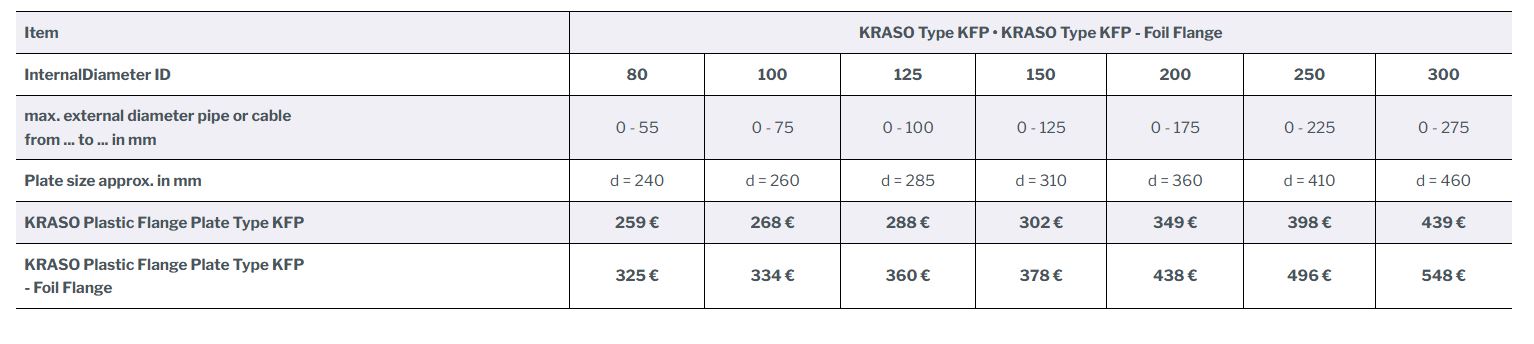

Type / Item |
KRASO Type KFP • KRASO Type KFP - Foil Flange |
||||||
|
InternalDiameter ID |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
max. external diameter pipe or cable |
0 - 55 |
0 - 75 |
0 - 100 |
0 - 125 |
0 - 175 |
0 - 225 |
0 - 275 |
|
Plate size approx. in mm |
d = 240 |
d = 260 |
d = 285 |
d = 310 |
d = 360 |
d = 410 |
d = 460 |
|
KRASO Plastic Flange Plate Type KFP |
259 € |
268 € |
288 € |
302 € |
349 € |
398 € |
439 € |
|
KRASO Plastic Flange Plate Type KFP |
325 € |
334 € |
360 € |
378 € |
438 € |
496 € |
548 € |
KRASO PU 50
high-quality, permanently elastic and strong PU-sealant, also suitable on moist surface, recommended for all products with KRASO Foil Flange, colour black
KRASO Plastic Flange Plate Type KFP - split -
for installation of pipes or cables using a sealing insert (not included in the scope of supply), ID = InternalDiameter | DafStB waterproof concrete guideline: stress class 1 + 2
A proven solution reinvented+ Like a "split casing": The flange plate made of high-strength plastic can be installed retrospectively.
+ No core drilling: no need for the separation of media lines for installation!
+ Installation in front of a wall made of waterproof concrete (WU) or as KRASO Type KFP with foil flange in front of a wall with sealing of larger areas.
+ Easy installation by just one person thanks to the low weight!+ Latest CNC production technology: absolute dimensional compliance - no tolerances like they are are usual with solutions involving metal.
+ Tongue and groove system: the two halves of the plastic flange plate pull together with 100% accurate fit automatically. Installation errors are thus avoided due to this innovation!
+ Subsequent sealing of the media lines in the plastic flange plate using KRASO Sealing Insert.
+ DafStB waterproof concrete guideline: Stress class 1 + 2, with foil flange DIN 18533 W1 -E and W2.1 -E
KRASO Plastic Flange Plate Type KFP - multiple
for installation of pipes or cables using sealing insert (not included in the delivery), core drillings are not required, a simple opening or recess in the wall is enough, against pressing water up to 3,0 bar, plate made of 60 mm thick, high-strength special plastic, EPDM flat seal, ID = InternalDiameterKRASO Plastic Flange Plate Type KFP - multiple / multiple split+ The flange plate made of high-strength plastic can be installed retrospectively.
+ Installation in front of a wall made of waterproof concrete (WU) or in front of a wall with sealing of larger areas.
+ Subsequent sealing of the media lines in the plastic flange plate using KRASO Sealing Insert. Also available as split version!
