KRASO Foil Clamping Flange Type FKF Universal
KRASO Foil Clamping Flange Type FKF Universal
for the sealing of media of all kinds of materials in front of a wall or in the ore drilling, with foil flange 1,2 mm, according DIN 16937, oil- and bitumen resistant, surrounding approx. 15 cm, 40 mm seal, against pressing water up to 1,5 bar, Torque Control Nut KRASO DKM, non-corrosive stainless steel V2A
|
DIN 18533 W1 -E and W2.1 -E
The revolution in terms of the integration of media lines into the sealing of larger areas
+ Innovative: water pressure tight sealing of any even and stable pipe or cable with our KRASO Foil Clamping Flange FKF foil flange
+ Suitable for all external diameters of media lines and for all materials!
+ We can individually customise the type of sealing sheets or foils: e.g. PVC, EPDM, FPO, RESITRIX®, PP, PE, KRASO-Fol, PYE-PV 200 S5 etc .
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ Metal components made of non-corrosive stainless steel V2A.
+ For new building and rehabilitation! Various designs for almost every situation!
+ Simple and fast mounting!
+ MPA-tested: water pressure tight up to 2,5 bar!
+ Tested according to FHRK testing specification GE 101!
+ DIN 18533 W1 -E and W2.1 -E
Info
Scope of supply:
KRASO Foil Clamping Flange Type FKF Universal, adhesive and sealant KRASO PU 50, serrated spatula, pressure roller and pencil
Downloads
Produktinformation
Datenblatt
Prüfzeugnis
Montageanleitung
DWG-Dateien
-
Data_Sheet_KRASO_Foil_Clamping_Flange_Type_FKF_Uni (638.44 KiB)
-
FHRK-Zertifikat_KRASO_Dichteinsätze (314.74 KiB)
-
TestCertificate_KRASO_Sealing_Insert_FHRK (1.61 MiB)
-
Prüfbericht_KRASO_Typ_FKF (821.24 KiB)
-
Prüfzeugnis_KRASO_Dichteinsatz_Universal_DD_zv (239.95 KiB)
-
Montageanleitung_KRASO_Dichteinsätze (787.71 KiB)
|

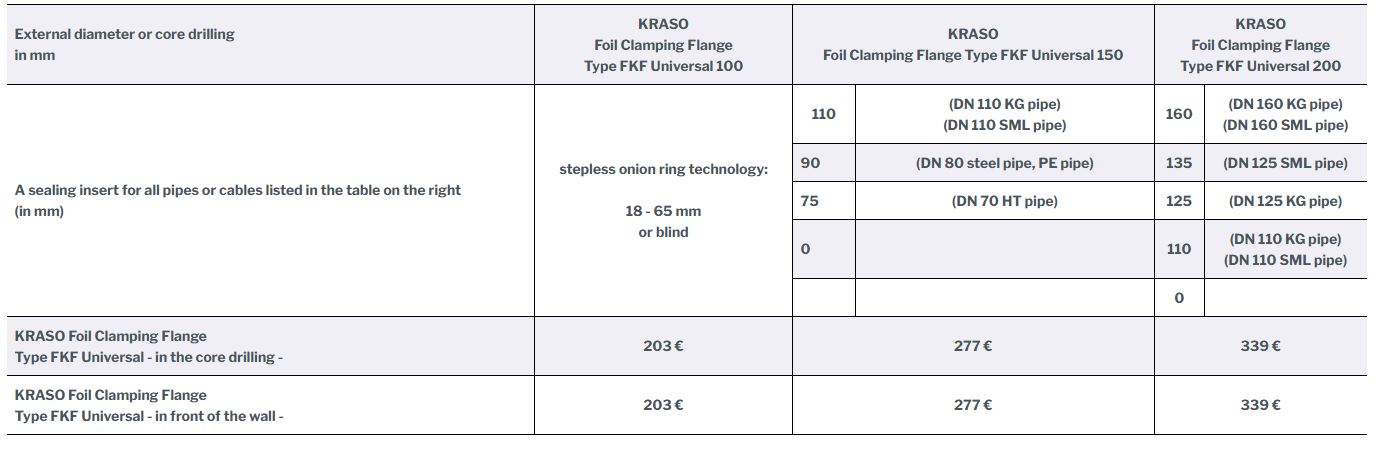

External diameter FKF or core hole in mm |
KRASO Foil Clamping Flange Type FKF |
KRASO Foil Clamping Flange Type FKF |
KRASO Foil Clamping Flange Type FKF |
||
|
A sealing insert for all pipes or cables |
stepless onion ring technology
|
110 |
(DN 110 KG-pipe) (DN 110 SML-pipe) |
160 |
(DN 160 KG-pipe) (DN 160 SML-pipe) |
|
90 |
(DN 80 steel pipe, PE-pipe) |
135 |
(DN 125 SML-pipe) |
||
|
75 |
(DN 70 HT-pipe) |
125 |
(DN 125 KG-pipe) |
||
|
0 |
110 |
(DN 110 KG-pipe) (DN 110 SML-pipe) |
|||
|
0 |
|||||
KRASO PU 50
high-quality, permanently elastic and strong PU-sealant, also suitable on moist surface, recommended for all products with KRASO Foil Flange, colour black
KRASO Foil Clamping Flange Type FKF DD/GR
for the sealing of media of all kinds of materials in front of a wall or in the core drilling, with foil flange 1,2 mm, according to DIN 16937, oil- and bitumen resistant, surrounding approx. 15 cm, 40 mm specially soft seal, central pressure distribution plate for even pressure distribution with corrugated media pipes, against pressing water up to 1 bar, Torque Control Nut KRASO DKM, non-corrosive stainless steel V2A
|
DIN 18533 W1 -E and W2.1 -E
The revolution in terms of the integration of media lines into the sealing of larger areas
+ Innovative: water pressure tight sealing of any even and stable cable with our KRASO Foil Clamping Flange Type FKF foil flange!+ Suitable for all external diameters of media lines and for all materials!+ We can individually customise the type of sealing sheets or foils: e.g. PVC, EPDM, FPO, RESITRIX®, PP, PE, KRASO-Fol, PYE-PV 200 S5 etc.+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Metal components made of non-corrosive stainless steel V2A.+ For new buildings and rehabilitation! Various designs for almost every situation!+ Simple and fast mounting!+ MPA-tested: water pressure tight up to 2,5 bar!
+ Tested according to FHRK testing specification GE 101!+ DIN 18533 W1 -E and W2.1 -E
KRASO Foil Clamping Flange Type FKF
for the sealing of media of all kinds of materials in front of a wall or in the core drilling, with foil flange 1,2 mm, according DIN 16937, oil- and bitumen resistant, surrounding approx. 15 cm, 30 mm seal | DIN 18533 W1 -E and W2.1 -E
The revolution in terms of the integration of media lines into the sealing of larger areas+ Innovative: water pressure tight sealing of any even and stable cable with our KRASO Foil Clamping Flange Type FKF foil flange!+ Suitable for all external diameters of media lines and for all materials!
+ We can individually customise the type of sealing sheets or foils: e.g. PVC, EPDM, FPO, RESITRIX®, PP, PE, KRASO-Fol, PYE-PV 200 S5 etc.
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Metal components made of non-corrosive stainless steel V2A.
+ For new buildings and rehabilitation! Various designs for almost every situation!
+ Simple and fast mounting!
+ MPA-tested: water pressure tight up to 2,5 bar!+ Tested according to FHRK testing specification GE 101!+ DIN 18533 W1 -E and W2.1 -E
