KRASO FLS - Flexible Empty Pipe System
flexible empty pipe-system as a cable protective hose for gas- and water tight connection to KRASO Cable Penetration KDS, over-pressures of 4,0 and 3,0 bar respectively, under-pressures of 0,7 and 0,5 bar respectively, heavy version for severe mechanical stresses, with a smooth interior for smooth cable pulling, and a smooth exterior for optimal sealing, flexible, enhanced pressure and vacuum resistance, high axial resistance, resistant to alkalis and acids, resistant to brine and sea water, good UV and ozone resistance, gas-tight and liquid-tight, RoHS-compliant (Restriction of Hazardous Substances)
Appropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150
+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.
Appropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150
+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.
+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
Info
Scope of supply:
KRASO FLS
KRASO FLS
Downloads
Produktinformation
Datenblatt
Prüfzeugnis
DWG-Dateien
-
Produktinfo_KRASO_Kabeldurchführung_FLS (561.83 KiB)
-
Datenblatt_KRASO_Kabeldurchführung_FLS_110 (209.36 KiB)
-
Datenblatt_KRASO_FLS_zv (232.08 KiB)
-
Werksprüfzeugnis_KRASO_FLS (1.08 MiB)
-
DWG_KRASO_FLS_110_20m (245.29 KiB)

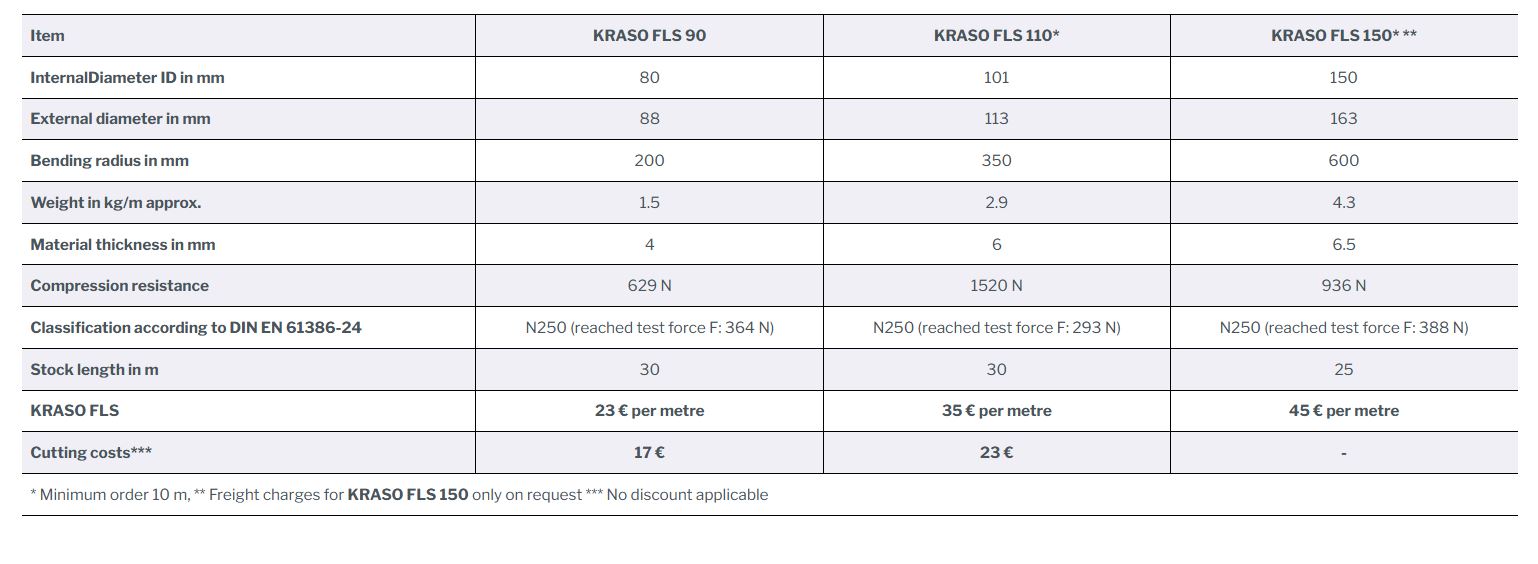

Type / Item |
KRASO FLS 90 |
KRASO FLS 110 |
KRASO FLS 150 |
InternalDiameter ID in mm |
80 |
101 |
150 |
External diameter in mm |
88 |
113 |
163 |
Bending radius in mm |
200 |
350 |
600 |
Weight in kg/m approx. |
1,5 |
2,9 |
4,3 |
Material thickness in mm |
4 |
6 |
6,5 |
Compression resistance |
629 N |
1520 N |
936 N |
Classification according to DIN EN 61386-24 |
N250 (reached test force F: 364 N) |
N250 (reached test force F: 293 N) |
N250 (reached test force F: 388 N) |
Stock length in m |
30 |
30 |
20 |
* order minimum 10 m, ** without discount |
![](https://www.kraso.de/media/f2/e3/f3/1698700254/Tabelle_KRASO_FLS_EN.jpg)
Cable Inlet Box KDS 150 - special
bending radius approx. 200 cm, for the secure connection of supply lines like e.g. water - electricity - telecommunication into buildings without basement. With installation device, empty pipe extension 20 cm and water pressure tight surrounding KRASO 4 Seal and 2 KRASO KDS Closure Covers
KRASO Cable Inlet Box System KDS 150
for the installation of cables and lines as for example water, electricity, telecommunication etc. into buildings without basement, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guidline: Stress class 1 + 2, optional with trowel flange DIN 18533 W1 -EThe flexible system for industry and commercial buildings+ KRASO Cable Inlet Box System KDS 150 offers you a secure and simple possibility to install cables and pipes right into buildings. Together with the KRASO Cable Penetration System KDS 150 this flexible system offers plenty of combinations. With a radius of 650 mm or 1000 mm you are able to connect pipes and cable protective hoses at a 90-degree angle to buildings without basements.+ Due to the variable plug-in system the KRASO Cable Inlet Box System KDS 150 can be combined to many different sizes - according your requirements.
+ For the installation of lines as e.g. water, electricity, telecommunication etc. into buildings without basement: the ideal solution for industrial and commercial buildings.
+ Sealing of the base plate by water pressure tight surrounding KRASO 4 Seal.
+ With stable installation device for correct positioning before concreting.
+ Flexible plug-in possibilities from the outside due to KRASO Cable Penetration System KDS 150.
+ Additional media line sealing from the inside using KRASO Sealing Inserts.
+ Including: KRASO KDS 150 Empty Pipe Insert with bayonet fitting for a floor construction with floor heating, insulation and screed. + DafStB waterproof concrete guidline: Stress class 1 + 2, optional with trowel flange DIN 18533 W1 -E
KRASO Cable Penetration KDS 150 as double wall penetration - 45 degrees -
with preassembled clamps and styrofoam holders for installation at an angle of 45°Compatible, tight, secure - the cable penetration double sealing system
+ Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material!
+ The intelligent, all-purpose and flexible cable penetration system for complex construction projects:
public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors.
+ Almost unlimited possibilities due to the modern building equipment: horizontal and vertical combination, installation at an angle of 45° is possible with preassembled clamps, also available for precast walls or as integration into the sealing of larger areas.
+ A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Cable Penetration FBV-KDS as double wall penetration
double wall penetration as cable penetration system for concreting, for the integration of fresh concrete composite film on the part of the building site using the clamping flange, incl. 20 cm sourrounding, angular FBV-sealing flange, incl. frame for an easy fixation, with plug-in system on both sides for forming packages, for later installation of media lines using KRASO System Sealing Insert KDS (not included in the delivery) or for connecting empty conduits using KRASO System Cover (not included in the delivery) | DafStB waterproof concrete guidline: Stress class 1 + 2
Double wall penetration as FBV-system
+ Cable penetration for a conformist integration of fresh concrete composite films.
+ Vendor independence: fresh concrete compound foils (FBV) of all vendors can be integrated.
+ KRASO FBV-Sealing Flange made of non-corrosive stainless steel V2A with angular fresh concrete composite film, surrounding 20 cm.
+ Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material!
+ The intelligent, all-purpose and flexible cable penetration system for complex construction projects:
public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors.
+ With plug-in system on both sides for forming packages.
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Cable Penetration KDS as double wall penetration
cable penetration system for concreting, with gas- and water pressure tight surrounding KRASO 4 Seal and 2 KDS closure covers, with plug-in system on both sides for forming packages, for later installation of media lines using KRASO System Sealing Insert (not included in the delivery) or for connecting empty conduits using KRASO System Cover (not included in the delivery).Optional available: KRASO Spacer 40 mm for KDS 150 double wall penetration for enlargement of the centre distance from 210 mm to 250 mm
| DafStB waterproof concrete guidline: Stress class 1 + 2
Compatible, tight, secure - the cable penetration double sealing system
+ Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material!
+ The intelligent, all-purpose and flexible cable penetration system for complex construction projects:
public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors.
+ Almost unlimited possibilities due to the modern building equipment: horizontal and vertical combination, installation at an angle of 45° is possible with preassembled clamps, also available for precast walls or as integration into the sealing of larger areas.
+ A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Cable Penetration KDS as single wall penetration
cable penetration system for concreting, with gas- and water pressure tight surrounding KRASO 4 Seal and KDS closure covers, with plug-in system on one side for forming packages, for later installation of media lines using KRASO System Sealing Insert (not included in the delivery) or for connecting empty conduits using KRASO System Cover (not included in the delivery).
Optional available: KRASO Spacer 40 mm for KDS 150 single wall penetration for enlargement of the centre distance from 210 mm to 250 mm| DafStB waterproof concrete guidline: Stress class 1 + 2
Compatible, tight, secure - the cable penetration double sealing system
+ Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material!+ The intelligent, all-purpose and flexible cable penetration system for complex construction projects:
public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors.
+ Almost unlimited possibilities due to the modern building equipment: horizontal and vertical combination, installation at an angle of 45° is possible with preassembled clamps, also available for precast walls or as integration into the sealing of larger areas.
+ A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Cable Penetration KDS 150 as double wall penetration with trowel flange
cable penetration system KDS 150 with trowel flange for a secure connection of bitumen coating (e.g. KMB), roughened or tissue coated, surrounding approx. 7 cm, with water pressure tight surrounding KRASO 4 Seal
| DafStB waterproof concrete guidline: Stress class 1 + 2, DIN 18533 W1 -E and W2.1 -ECompatible, tight, secure - the cable penetration double sealing system
+ Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material!
+ The intelligent, all-purpose and flexible cable penetration system for complex construction projects:
public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors.
+ Almost unlimited possibilities due to the modern building equipment: horizontal and vertical combination, installation at an angle of 45° is possible with preassembled clamps, also available for precast walls or as integration into the sealing of larger areas.
+ A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Cable Penetration KDS 150 as double wall penetration with trowel flange
cable penetration system KDS 150 with trowel flange for a secure connection of bitumen coating (e.g. KMB), roughened or tissue coated, surrounding approx. 7 cm, with water pressure tight surrounding KRASO 4 Seal
| DafStB waterproof concrete guidline: Stress class 1 + 2, DIN 18533 W1 -E and W2.1 -ECompatible, tight, secure - the cable penetration double sealing system
+ Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure by unbreakable solid wall material!
+ The intelligent, all-purpose and flexible cable penetration system for complex construction projects:
public buildings, hospitals, technical and scientific institutions or in industrial and commercial sectors.
+ Almost unlimited possibilities due to the modern building equipment: horizontal and vertical combination, installation at an angle of 45° is possible with preassembled clamps, also available for precast walls or as integration into the sealing of larger areas.
+ A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Spacer
guarantees sufficient distance between the flexible empty pipes, light, impact resistant, weather and rot-proof plastic spacerAppropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150
+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
