KRASO FLS 90 - Flexible Empty Pipe System
KRASO FLS 90 - Flexible Empty Pipe System

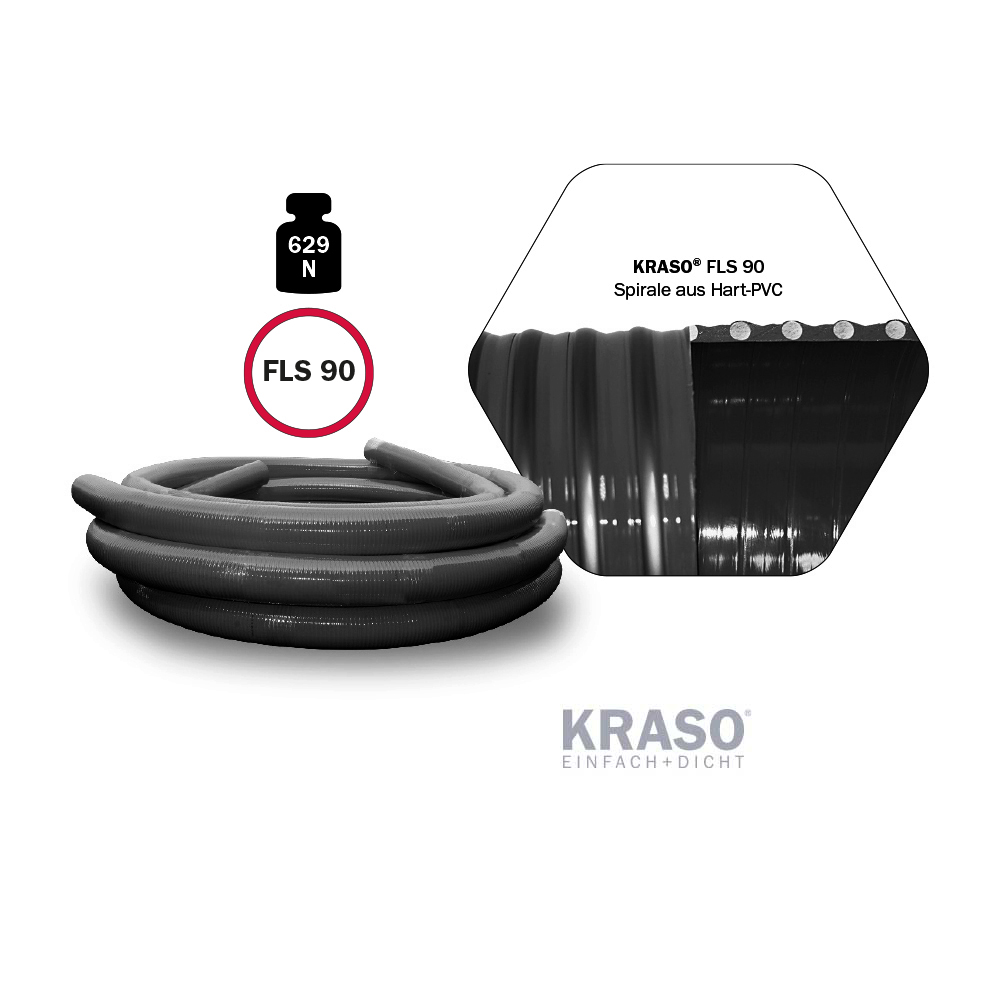

flexible empty pipe system as a cable protective hose for the extension of KRASO Builder's Convenience Box - floor using KRASO BKP - extension set, with a smooth interior for smooth cable pulling, and a smooth exterior for optimal sealing, flexible, enhanced pressure and vacuum resistance, high axial resistance, resistant to alkalis and acids, resistant to brine and sea water, good UV and ozone resistance, gas-tight and liquid-tight, RoHS-compliant (Restriction of Hazardous Substances), compression resistance 629 N, tests in line with DIN EN 61386-24 lead to the following classifications: Type 250 - Impact resistance: Normal - Classification code: N250
Accessories for the multi house connection for gas, water, electricity and telecommunication
+ The convenient solution for builders: for the installation of gas, water, electricity and telecommunication lines into buildings without basement!
+ Hose as extension of the KRASO Builder's Convenience Box - floor - 90
+ New hose diameter: external 88 mm - internal 80 mm!
Info
Scope of supply
KRASO FLS 90
KRASO FLS 90
Downloads
Produktinformation
Datenblatt
-
Produktinfo_KRASO_fls_90 (988.23 KiB)
-
Datenblatt_KRASO_FLS_zv (232.08 KiB)
|

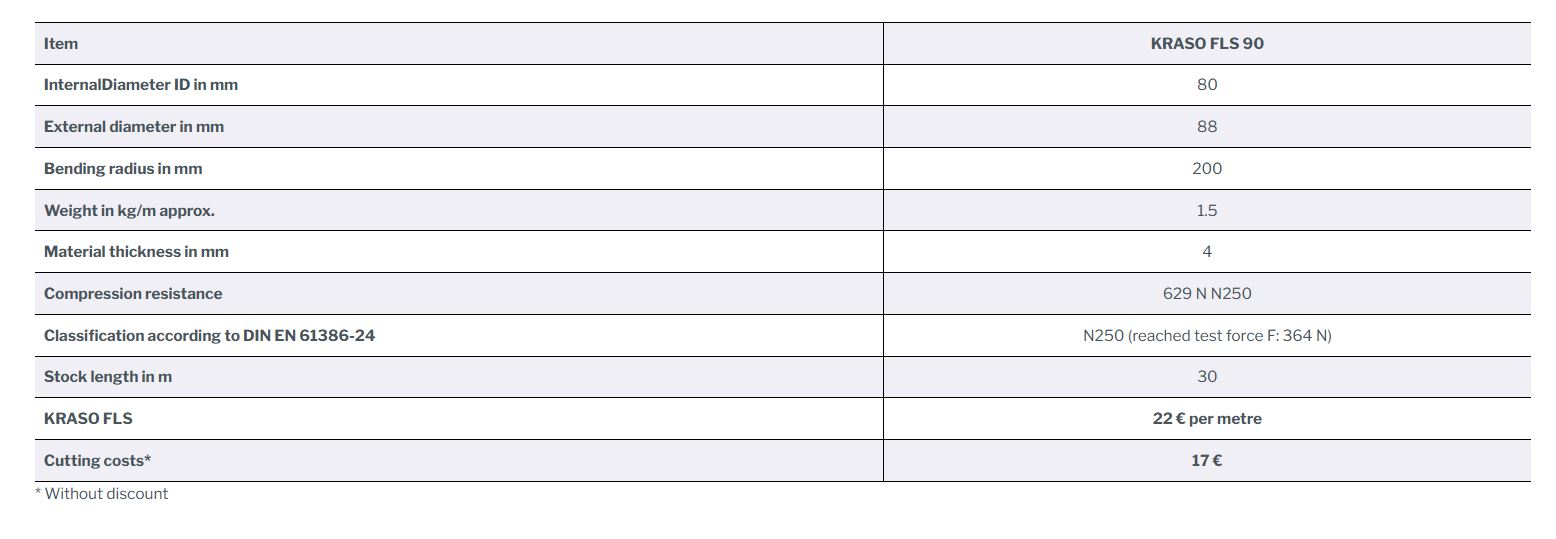

Type / Item |
KRASO FLS 90 |
|
InternalDiameter ID in mm |
80 |
|
External diameter in mm |
88 |
|
Bending radius in mm |
200 |
|
Weight in kg/m approx. |
1,5 |
|
Material thickness in mm |
4 |
|
Compression resistance |
629 N N250 |
|
Classification according to DIN EN 61386-24 |
N250 (reached test force F: 364 N) |
|
Stock length in m |
30 |
