KRASO Floor Penetration Type FBV-BDF

floor penetration for a conformist integration of FBV-films, made of high-quality, dimensionally and pressure stable solid wall material or KG 2000 (polypropylene (PP), mineral- filled, smooth walls, long-lasting, high impact strength), for installation in waterproof concrete base plates with fresh concrete composite film on the part of the building site, using the 20 cm sourrounding, angular FBV-sealing flange, Torque Control Nut KRASO DKM, for connection to KG, HT or KG 2000 lines, approx. 50 cm long, with water pressure tight surrounding KRASO 4 Seal, formed plug-in sleeve on one side and KRASO Cover as installation aid | DafStB waterproof concrete guidline: Stress class 1 + 2

The effective sealing system

+ Floor Penetration for a conformist integration of fresh concrete composite films.

+ Vendor independence: fresh concrete composite films (FBV) of all vendors can be integrated.

+ KRASO FBV-Sealing Flange made of non-corrosive stainless steel V2A with angular fresh concrete composite film, surrounding 20 cm.

+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!

+ KRASO Floor Penetration Type BDF: the approved floor penetration with KRASO 4 Seal - MPA-tested up to 10 bar! Radon-tight!

+ Made of dimensionally and pressure stable solid wall material with low abrasion! Easy installation at low temperatures.

+ Also available as KG 2000 made of polypropylene (PP), mineral- filled, smooth walls, long-lasting.

+ Formed plug-in sleeve on one side for the connection of KG, HT or KG 2000 - pipes.

+ Including KRASO Cover as an installation aid.

+ DafStB waterproof concrete guidline: Stress class 1 + 2

Info

Scope of supply:

KRASO Type FBV-BDF or KRASO Type FBV-BDF - KG 2000, KRASO Cover as an installation aid, KRASO FBV-Sealing Flange with angular fresh concrete composite film, surrounding 20 cm

Downloads

Produktinformation

Produktinfo_KRASO_FBV_Lösungen_Typ_FBV_BDF (751.59 KiB)

Datenblatt

Datenblatt_KRASO_Bodendurchführung_Typ_FBV_BDF_zv (231.22 KiB)

Prüfzeugnis

Prüfzeugnis_KRASO_Typ_FKF_vdW_SikaProof (815.66 KiB)
Prüfbericht_KRASO_Vierstegdichtung_TPE (310.25 KiB)
Prüfbericht_KRASO_Vierstegdichtung (606.1 KiB)
Prüfbericht_KRASO_Vierstegdichtung_PVC (310.56 KiB)

Montageanleitung

Montageanleitung_KRASO_Typ_FBV_BDF (3.6 MiB)

DWG-Dateien

DWG_KRASO_Bodendurchführung_Typ FBV-BDF - DN110 (894.68 KiB)

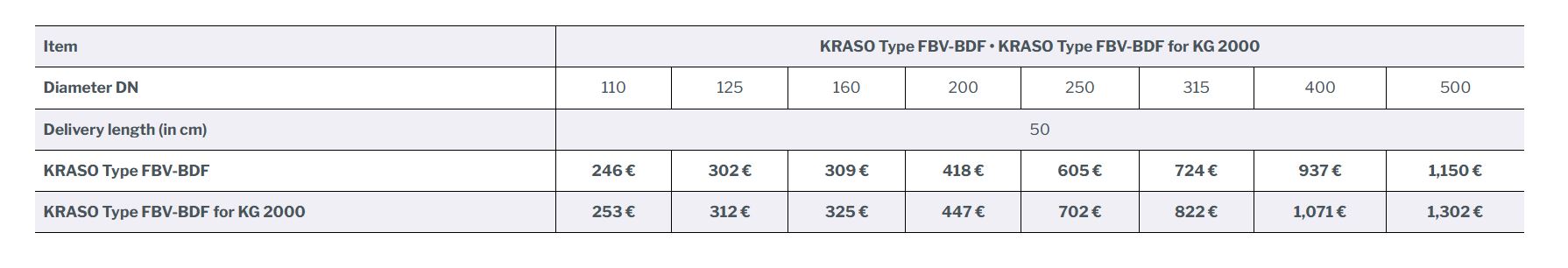

Type / Item	KRASO Type FBV-BDF • KRASO Type FBV-BDF - KG 2000
Diameter DN	110	125	160	200	250	315	400	500
Delivery length (in cm)	50
