KRASO Floor Penetration Type FBV-BDF
KRASO Floor Penetration Type FBV-BDF
floor penetration for a compliant integration of fresh concrete composite films (FBV) | DafStB waterproof concrete guideline: stress class 1 + 2
+ KRASO Floor Penetration Type BDF: the proven floor penetration with KRASO 4 Seal - MPA-tested up to 10 bar!
+ DafStB waterproof concrete guideline: stress class 1 + 2
The effective sealing system
+ Floor Penetration for an integration into fresh concrete composite sealing in compliance with the system
+ Independent of the manufacturer: fresh concrete composite films (FBV) from any manufacturer can be integrated into the system at the factory
+ KRASO FBV Sealing Flange made of non-corrosive stainless steel V2A with 20 cm surrounding, square fresh concrete composite film
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ KRASO Floor Penetration Type BDF: the proven floor penetration with KRASO 4 Seal - MPA-tested up to 10 bar!
+ IAF-tested: radon-tight!
+ Made of dimensionally and pressure stable solid wall material with low abrasion! Installation even at lower temperatures!
+ Formed plug-in sleeve on one side for the connection of KG, HT or KG 2000 - pipes
+ Including KRASO Cover as building period protective cover
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASO Type FBV-BDF or KRASO Type FBV-BDF - KG 2000, KRASO Cover as building period protective cover, KRASO FBV Sealing Flange with 20 cm surrounding, square fresh concrete composite film
KRASO Type FBV-BDF or KRASO Type FBV-BDF - KG 2000, KRASO Cover as building period protective cover, KRASO FBV Sealing Flange with 20 cm surrounding, square fresh concrete composite film
Downloads
KRASO Bodendurchführung Typ FBV-BDF
|

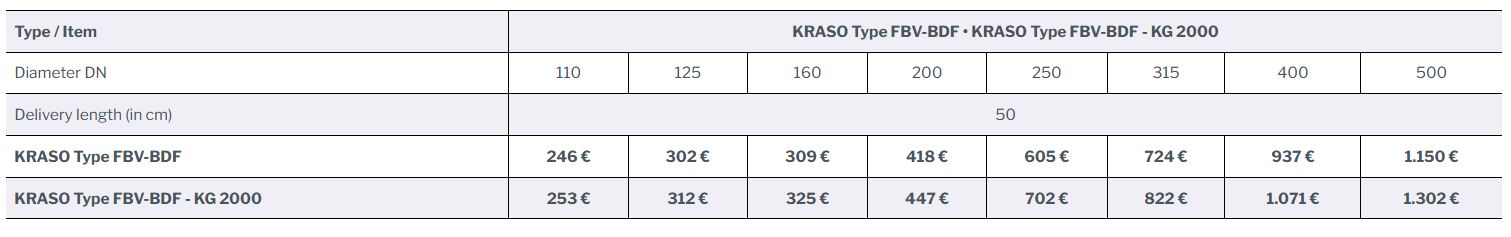

Type / Item |
KRASO Type FBV-BDF • KRASO Type FBV-BDF - KG 2000 |
|||||||
|
Diameter DN |
110 |
125 |
160 |
200 |
250 |
315 |
400 |
500 |
|
Delivery length (in cm) |
50 |
|||||||
|
KRASO Type FBV-BDF |
246 € |
302 € |
309 € |
418 € |
605 € |
724 € |
937 € |
1.150 € |
|
KRASO Type FBV-BDF - KG 2000 |
253 € |
312 € |
325 € |
447 € |
702 € |
822 € |
1.071 € |
1.302 € |
