KRASO Floor Drain
KRASO Floor Drain
according DIN EN 1253 - for the installation in interior areas without traffic, for the drainage of grey water, drainage capacity: 1,79 l/s, with water pressure tight surrounding KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
Inside and outside - tight and dry
+ For interior areas, for basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of water! Radon-tight!
+ Walkable and fit for traffic, frost proof and odour tight, backwater safe and thermally insulated: manifold versions for different needs!
+ High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic- or stainless steel grates.
+ Additional accessories as completion for individual needs.
+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
Info
Scope of supply:
KRASO Floor Drain, plastic grate class K3, odour stopper, sludge trap filter, building period protective cover • KRASO Floor Drain with foil flange, plastic grate class K3, odour stopper, sludge trap filter, building period protective cover
KRASO Floor Drain, plastic grate class K3, odour stopper, sludge trap filter, building period protective cover • KRASO Floor Drain with foil flange, plastic grate class K3, odour stopper, sludge trap filter, building period protective cover
Downloads
Produktinformation
Datenblatt
Prüfzeugnis
DWG-Dateien
-
Produktinfo_KRASO_Bodenablauf (1.15 MiB)
-
Datenblatt_KRASO_Bodenablauf (266.24 KiB)
-
Prüfbericht_KRASO_Vierstegdichtung_PVC (310.56 KiB)
-
Prüfbericht_KRASO_Vierstegdichtung (606.1 KiB)
-
DWG_KRASO_Bodenablauf (4.13 MiB)
|

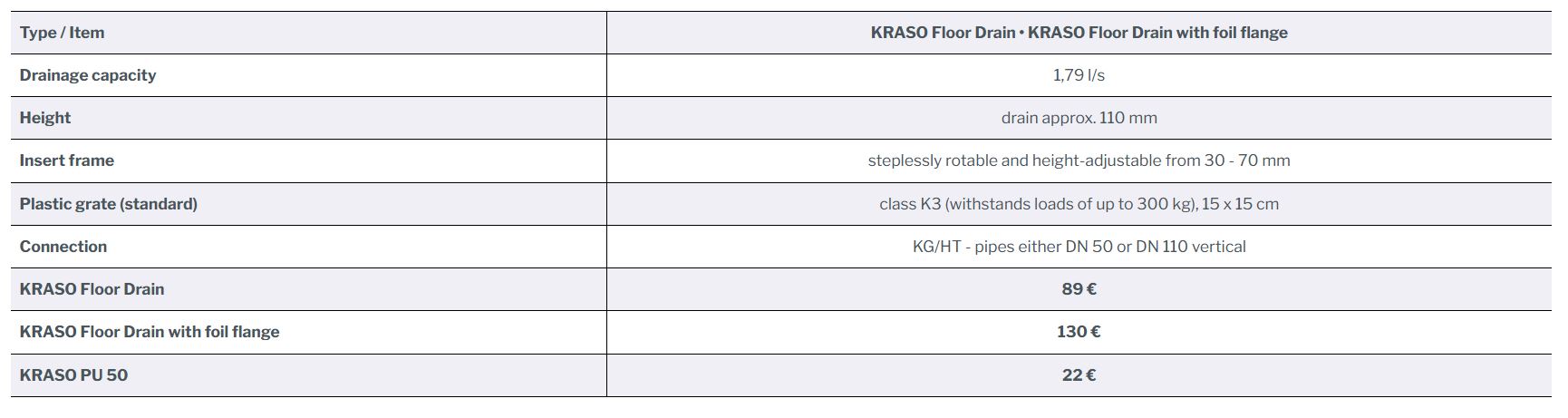

Type / Item |
KRASO Floor Drain • KRASO Floor Drain with foil flange |
|
Drainage capacity |
1,79 l/s |
|
Height |
drain approx. 110 mm |
|
Insert frame |
from 30 - 70 mm can be rotated and is fully height-adjustable |
|
Plastic grate |
class K3 (withstands loads of up to 300 kg), 15 x 15 cm |
|
Connection |
KG/HT - pipes either DN 50 or DN 110 vertical |
KRASO Floor Drain Type FS - frost proof
for the installation in outdoor areas without traffic, for the drainage of grey water, drainage capacity: 1,67 l/s, with water pressure tight surrounding KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
Inside and outside - tight and dry
+ For interior areas, for basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of water! Radon-tight!
+ Walkable and fit for traffic, frost proof and odour tight, backwater safe and thermally insulated: manifold versions for different needs!
+ High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic- or stainless steel grates.+ Additional accessories as completion for individual needs.+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Floor Drain Type FS - KG 2000 - frost proof
for the installation in outdoor areas without traffic, for the drainage of grey water, drainage capacity: 1,67 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
Inside and outside - tight and dry
+ For interior areas, for basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of water! Radon-tight!
+ Walkable and fit for traffic, frost proof and odour tight, backwater safe and thermally insulated: manifold versions for different needs!
+ High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic- or stainless steel grates.+ Additional accessories as completion for individual needs.+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Yard-/Parking Level Drain
for installation in areas with traffic, drainage capacity: 4,3 l/s according DIN EN 1253, with water pressure tight surrounding, thermally welded KRASO 4 Seal
The high-performance drain for e.g. underground car parks
+ KRASO Yard-/Parking Level Drain with 4,3 l/s drainage capacity according DIN EN 1253.
+ With frost proof odour barrier and removable sand trap basket.
+ Load class A up to 1,5 t or load class B up to 12,5 t.
+ Connection either for KG/HT or KG 2000 pipes DN 110.
+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!
KRASO PU 50
high-quality, permanently elastic and strong PU-sealant, also suitable on moist surface, recommended for all products with KRASO Foil Flange, colour black
KRASO Floor Drains - Accessories
accessories for KRASO Floor Drains+ Insert frame extension height > 140 mm
+ Insert frame extension with foil flange height > 140 mm, foil flange (d = approx. 50 cm)+ Insert frame extension - fit for traffic up to 1,5 t can be rotated and is height-adjustable from 15 - 120 mm, all visible parts are made of stainless steel, stable stainless steel grate massive, screwed, 150 x 150 mm, fit for traffic up to 1,5 t, L 15+ Insert frame all visible parts are made of stainless steel incl. stainless steel grate+ Stainless steel grate class K3+ Stainless steel grate - screwable - incl. insert frame with threaded sleeves+ Raising element for thin-bed mortar screed structure height from 25 - 130 mm+ Spare parts kit consisting of: backflow seal, odour stopper, sludge trap filter, insert frame and plastic grate+ Floor Drain insert frame with building period protective cover suitable for industry floors
