KRASO Floor Drain Type FS - RS - frost proof - backwater safe
KRASO Floor Drain Type FS - RS - frost proof - backwater safe
for the installation in outdoor areas without traffic, for the drainage of grey water, drainage capacity: 0,4 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50.
| DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
Frost proof - backwater safe
+ For installation in outdoor areas without traffic, for the drainage of grey water, drainage capacity:
0,4 l/s.
0,4 l/s.
+ All year use due to its frost proof backwater double stopper.
+ KG 2000: high impact strength and persistence.
+ Screwable stainless steel grate: class K3 up to max. 300 kg.
+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
Info
Scope of supply:

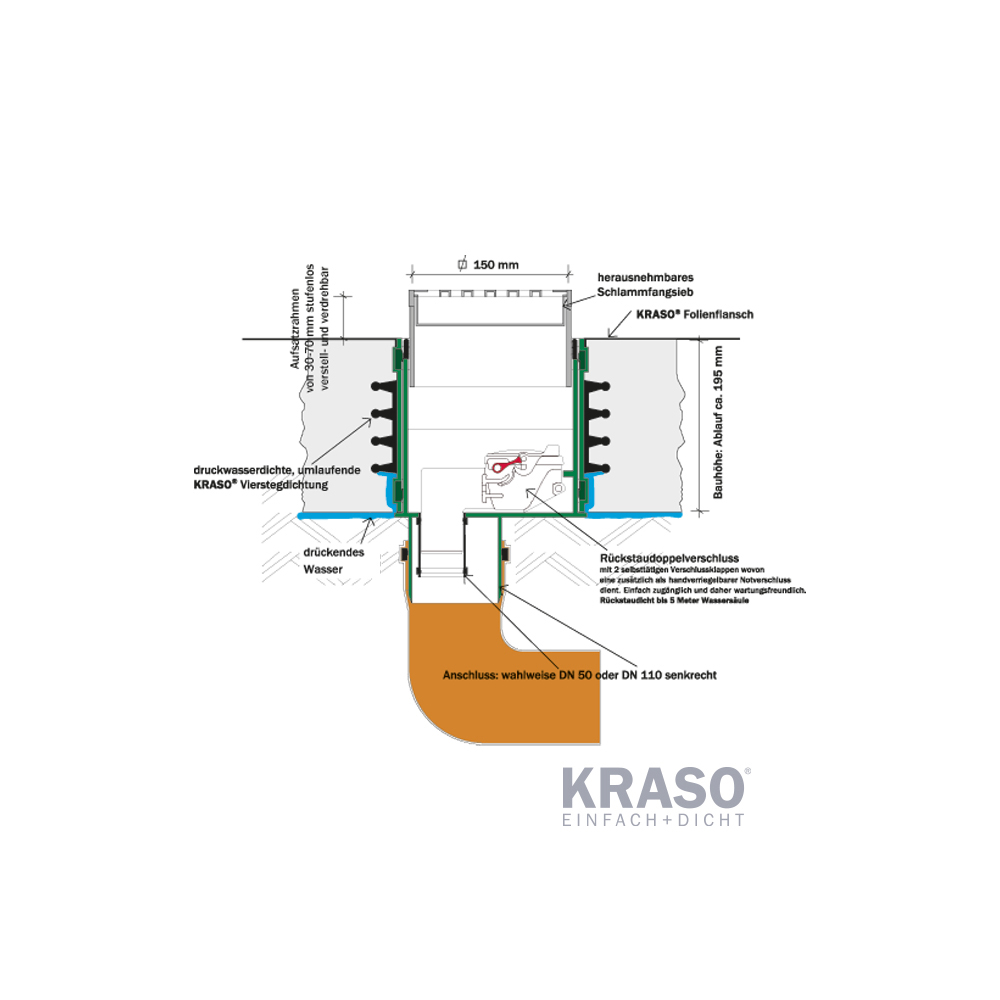

KRASO Floor Drain Type FS - RS, screwable stainless steel grate class K3, frost proof backwater double stopper, with 2 automatically sealing claps, one of them serves as emergency valve which can be closed by hand, sludge trap filter and building period protective cover • KRASO Floor Drain Type FS - RS with KRASO Foil Flange, screwable stainless steel grate class K3, frost proof backwater double stopper, with 2 automatically sealing claps, one of them serves as emergency valve which can be closed by hand, sludge trap filter and building period protective cover
KRASO Floor Drain Type FS - RS, screwable stainless steel grate class K3, frost proof backwater double stopper, with 2 automatically sealing claps, one of them serves as emergency valve which can be closed by hand, sludge trap filter and building period protective cover • KRASO Floor Drain Type FS - RS with KRASO Foil Flange, screwable stainless steel grate class K3, frost proof backwater double stopper, with 2 automatically sealing claps, one of them serves as emergency valve which can be closed by hand, sludge trap filter and building period protective cover
Downloads
Produktinformation
Datenblatt
Prüfzeugnis
DWG-Dateien
-
Produktinfo_KRASO_Bodenablauf_Typ_FS_RS (927.71 KiB)
-
Datenblatt_KRASO_Bodenablauf_Typ_FS_RS (264.01 KiB)
-
Prüfbericht_KRASO_Vierstegdichtung (606.1 KiB)
-
Prüfbericht_KRASO_Vierstegdichtung_TPE (310.25 KiB)
-
DWG_KRASO_Bodenablauf_Typ_FS-RS (454.86 KiB)
|

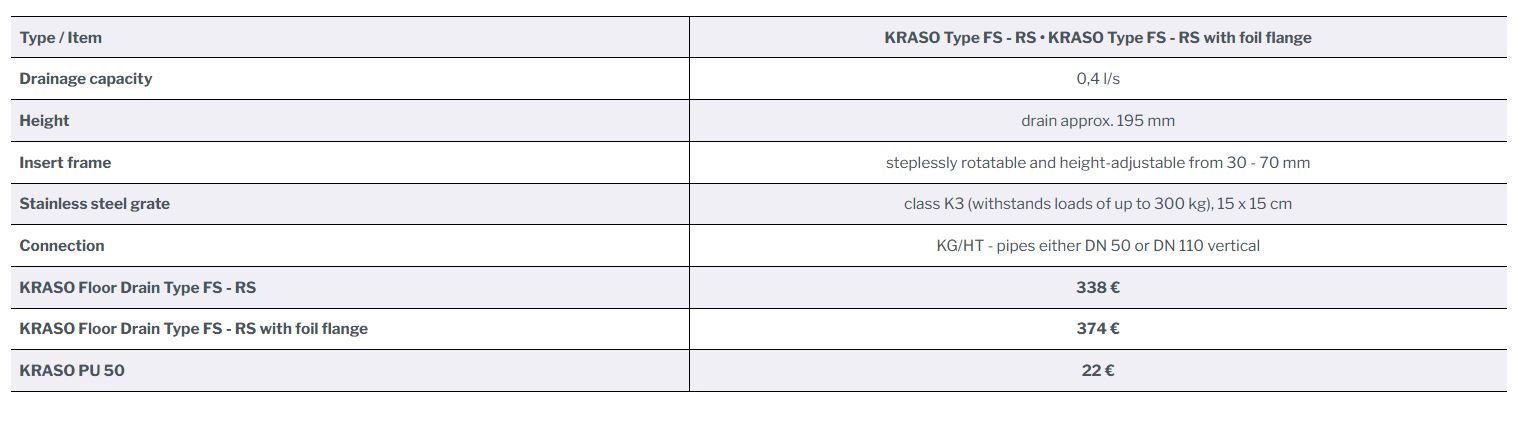

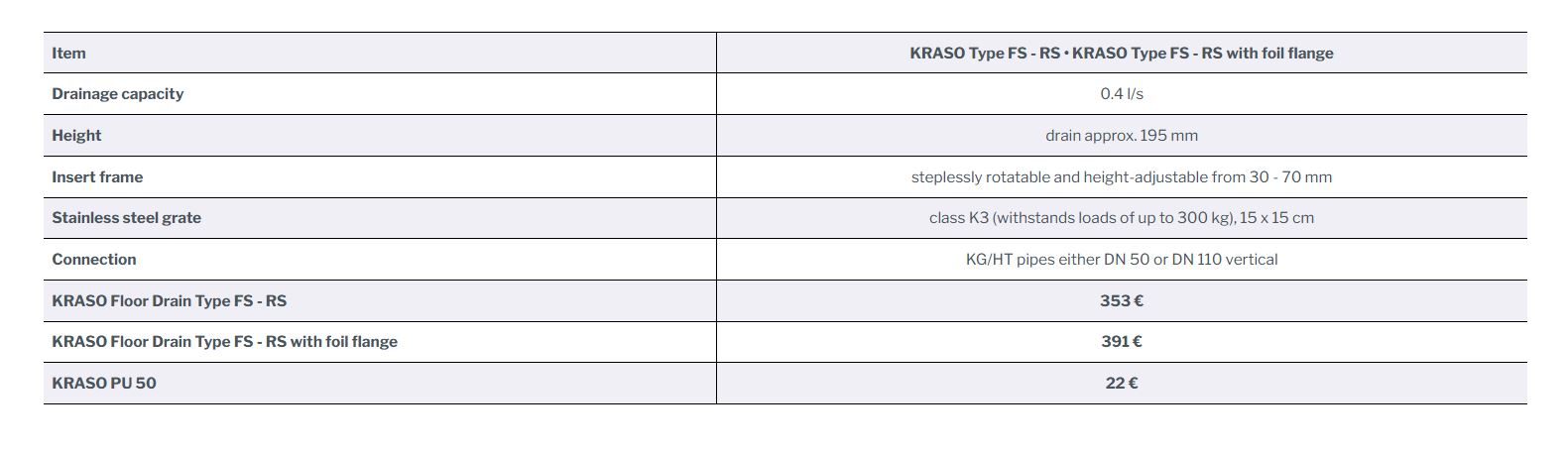

Type / Item |
KRASO Type FS - RS • KRASO Type FS - RS with foil flange |
|
Drainage capacity |
0,4 l/s |
|
Height |
drain approx. 195 mm |
|
Insert frame |
from 30 - 70 mm can be rotated and is fully height-adjustable |
|
Stainless steel grate |
class K3 (withstands loads of up to 300 kg), 15 x 15 cm |
|
Connection |
KG/HT - pipes either DN 50 or DN 110 vertical |
