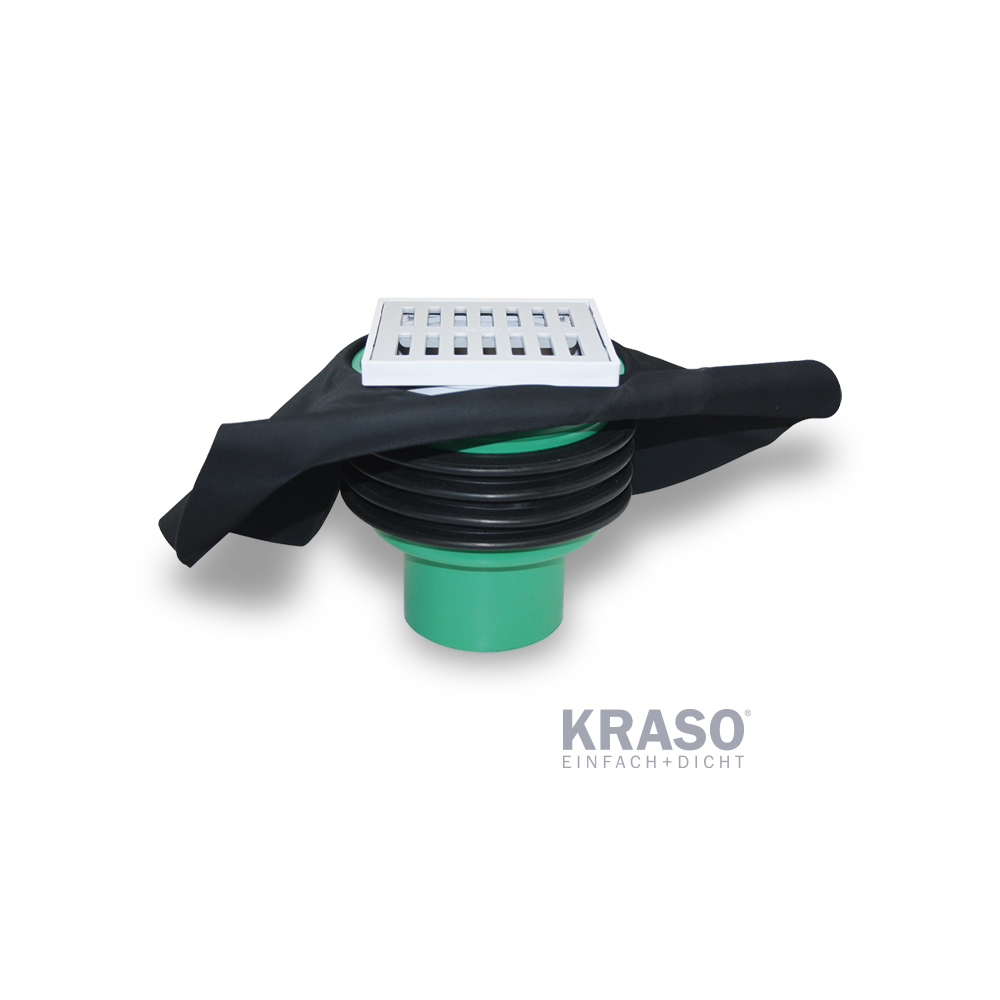

KRASO Floor Drain for KG 2000
KRASO Floor Drain for KG 2000
according to DIN EN 1253 - for the installation in interior areas without traffic, for the drainage of grey water, drainage capacity: 1,79 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
Inside and outside - tight and dry
+ For interior areas, basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of pressing water!
+ IAF-tested: radon-tight!
+ Walkable and fit for traffic, frost proof and odour tight, backwater safe and thermally insulated: various versions for different needs!
+ High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic or stainless steel grates
+ Additional accessories available as completion for individual needs
+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
Info
Scope of supply:
KRASO Floor Drain for KG 2000, plastic grate class K3, odour stopper, sludge trap filter, building period protective cover • KRASO Floor Drain for KG 2000 with foil flange, plastic grate class K3, odour stopper, sludge trap filter, building period protective cover
KRASO Floor Drain for KG 2000, plastic grate class K3, odour stopper, sludge trap filter, building period protective cover • KRASO Floor Drain for KG 2000 with foil flange, plastic grate class K3, odour stopper, sludge trap filter, building period protective cover
|

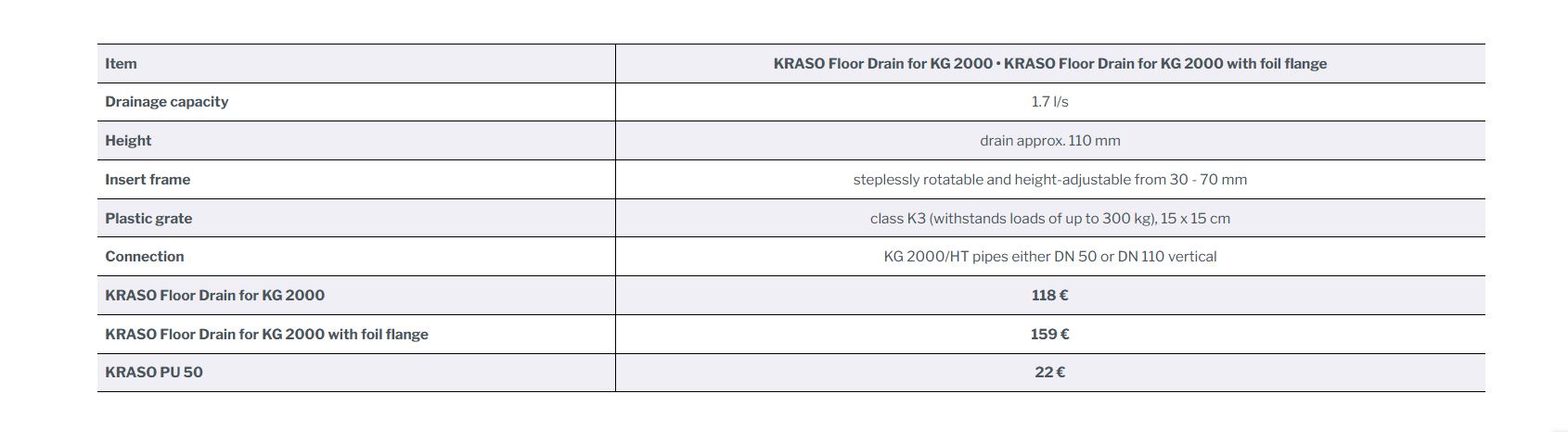

Type / Item |
KRASO Floor Drain for KG 2000 • KRASO Floor Drain for KG 2000 with foil flange |
|
Drainage capacity |
1,79 l/s |
|
Height |
drain approx. 110 mm |
|
Insert frame |
steplessly rotatable and height-adjustable from 30 - 70 mm |
|
Plastic grate |
class K3 (withstands loads of up to 300 kg), 15 x 15 cm |
|
Connection |
KG 2000/HT pipes either DN 50 or DN 110 vertical |
|
KRASO Floor Drain for KG 2000 |
113 € |
|
KRASO Floor Drain for KG 2000 with foil flange |
152 € |
|
KRASO PU 50 |
22 € |
KRASO Floor Drain
according to DIN EN 1253 - for the installation in interior areas without traffic, for the drainage of grey water, drainage capacity: 1,79 l/s, with water pressure tight surrounding KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange, we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
Inside and outside - tight and dry
+ For interior areas, basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of water! + IAF-tested: radon-tight!
+ Walkable and fit for traffic, frost proof and odour-tight, backwater safe and thermally insulated: various versions for different needs!
+ High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic or stainless steel grates+ Additional accessories available as completion for individual needs+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Floor Drain - thermally insulated -
according to DIN EN 1253 - for the installation in interior areas without traffic, for the drainage of grey water, drainage capacity: 1,79 l/s, with water pressure tight surrounding thermally welded KRASO 4 Seal
| DafStB waterproof concrete guideline: stress class 1 + 2Inside and outside - tight and dry
+ For interior areas, basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of water! + IAF-tested: radon-tight!
+ Walkable and fit for traffic, frost proof and odour-tight, backwater safe and thermally insulated: various versions for different needs!
+ High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic or stainless steel grates+ Additional accessories available as completion for individual needs+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO PU 50
high-quality, permanently elastic and strong PU-sealant, also usable on moist surfaces, recommended for all products with KRASO Foil Flange, colour black, 290 ml cartridge for cartridge press
KRASO Floor Drains - Accessories
accessories for KRASO Floor Drains+ Insert frame extension height ≤ 140 mm
+ Insert frame extension with foil flange height
≤ 140 mm, foil flange (d = approx. 50 cm)+ Insert frame extension - fit for traffic up to 1,5 t steplessly height-adjustable from 15 - 120 mm, all visible parts are made of stainless steel, stainless steel grate massive, screwed, 150 x 150 mm, fit for traffic up to 1,5 t, L 15+ Insert frame all visible parts made of stainless steel incl. stainless steel grate+ Stainless steel grate class K3+ Stainless steel grate - screwable - incl. insert frame with threaded sleeves+ Raising element for thin-bed mortar screed structure height from 25 - 130 mm+ Spare parts kit including: backflow seal, odour stopper, sludge trap filter, insert frame and plastic grate+ Floor Drain insert frame with building period protective cover for industry floors treated with a power trowel
