KRASO Flange Plate non-corrosive stainless steel V2A
KRASO Flange Plate non-corrosive stainless steel V2A
for installation of pipes or cables using a sealing insert (not included in the scope of supply), in front of a core drilling in concrete or masonry wall, made of non-corrosive stainless steel V2A, EPDM flat seal. ID = InternalDiameter | DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASO Flange Plate non-corrosive stainless steel V2A, with welded stainless steel tubular sleeve, EPDM flat seal incl. fixing material and adhesive and sealant KRASO PU 50
Further sizes and diameters available on request! Available for an additional charge: split design, fixed-loose flange construction according to DIN 18533, stainless steel V4A!
Downloads
KRASO Flanschplatte Edelstahl V2A
|

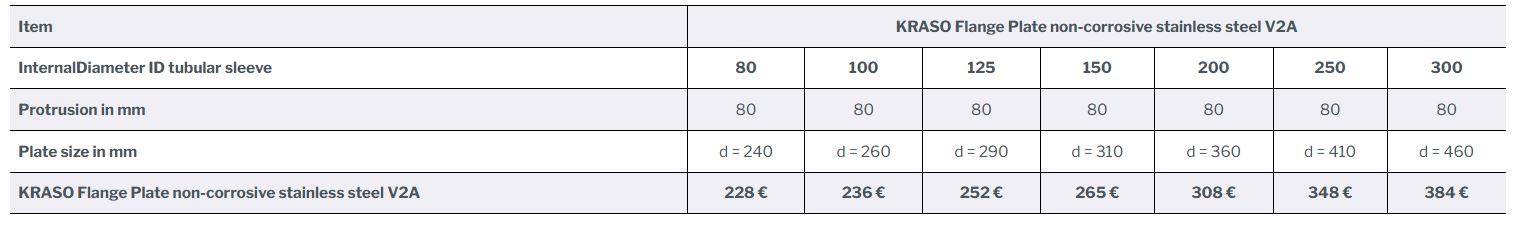

Type / Item |
KRASO Flange Plate non-corrosive stainless steel V2A |
||||||
|
InternalDiameter ID tubular sleeve |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
Protrusion in mm |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
|
Plate size in mm |
d = 240 |
d = 260 |
d = 290 |
d = 310 |
d = 360 |
d = 410 |
d = 460 |
|
KRASO Flange Plate non-corrosive stainless steel V2A |
228 € |
236 € |
252 € |
265 € |
308 € |
348 € |
384 € |
KRASO Plastic Flange Plate Type KFP - split -
for installation of pipes or cables using a sealing insert (not included in the scope of supply), ID = InternalDiameter | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1 -E and W2.1 -EA proven solution reinvented+ Like a "split casing": the flange plate made of high-strength plastic can be installed retrospectively+ No core drilling: no need for the separation of media lines for installation!
+ Installation in front of a wall made of waterproof concrete or as KRASO Type KFP with foil flange in front of a wall with sealing of larger areas+ Easy installation by just one person thanks to the low weight!+ Latest CNC production technology: absolute dimensional compliance - no tolerances like they are usual with solutions involving metal+ Tongue and groove system: the two halves of the plastic flange plate pull together with 100% accurate fit automatically. Installation errors are thus avoided due to this innovation!
+ Subsequent sealing of the media lines in the plastic flange plate using a sealing insert
+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1 -E and W2.1 -E
KRASO Flange Plate electrogalvanised
for installation of pipes or cables using a sealing insert (not included in the scope of supply), in front of a core drilling in concrete or masonry wall,
electrogalvanised steel, with welded tubular sleeve, EPDM flat seal. ID = InternalDiameter | DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Multi-Flange Plate Type MFP
for installation of pipes, sealing width to the media pipe or cable 20 mm | DafStB waterproof concrete guideline: stress class 1 + 2
Smart combination - innovative solution+ Combination of high-quality KRASO Sealing Insert and flange plate made of high-strength special plastic!+ Fast and easy installation thanks to the low weight - even by just one person!+ Installation in front of the waterproof concrete wall. EPDM flat seal, fixing material and adhesive and sealant KRASO PU 50 are included in the scope of supply.+ For new buildings and rehabilitation! Easy and fast installation and sealing of all kinds of media lines, also retrospectively. Special designs can usually be produced and dispatched within 24 hours.
+ MPA-tested: water pressure tight up to 1 bar!+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ DafStB waterproof concrete guideline: stress class 1 + 2
