KRASO Flange Plate electrogalvanised
KRASO Flange Plate electrogalvanised
for installation of pipes or cables using a sealing insert (not included in the scope of supply), in front of a core drilling in concrete or masonry wall,
electrogalvanised steel, with welded tubular sleeve, EPDM flat seal. ID = InternalDiameter | DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASO Flange Plate electrogalvanised, with welded tubular sleeve, EPDM flat seal incl. fixing material and adhesive and sealant KRASO PU 50
Further sizes and diameters available on request!
Downloads
KRASO Flanschplatte galvanisch verzinkt
|

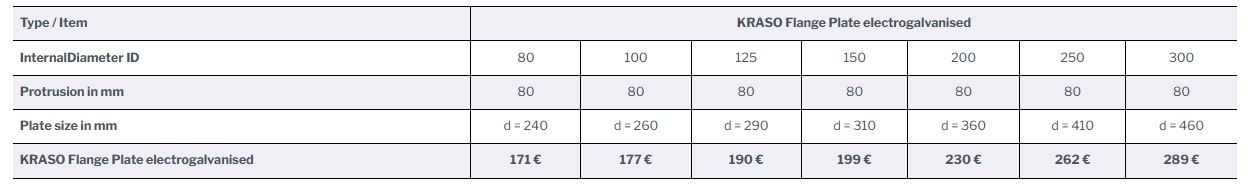

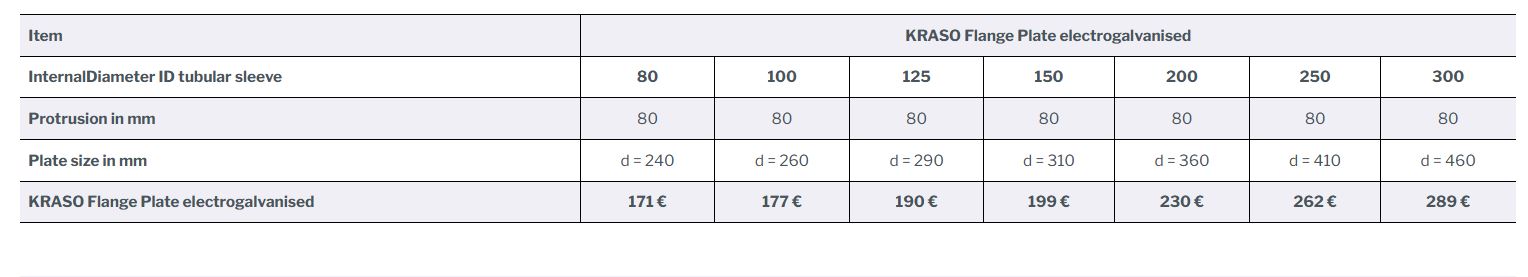

Type / Item |
KRASO Flange Plate electrogalvanised |
||||||
|
InternalDiameter ID |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
Protrusion in mm |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
|
Plate size in mm |
d = 240 |
d = 260 |
d = 290 |
d = 310 |
d = 360 |
d = 410 |
d = 460 |
|
KRASO Flange Plate electrogalvanised |
171 € |
177 € |
190 € |
199 € |
230 € |
262 € |
289 € |
