KRASO Flange Pipe Type FE

InternalDiameter ID

100

125

150

200

250

300

KRASO Flange Pipe Type FE

thick-walled true diameter plastic casing for retrofit installation of pipes and cables using KRASO Sealing Insert (not ioncluded in the delivery), with formed KRASO Foil Flange, oil- and bitumen resistant, surrounding approx. 15 cm. For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50.
ID = InternalDiameter Flange Pipe Type FE
| DIN 18533 W1-E and W2.1-E

Simple and effective integration into bituminous sealing

+ For new building and rehabilitation - according DIN 18533 W1-E and W2.1-E.

+ Simple and effective integration into bituminous sealing („black tank“): bitumen thick coating (e.g. KMB) and sheeting, concrete and brick wall.

+ Water pressure tight up to 1,5 bar – MPA-tested!

+ Made of dimensionally and pressure stable solid wall material with low abrasion! Easy to install at low temperatures.

Info

Scope of supply:

KRASO Flange Pipe Type FE

Downloads

Produktinformation

Produktinfo_KRASO_Flanschrohre (3.22 MiB)

Datenblatt

Datenblatt_KRASO_Flanschrohr_Typ_FE (231.5 KiB)
Data Sheet_KRASO_Flange_Pipe_Type_FE (451.02 KiB)

Prüfzeugnis

Prüfbericht_KRASO_Flanschrohr (1.82 MiB)

Montageanleitung

Montageanleitung_KRASO_Flanschrohr_Typ_FE (1.51 MiB)

DWG-Dateien

DWG_KRASO_Flanschrohr_Typ_FE_ID_100 (35.48 KiB)

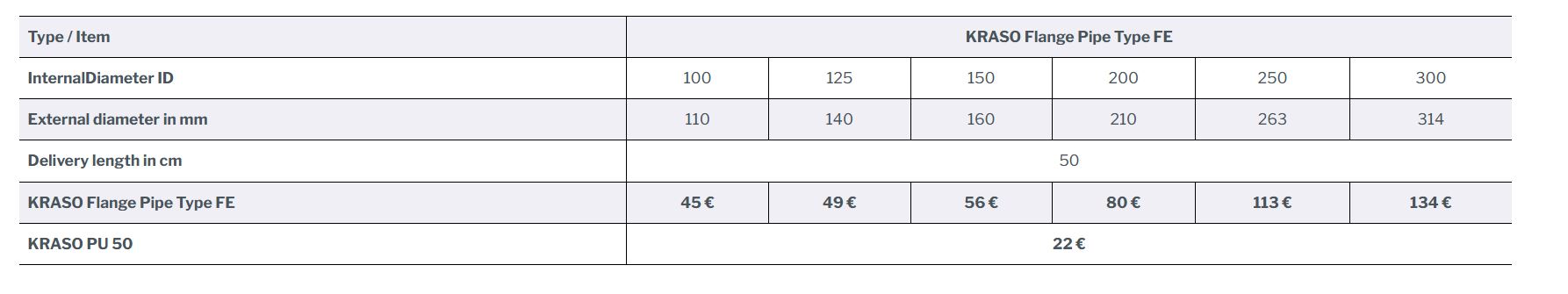

Type / Item	KRASO Flange Pipe Type FE
InternalDiameter ID	100	125	150	200	250	300
External diameter in mm	110	140	160	210	263	314
Delivery length in cm	50
