KRASO Fibre Cement Casing
Fibre
cement wall sleeve for installation in waterproof concrete structures for
penetration of pipes and / or cables using KRASO Sealing Inserts
| DafStB waterproof concrete guidline: Stress class 1 + 2
Water pressure
tight penetration with homogeneous connection to concrete
+ Casing made of fibre cement as recess in waterproof concrete structures.
+ For
concreting: The
surrounding
external profiling ensures a homogeneous and
water pressure tight connection to the concrete.
+ MPA-tested up to 5 bar!
+ Radon tight – according to FHRK leaflet MB 101.
+ Corresponds to the expansion range ("expansion coefficient") of waterproof concrete.
+ Ready to immediately accept KRASO Sealing Inserts for covering with pipes and cables.

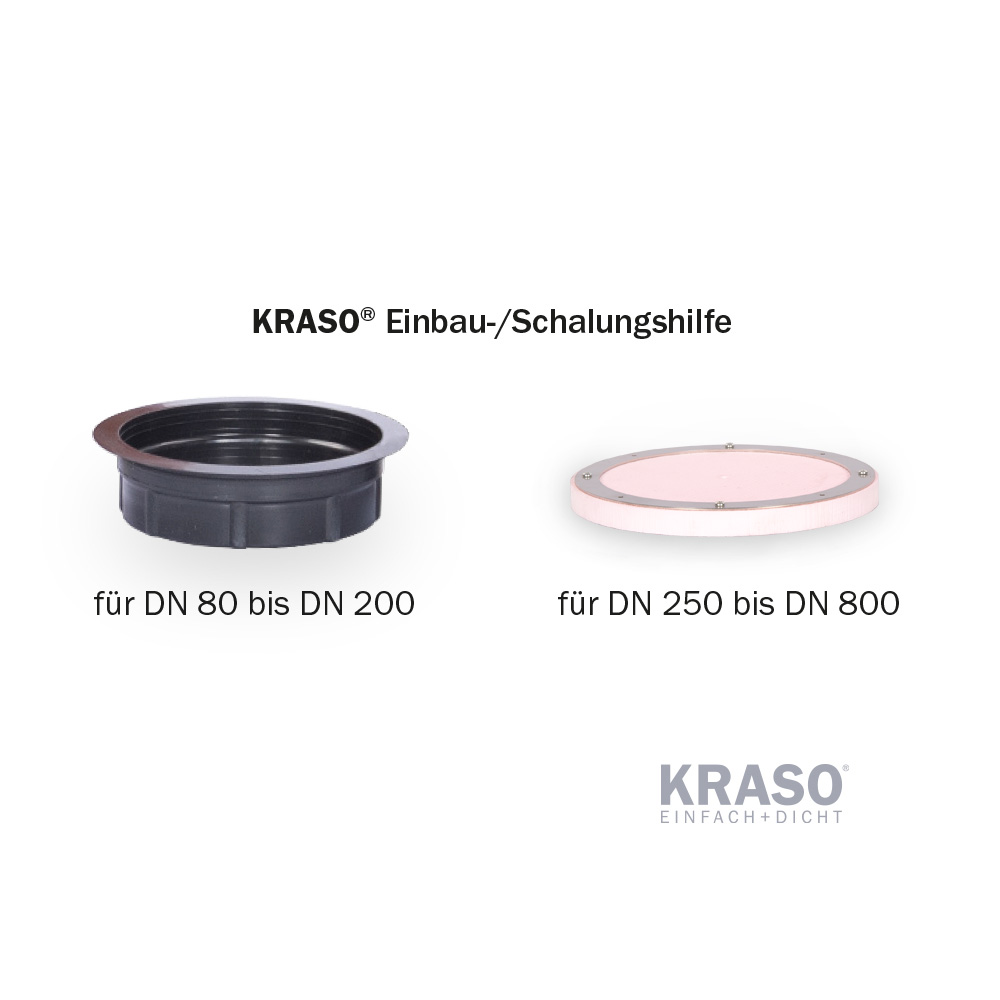

+ Optional: KRASO installation/formwork aid.
+ Fire protection class A1 according to DIN EN 13501-1
+ DafStB waterproof concrete guideline: Stress class 1 + 2
Info
Scope of supply:
KRASO Fibre Cement Casing, optional: KRASO installation/formwork aid
Downloads
-
Produktinfo_KRASO_Faserzementfutterrohr (1.28 MiB)
-
Datenblatt_KRASO_Faserzementfutterohr (309.35 KiB)
-
Data_Sheet_KRASO_Fibre_Cement_Casing (296.29 KiB)
-
Prüfzeugnis_KRASO_Faserzementfutterrohr_200_300 (953.02 KiB)
-
Prüfzeugnis_KRASO_Faserzementfutterrohr_200_200 (800.91 KiB)
|
Type / Item |
KRASO Fibre Cement Casing |
|||||||||||||
|
InternalDiameter ID in mm |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
700 |
800 |
|
available standard wall thicknesses in cm |
20 · 24 · 25 · 30 · 35 · 36,5 · 40 · 50 · 60 · 80 · 100 | |||||||||||||
