Info
Scope of supply:
KRASO Basement Drain insert frame extension or KRASO Yard-/Parking Level Drain Type 1,5 insert frame extension
KRASO Basement Drain insert frame extension or KRASO Yard-/Parking Level Drain Type 1,5 insert frame extension
Downloads
Produktinformation
-
Produktinfo_KRASO_Ablaeufe_Zubehoer (733.06 KiB)

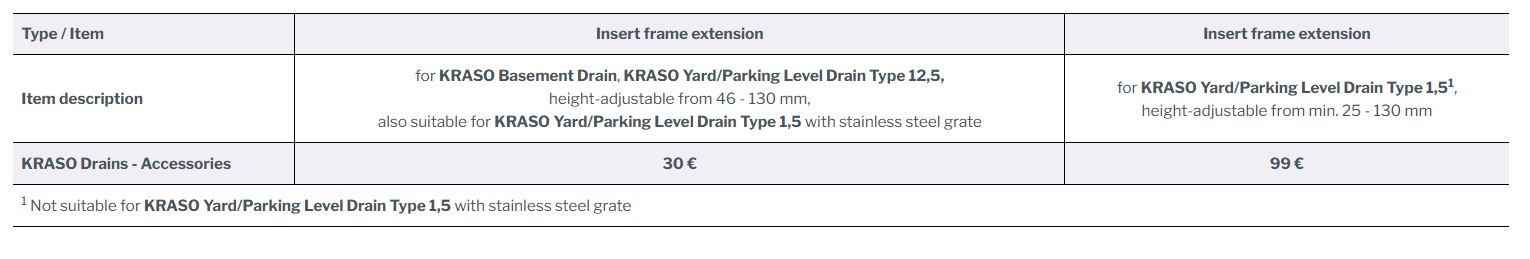

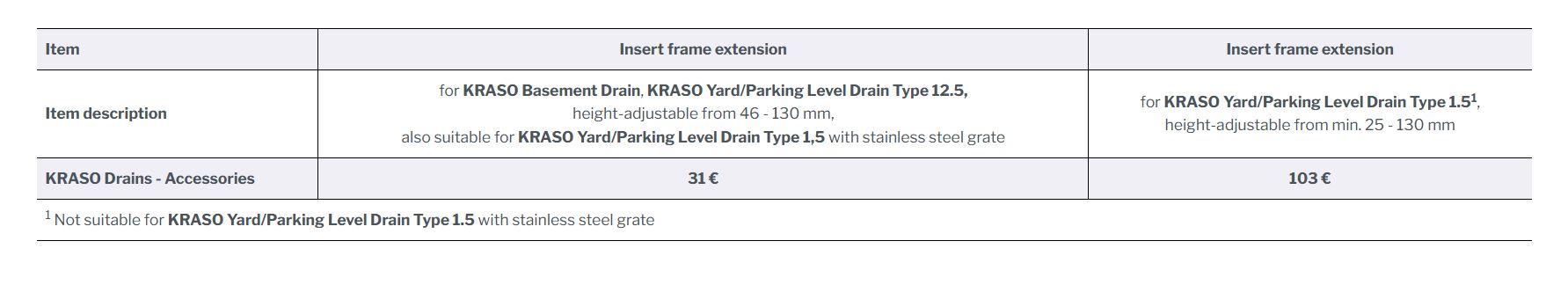

Type / Item |
Insert frame extension |
Insert frame extension |
Item description |
for KRASO Basement Drain, KRASO Yard/Parking Level Drain Type 12,5, |
for KRASO Yard/Parking Level Drain Type 1,51, |
1 not suitable for KRASO Yard/Parking Level Drain Type 1,5 with stainless steel grate |
![](https://www.kraso.de/media/c5/85/36/1704793123/ Tabelle_KRASO_Ablaeufe_Zubehoer.jpg)
KRASO Basement Drain - KG 2000
for installation in areas without traffic and for the connection of 3 intake pipes, for the drainage of grey water, drainage capacity: 1,8 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal, lateral KRASO Drainage Bows DN 110 with KRASO 3 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
For a dry basement
+ KRASO Basement Drain with integrated removable backwater and odour stopper!
+ For the connection of up to 3 intake pipes!
+ Drainage capacity: 1,8 l per second!
+ With height adjustable insert frame from 30 to 60 mm.
+ Either with plastic or stainless steel grate.
+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!
+ Also available as KG 2000 made of polypropylene (PP), mineral- filled, smooth walls, long-lasting.
+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Basement Drain
for installation in areas without traffic and for the connection of 3 intake pipes, for the drainage of grey water, drainage capacity: 1,8 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal, lateral KRASO Drainage Bows DN 110 with KRASO 3 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
For a dry basement
+ KRASO Basement Drain with integrated removable backwater and odour stopper!
+ For the connection of up to 3 intake pipes!
+ Drainage capacity: 1,8 l per second!
+ With height-adjustable insert frame from 30 to 60 mm.
+ Either with plastic or stainless steel grate.
+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!
+ Also available as KG 2000 made of polypropylene (PP), mineral- filled, smooth walls, long-lasting.
+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Yard-/Parking Level Drain
for installation in areas with traffic, drainage capacity: 4,3 l/s according DIN EN 1253, with water pressure tight surrounding, thermally welded KRASO 4 Seal
The high-performance drain for e.g. underground car parks
+ KRASO Yard-/Parking Level Drain with 4,3 l/s drainage capacity according DIN EN 1253.
+ With frost proof odour barrier and removable sand trap basket.
+ Load class A up to 1,5 t or load class B up to 12,5 t.
+ Connection either for KG/HT or KG 2000 pipes DN 110.
+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!
