KRASO Casing Type FL/ZA
ID = InternalDiameter | DIN 18533 W2.1 -E and W2.2 -E
Fixed-loose flange for dowel-fixing or for concreting and as sealing insert
Info
KRASO Casing Type FL/ZA, casing with welded fixed-flange, loose-flange, dowels M8 x 100, bolts, nuts and washers M20 or M12
Downloads
-
Product-Information_KRASO_Casing_FL_ZA (725.91 KiB)
-
Data_Sheet_KRASO_Casing_Type_FL_ZA_VZ (693.33 KiB)
-
Datenblatt_KRASO_Futterrohr_Typ_FL_ZA_V2A (274.52 KiB)
-
Data_Sheet_KRASO_Casing_Type_FL_ZA_V2A (687.13 KiB)
-
Datenblatt_KRASO_Futterrohr_Typ_FL_ZA_VZ (272.68 KiB)
-
DWG_KRASO_Futterrohr_Typ_FL_ZA_ID_80 (604.9 KiB)
|

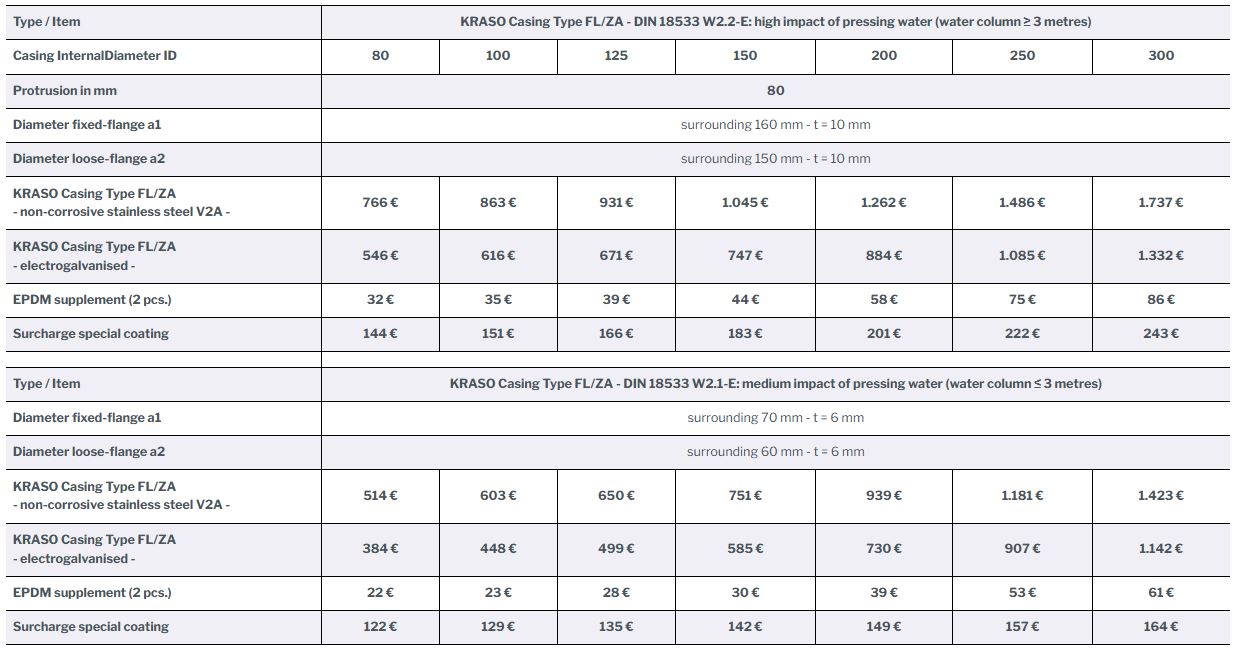

Type / Item |
KRASO Casing Type FL/ZA - pressing water according to DIN 18533 W2.2-E |
||||||
|
Casing InternalDiameter ID |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
Protrusion in mm |
80 |
||||||
|
Diameter fixed-flange a1 |
surrounding 160 mm - t = 10 mm |
||||||
|
Diameter loose-flange a2 |
surrounding 150 mm - t = 10 mm |
||||||
|
KRASO Casing Type FL/ZA |
766 € |
863 € |
931 € |
1.045 € |
1.262 € |
1.486 € |
1.737 € |
|
KRASO Casing Type FL/ZA |
546 € |
616 € |
671 € |
747 € |
884 € |
1.085 € |
1.332 € |
|
EPDM supplement (2 pcs.) |
32 € |
35 € |
39 € |
44 € |
58 € |
75 € |
86 € |
|
Surcharge special coating |
144 € |
151 € |
166 € |
183 € |
201 € |
222 € |
243 € |
|
Type / Item |
KRASO Casing Type FL/ZA - non pressing water according to DIN 18533 W2.1-E |
||||||
|
Diameter fixed-flange a1 |
surrounding 70 mm - t = 6 mm |
||||||
|
Diameter loose-flange a2 |
surrounding 60 mm - t = 6 mm |
||||||
|
KRASO Casing Type FL/ZA |
514 € |
603 € |
650 € |
751 € |
939 € |
1.181 € |
1.423 € |
|
KRASO Casing Type FL/ZA |
384 € |
448 € |
499 € |
585 € |
730 € |
907 € |
1.142 € |
|
EPDM supplement (2 pcs.) |
22 € |
23 € |
28 € |
30 € |
39 € |
53 € |
61 € |
|
Surcharge special coating |
122 € |
129 € |
135 € |
142 € |
149 € |
157 € |
164 € |
