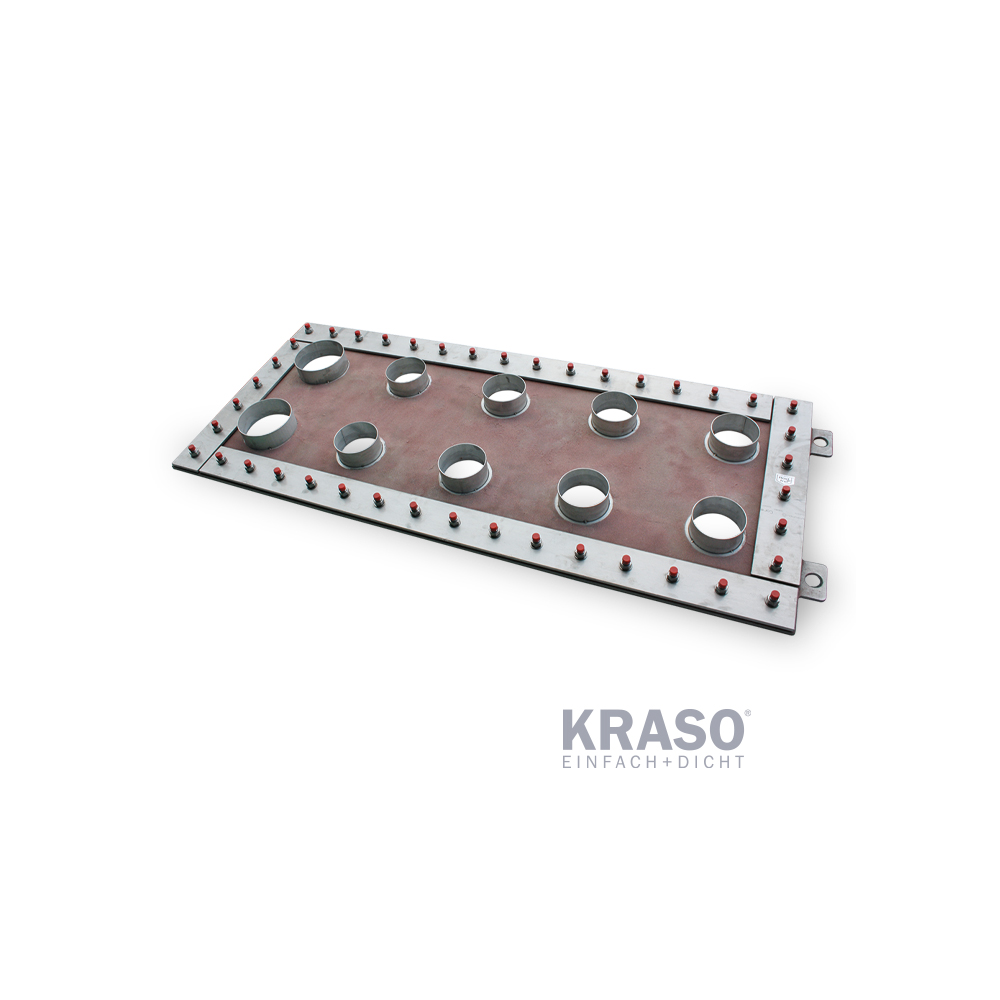

KRASO Casing Type FL/ZA - special
KRASO Casing Type FL/ZA - special
internal diameter: 2 x 200 mm + 8 x 150 mm protrusion length: approx. 80 mm with special coating, for installation of pipes or cables from 0 to 175 and 0 to 125 mm using KRASO Sealing Insert, non-corrosive stainless steel casing V2A for dowel-fixing (bolts, nuts and washers M20) with fixed-loose-flange construction for buildings with exterior sealing („black tank“) against pressing water according DIN 18533 W2-E
Info
KRASO Special Designs Made of Stainless Steel
non-corrosive stainless steel: simple and tight
+ Sealing inserts, casings, flange plates... we use solely non-corrosive stainless steel with the seal of quality V2A or V4A for our special designs made of stainless steel. Solutions made of electrogalvanised steel are of course possible, too!
+ The production takes place on e.g. modern laser- and water-jet cutting machines!
+ Special designs made of stainless steel are generally ready for dispatch within 24 hours! Direct delivery to the construction site is possible.
+ KRASO Special Designs made of stainless steel are real problem solvers, particularly for rehabilitation!
non-corrosive stainless steel: simple and tight
+ Sealing inserts, casings, flange plates... we use solely non-corrosive stainless steel with the seal of quality V2A or V4A for our special designs made of stainless steel. Solutions made of electrogalvanised steel are of course possible, too!
+ The production takes place on e.g. modern laser- and water-jet cutting machines!
+ Special designs made of stainless steel are generally ready for dispatch within 24 hours! Direct delivery to the construction site is possible.
+ KRASO Special Designs made of stainless steel are real problem solvers, particularly for rehabilitation!
KRASO Casing Type FL/ZE
fixed-loose flange for concreting, with casing, for installation of media pipes using a sealing insert (not included in the scope of supply), for buildings with exterior sealing ("black tank") against pressing / non-pressing water according to DIN 18533. Available in non-corrosive stainless steel V2A or electrogalvanised with plastic casing, each with or without special coating ID = InternalDiameter | DIN 18533 W2.1 -E and W2.2 -E Fixed-loose flange for dowel-fixing or for concreting and as sealing insert
+ For buildings with exterior sealing (“black tank“): according to DIN 18533
(“sealing of below-ground structural elements“) + Each design available as separate types for pressing and non-pressing water + Available in non-corrosive stainless steel V2A or V4A and in electrogalvanised steel + Upon request available with special coating for buildings with thick coating (e.g. KMB)! + DIN 18533: water exposure classes W2.1 -E and W2.2 -E (“medium impact of pressing water“ - water column ≤ 3 metres / „high impact of pressing water" - water column ≥ 3 metres)
