thick-walled plastic casing - true diameter for concreting, with trowel flange on one side, roughened (KRASO Type FE/SF 5 - R) or tissue coated (KRASO Type FE/SF 5 - G) for the secure connection of bitumen thick coating (e.g. KMB), surrounding approx. 5 cm, with water pressure-, gas- and odour-tight surrounding KRASO 4 Seal and 2 KRASO Covers as an installation aid
ID = InternalDiameter true diameter casing
| DafStB waterproof concrete guidline: Stress class 1 + 2
Thick-walled plastic casing - true diameter for the secure connection of bitumen thick coating
+ Thick-walled true diameter plastic casing for concreting.
+ As a recess for later installation of pipes or cables using KRASO Sealing Insert.
+ Approx. 5 cm surrounding trowel flange on one side, for a secure connection of bitumen thick coating as e.g. KMB: roughened or tissue coated.
+ With water pressure tight as well as gas- and odour-tight, surrounding KRASO 4 Seal! MPA-tested: water pressure tight up to 10 bar!
+ IAF tested: Radon-tight! prevents from a harmful to health concentration of the radioactive noble gas!
+ Tested according to FHRK test specification GE 102!
+ Also available: trowel flange made of PP with dovetail groove as KRASO Type FE/SF 5 - KG 2000 for the secure gripping of bitumen thick coating (e.g. KMB).
+ DafStB waterproof concrete guidline: Stress class 1 + 2, DIN 18533 W1-E and W2.1-E
Info
Scope of supply:
KRASO Type FE/SF 5 - R with trowel flange SF/5 on one side, roughened, 2 KRASO Covers as an installation aid • KRASO Type FE/SF 5 - G with trowel flange SF/5 on one side, tissue coated, 2 KRASO Covers as an installation aid
KRASO Type FE/SF 5 - R with trowel flange SF/5 on one side, roughened, 2 KRASO Covers as an installation aid • KRASO Type FE/SF 5 - G with trowel flange SF/5 on one side, tissue coated, 2 KRASO Covers as an installation aid
Downloads
Produktinformation
Datenblatt
Prüfzeugnis
Montageanleitung
DWG-Dateien
-
Produktinfo_KRASO_Typ_FE_SF5 (836.64 KiB)
-
Data Sheet_KRASO_Casing_FE_SF_5_R (817.62 KiB)
-
Datenblatt_KRASO_Futterrohr_FE_SF_5_R (269.09 KiB)
-
Data Sheet_KRASO_Casing_FE_SF_5_G (703.49 KiB)
-
Datenblatt_KRASO_Futterrohr_FE_SF_5_G (268.5 KiB)
-
TestCertificate_KRASO_Casing_FHRK (263.39 KiB)
-
Prüfbericht_KRASO_Vierstegdichtung_PVC (310.56 KiB)
-
Prüfbericht_KRASO_Vierstegdichtung (606.1 KiB)
-
FHRK-Zertifikat_KRASO_Futterrohre (240.11 KiB)
-
Montageanleitung_KRASO_Futterrohr_Typ_FE (624.57 KiB)
-
DWG_KRASO_Typ_FE_SF_4_ID_100_20er_Wand (290.83 KiB)
|

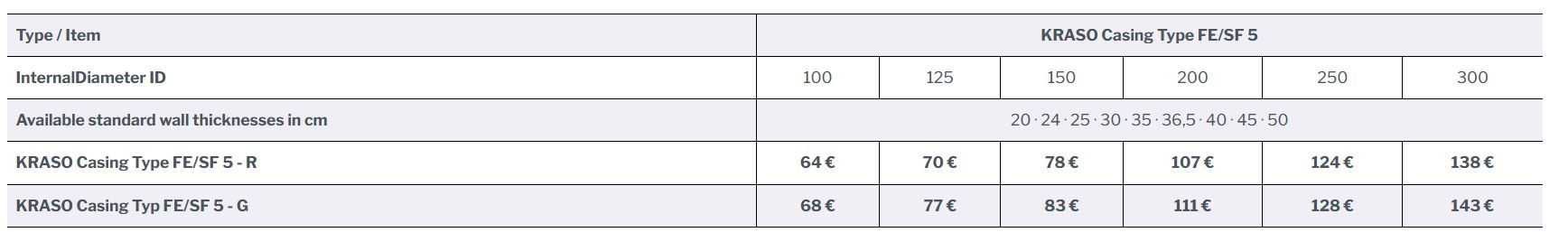

Type / Item |
KRASO Casing Type FE/SF 5 |
|||||
|
InternalDiameter ID |
100 |
125 |
150 |
200 |
250 |
300 |
|
available standard wall thicknesses in cm |
20 · 24 · 25 · 30 · 35 · 36,5 · 40 · 45 · 50 |
|||||
KRASO Wall Penetration Type B - KG 2000
in accordance with DIN EN 14758, for installation in waterproof concrete walls for connection to KG 2000 pipes on both sides, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeves on both sides and 2 KRASO Covers as installation aid | DafStB waterproof concrete guidline: Stress class 1 + 2
The proven wall penetration made of solid wall material + With water pressure tight surrounding KRASO 4 Seal - MPA-tested up to 10 bar!+ Radon tight: prevents from a harmful to health concentration of the radioactive noble gas! + Made of dimensionally and pressure stable solid wall material with low abrasion! Easy installation at low temperatures.
+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).+ KG 2000: made of polypropylene (PP), mineral-filled, smooth walls, long-lasting.+ Formed plug-in sleeve on both sides for connection to KG/HT pipes.+ Including two KRASO Covers as installation aid.+ KRASO Product Innovation: Type B as thermally insulated wall penetration!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Wall Penetration Type B
in accordance with DIN EN 1401, for installation in waterproof concrete walls for connection to KG/HT pipes on both sides, with water pressure tight surrounding KRASO 4 Seal, formed plug-in sleeves on both sides and 2 KRASO Covers as installation aid
| DafStB waterproof concrete guidline: Stress class 1 + 2
The proven wall penetration made of solid wall material + With water pressure tight surrounding KRASO 4 Seal - MPA-tested up to 10 bar!+ Radon tight: prevents from a harmful to health concentration of the radioactive noble gas! + Made of dimensionally and pressure stable solid wall material with low abrasion! Easy installation at low temperatures.
+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).+ Also available as KG 2000: made of polypropylene (PP), mineral-filled, smooth walls, long-lasting.+ Formed plug-in sleeve on both sides for connection to KG/HT pipes.+ Including two KRASO Covers as installation aid.+ KRASO Product Innovation: Type B as thermally insulated wall penetration!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Casing Type FBV-FE - casing true diameter
thick-walled plastic casing for a conformist integration of FBV-films, for concreting with fresh concrete composite film on the part of the building site, using the 20 cm sourrounding, angular FBV-sealing flange, Torque Control Nut KRASO DKM, incl. frame for an easy fixation, colour grey, as a recess for later installation of pipes or cables using KRASO Sealing Insert (not included in the delivery), with water pressure-, gas- and odour-tight, surrounding KRASO 4 Seal and 2 KRASO Covers as an installation aidID = InternalDiameter true diameter casing
| DafStB waterproof concrete guidline: Stress class 1 + 2
The casing for FBV integration
+ Casing for a conformist integration of fresh concrete composite films.
+ Vendor independence: fresh concrete compound foils (FBV) of all vendors can be integrated.
+ KRASO FBV-Sealing Flange made of non-corrosive stainless steel V2A with angular fresh concrete composite film, surrounding 20 cm.
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Thick-walled plastic casing - true diameter - for concreting: as a recess for later installation of pipes or cables using KRASO Sealing Insert!
+ With water pressure tight surrounding KRASO 4 Seal - certified and tested: due to the special geometry our surrounding 4 Seal produces a grip with the concrete that is water-, gas- and odour-tight.
+ Materials and processing: KRASO Casings are made of weatherproof, high-impact plastic. The surrounding KRASO 4 Seal is joined monolithically to the plastic pipe by vulcanization.+ IAF tested: Radon-tight!+ Tested according to FHRK test specification GE 120!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Flange Pipe Type FE
thick-walled true diameter plastic casing for retrofit installation of pipes and cables using KRASO Sealing Insert (not ioncluded in the delivery), with formed KRASO Foil Flange, oil- and bitumen resistant, surrounding approx. 15 cm. For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50.ID = InternalDiameter Flange Pipe Type FE
| DIN 18533 W1-E and W2.1-E
Simple and effective integration into bituminous sealing
+ For new building and rehabilitation - according DIN 18533 W1-E and W2.1-E.
+ Simple and effective integration into bituminous sealing („black tank“): bitumen thick coating (e.g. KMB) and sheeting, concrete and brick wall.
+ Water pressure tight up to 1,5 bar – MPA-tested!
+ Made of dimensionally and pressure stable solid wall material with low abrasion! Easy to install at low temperatures.
KRASO Sealing Insert Type SD
for installation of pipes or cables, Torque Control Nut KRASO DKMKRASO Type SD 30 / KRASO Type SD 30 - T, split / KRASO Type SD 30 - GF, large flangeKRASO Type SD 60 / KRASO Type SD 60 - T, split / KRASO Type SD 60 - GF, large flange
| DafStB waterproof concrete guideline: Stress class 1 + 2
The solution for special situations+ For core drillings and casings+ Individual and custom-made solution: with large flange or split!+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, 30 or 60 mm seal made of a specially developed rubber mixture, welded-on studs instead of through bolts
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ MPA-tested: protects reliably against pressing water up to 2,5 / 5 bar!+ Gas and odour tight - High-quality in terms of TA-Air!+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!
+ Tested according to FHRK testing specification GE 101!+ With arrangement template: see the arrangement of media lines, pipes and cables at a glance!+ Generally available within 24 hours!+ Available at an additional charge: non-corrosive stainless steel V4A / KTW - recommendation / NBR - oil- and petrol resistant / temperature resistant up to 220°C+ DafStB waterproof concrete guideline: Stress class 1 + 2.
Configure Sealing Insert
KRASO Sealing Insert Universal Multiple - split -
for simultaneous installation of several media lines/cables, split design for retrofit installation | DafStB waterproof concrete guideline: Stress class 1 + 2
Universally usable - multiply flexible+ For core drillings and casings
+ Stepless onion ring technology: universally usable for various external diameters of media lines/cables - even with several drillings! Split design for retrofit installation!
+ KRASO Sealing Insert quality: 5 mm tick clamping plates made of non-corrosive stainless steel V2A, 40 mm seal made of specially developed rubber mixture, welded-on studs instead of through bolts
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ MPA-tested: protects reliably against pressing water up to 2,5 bar!+ Gas and odour tight - high-quality in terms of TA-Air!+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!+ DafStB waterproof concrete guideline: Stress class 1 + 2.
KRASO Sealing Insert Universal DD
for installation of pipes or cables, double sealing against
pressing water up to 3 bar. Can also be used as blind plug for feed-through of
pipes or cables (except KRASO Universal 250 DD and Universal 250 DD/T) | DafStB
waterproof concrete guideline: stress class 1 + 2Simple, tight, universal use
+ For core drillings or casings
+ Onion ring technology: universal use for various external
diameters of media pipes or cables!
+ KRASO Sealing Insert quality: non-corrosive stainless
steel V2A, high quality 40 mm rubber seal, welded-on studs instead of through bolts
+ Torque Control Nut KRASO DKM: integrated torque limiter -
no torque wrench required!
+ MPA-tested: protects reliably against pressing water up to
3 bar!
+ Gas- and odour-tight – high-quality in terms of TA-Air!
+ Radon tightness IAF tested - meets the requirements for
radon precautionary areas according to FHRK leaflet MB 101!
+ Tested according to FHRK test specification GE 101!
+ DafStB waterproof concrete guideline: stress class 1 + 2
