KRASO Casing Type FE/SF 5

for concreting, with trowel flange on one side, roughened (KRASO Type FE/SF 5 - R) or tissue coated (KRASO Type FE/SF 5 - G), surrounding approx. 5 cm, 2 KRASO Covers as an installation aid, ID = InternalDiameter true diameter casing | DafStB waterproof concrete guideline: stress class 1 + 2

Secure connection of bitumen thick coating/reactive sealing

+ Thick-walled true diameter plastic casing for concreting

+ As a recess for retrofit installation of pipes or cables using a sealing insert

+ Aprox. 5 cm surrounding trowel flange on one side for a secure connection of bitumen thick coating and reactive sealing: roughened or tissue coated

+ KRASO 4 Seal - MPA-tested up to 10 bar! IAF-tested: radon-tight! Gas- and odour-tight - high-quality in terms of TA-Air!

+ Certified with the quality seal of the FHRK e. V.

+ Also available: KRASO Casing Type FE/SF 5 made of KG 2000 with trowel flange made of PP witzh dovetrail groove for the secure connection of bitumen thick coating and reactive sealings

+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1-E and W2.1-E

Info

Scope of supply:

KRASO Type FE/SF 5 - R with trowel flange SF/5 on one side, roughened, 2 KRASO Covers as an installation aid • KRASO Type FE/SF 5 - G with trowel flange SF/5 on one side, tissue coated, 2 KRASO Covers as an installation aid

Further diameters and wall thicknesses available on request!

Downloads

KRASO Futterrohr Typ FE/SF 5

Datenblatt KRASO Futterrohr FE/SF 5 - G -

Datenblatt KRASO Futterrohr FE/SF 5 - R -

FHRK-Zertifikat KRASO Futterrohre

Montageanleitung KRASO Futterrohr Typ FE

Produktinfo KRASO Futterrohr Typ FE/SF 5

Prüfbericht KRASO Futterrohr Typ FE mit Dichteinsatz

Prüfbericht KRASO Spachtelflansch PCI Barraseal Turbo 2k Reaktivabdichtung

Prüfbericht KRASO Spachtelflansch Remmers Bitumenabdichtung 2k

Prüfbericht KRASO Spachtelflansch Remmers Multi baudicht 2K Reaktivabdichtung

Prüfbericht KRASO Spachtelflansch WEBERTEC Multi Baudicht

Prüfbericht KRASO Vierstegdichtung

Prüfbericht KRASO Vierstegdichtung PVC

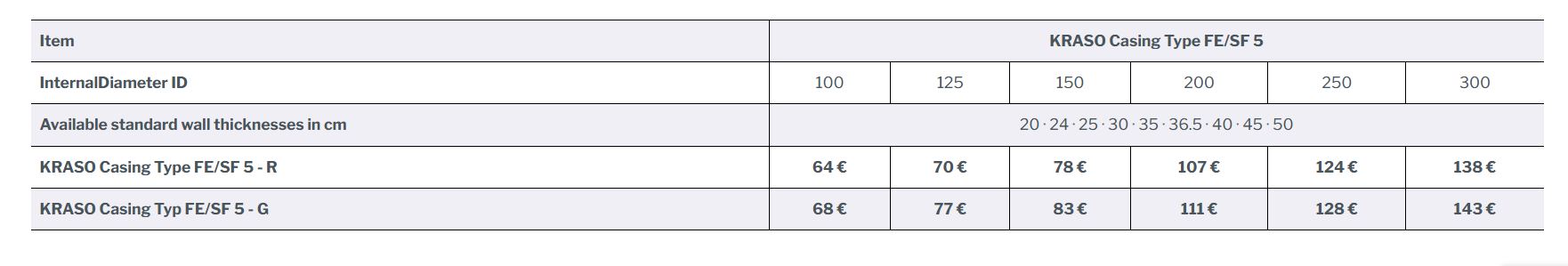

Type / Item	KRASO Casing Type FE/SF 5
InternalDiameter ID	100	125	150	200	250	300
Available standard wall thicknesses in cm	20 · 24 · 25 · 30 · 35 · 36,5 · 40 · 45 · 50
KRASO Casing Type FE/SF 5 - R	64 €	70 €	78 €	107 €	124 €	138 €
KRASO Casing Typ FE/SF 5 - G	68 €	77 €	83 €	111 €	128 €	143 €
