KRASO Casing Type FE and FE/MI
KRASO Casing Type FE and FE/MI
recess for retrofit installation of cables or pipes using a sealing insert (not included in the scope of supply) • plastic - true diameter casing with
reinforced inner core, with eyelets, shear key and enclosed fixed claw as an installation aid, ID = InternalDiameter true diameter casing | DafStB
waterproof concrete guideline: stress class 1 + 2
For all diameters!
+ Thick-walled true diameter plastic casing for concreting
+ KRASO 4 Seal – MPA-tested up to 10 bar!
Gas- and odour-tight – high-quality in terms of TA-Air!
+ IAF-tested: radon-tight!
+ Certified with the quality seal of the FHRK e. V.
+
Material and processing: weatherproof, impact-resistant plastic,
KRASO 4 Seal joined monolithically to the plastic pipe by vulcanization
+
Every diameter and every wall thickness available at short notice!
If necessary, the size can be adapted individually on the construction-site!
+
Low weight: easy handling, simple installation, low transport costs!
+
Including installation covers! No pre-treatment required!
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASO Casing Type FE, 2 KRASO Covers as an installation aid • KRASO Casing Type FE/MI, fixed claw as an installation aid
Downloads
KRASO Casing Type FE and FE/MI
|

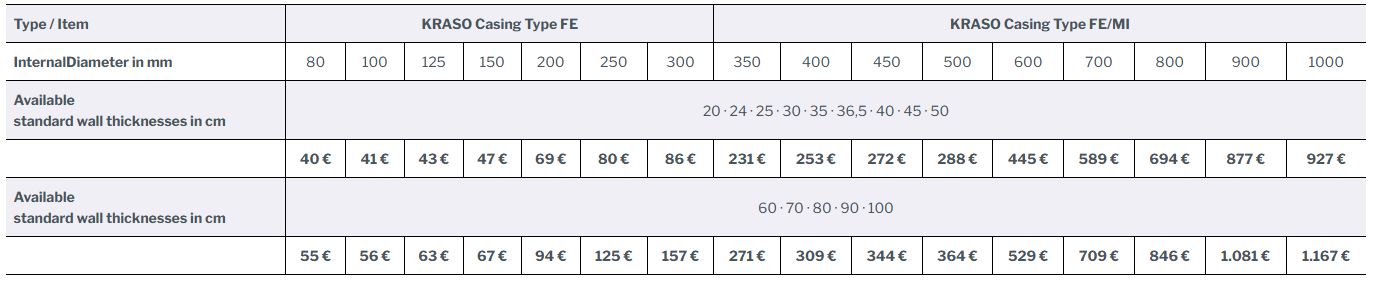

Type / Item |
KRASO Casing Type FE |
KRASO Casing Type FE/MI |
||||||||||||||
|
InternalDiameter in mm |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
1000 |
|
Available |
20 · 24 · 25 · 30 · 35 · 36,5 · 40 · 45 · 50 |
|||||||||||||||
|
40 € |
41 € |
43 € |
47 € |
69 € |
80 € |
86 € |
231 € |
253 € |
272 € |
288 € |
445 € |
589 € |
694 € |
877 € |
927 € |
|
|
Available |
60 · 70 · 80 · 90 · 100 |
|||||||||||||||
|
55 € |
56 € |
63 € |
67 € |
94 € |
125 € |
157 € |
271 € |
309 € |
344 € |
364 € |
529 € |
709 € |
846 € |
1.081 € |
1.167 € |
|
KRASO Fibre Cement Casing
fibre
cement casing for the installation in waterproof concrete walls for
installation of pipes or cables using sealing inserts (not included in the scope of supply) | DafStB waterproof concrete guideline: stress class 1 + 2
Water pressure
tight penetration with homogeneous connection to the concrete
+ Casing
made of fibre cement as recess in waterproof concrete walls ("white tank")+ For
concreting: the
surrounding
external profile ensures a homogeneous and
water pressure tight connection to the concrete + MPA-tested up to 5 bar!
+ Radon
tight – according to FHRK leaflet MB 101
+ Corresponds
to the expansion range ("expansion coefficient") of waterproof
concrete
+ Optionally available:
KRASO Installation/Formwork Aid+ Fire protection class A1 according to DIN EN 13501-1
+ DafStB
waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type B
in accordance with DIN EN 1401, for connection to KG/HT pipes on both sides, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guideline: stress class 1 + 2The proven wall penetration made of solid wall material + KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ Dimensionally and pressure-resistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)+ Also available in KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting+ Formed plug-in sleeve on both sides for connection to KG/HT pipes+ Including two KRASO Covers as an installation aid+ Also available as thermally insulated wall penetration!
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Casing E/FE/KF
stainless steel true diameter casing with stainless steel bonding flange, surrounding approx. 12 cm, according to DIN 18533, for concreting, made of non-corrosive stainless steel V2A, for the installation of pipes or cables using a sealing insert (not included in the scope of supply), with 2 KRASO Covers as an installation aid. ID = InternalDiameter true diameter casing | DIN 18533 W1 -E and W2.1 -ESimple intergation into the sealing of larger areas+ True diameter casing with surrounding bonding flange according to DIN 18533 for a simple and fast integration into the sealing of larger areas (“black tank“)+ As a recess for retrofit installation of pipes or cables using a sealing insert!+ Available in non-corrosive stainless steel or with thick-walled true diameter plastic casing
+ DIN 18533 W1 -E and W2.1 -E
KRASO Inject FE
recess for retrofit installation of cables and pipes using a sealing insert (not included in the scope of supply), with injection system | DIN 18533 W2.1 -E, DafStB waterproof concrete guideline: stress class 1 + 2The true diameter inject casing for existing buildings+ Thick-walled true diameter casing for retrofit installation+ Fast and easy installation: injection system with fast-curing expansion resin+ Suitable for all common types of walls - also for hollow bricks+ With sealing flange for exterior sealing ("black tank")+ Ideal for rehabilitation and new connections in existing buildings+ Integrated torque control (IDK) - no torque wrench required+ For the sealing of cables or pipes using a sealing insert (not included in the scope of supply): e.g. KRASO Sealing Insert Type ED+ Gas and water pressure tight up to 1 bar+ DIN 18533 W2.1 -E ("moderate impact of pressing water")+ DafStB waterproof concrete guideline: stress class 1 + 2
