KRASO Casing Type E/FE/M
KRASO Casing Type E/FE/M
- stainless steel/ casing true diameter/ middle flange -
stainless steel casing for concreting with middle flange, surrounding approx. 10 cm, as a recess for later installation of pipes and cables using KRASO Sealing Insert (not included in the delivery), made of non-corrosive stainless steel V2A
ID = InternalDiameter true diameter casing
Convincing casings!
+ Stainless steel casing for concreting: as a recess for later installation of pipe or cables using KRASO Sealing Insert!
+ Flexibility: we offer KRASO Casings in a wide variety of different formats. Varying diameters or wall thicknesses are available on short-term notice! If necessary, the size can be adapted individually on the construction site!
+ Weight: low weight, and hence easy handling on the construction site and low transport costs!
+ Scope of supply: KRASO Casings are supplied complete with installation covers!
+ Installation: simple installation thanks to low weight and KRASO Covers as installation aid. No pre-treatment is required.
+ We offer the matching KRASO Sealing Inserts for all KRASO Casings.
Info
Scope of supply:
KRASO Casing Type E/FE/M, 2 KRASO Covers as an installation aid
KRASO Casing Type E/FE/M, 2 KRASO Covers as an installation aid
Downloads
Produktinformation
Datenblatt
-
Produktinfo_KRASO_Futterrohr_Typ_E_FE_M (785.1 KiB)
-
Datenblatt_KRASO_Futterrohr_Typ_E_FE_MF_zv (212.31 KiB)
|

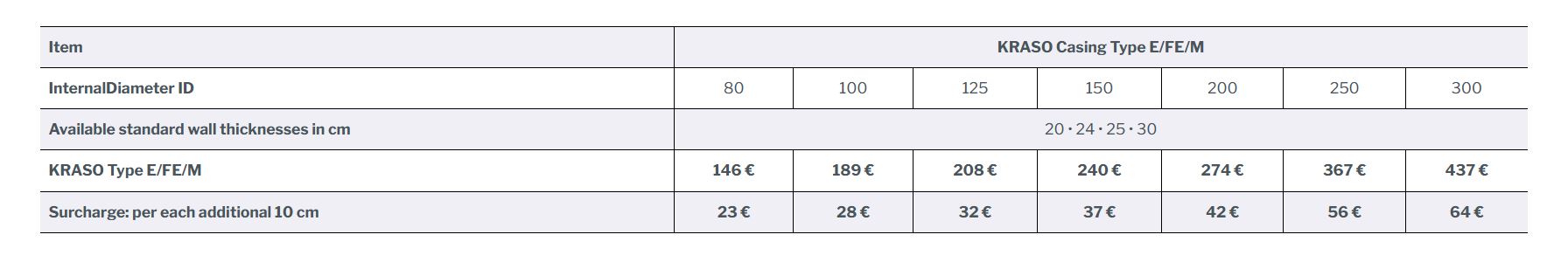

Type / Item |
KRASO Casing Type E/FE/M |
||||||
|
InternalDiameter ID |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
available standard wall thicknesses in cm |
20 • 24 • 25 • 30 |
||||||
