KRASO Casing Type DFW/FE - triple wall

- triple wall - specially made for precast factories -

for installation into triple walls, thick-walled plastic - casing true diameter for concreting, as a recess for later installation of pipes or cables using KRASO Sealing Insert (not included in the delivery), water pressure tight surrounding KRASO 2 Seal on both sides (KRASO Type DFW/FE 4), KRASO 2 Seal on one side and central water pressure tight surrounding KRASO 4 Seal (KRASO Type DFW/FE 6), KRASO 2 Seal on both sides and central water pressure tight surrounding KRASO 4 Seal (KRASO Type DFW/FE 8), 2 KRASO Covers as an installation aid
ID = InternalDiameter of true diameter casing
| DafStB waterproof concrete guidline: Stress class 1 + 2

A simple and secure sealing of precast factories

+ Triple wall elements are standard today from a technical point of view and have many advantages that cannot be overlooked on the construction site.

+ Since two construction joints are produced transversely from the inner and outer shells and a core that has been cast in situ when making the wall, any water that occurs should be stopped at the outer shell. This prevents any slip or creepage of the pipe penetration.

+ Depending on the requirements and the loads involved in that particular case, we can offer in the form of our KRASO DFW Wall Penetrations a simple and tight solution to meet this challenge!

+ DafStB waterproof concrete guidline: Stress class 1 + 2

Info

Scope of supply:

KRASO Type DFW/FE 4, KRASO Type DFW/FE 6 or KRASO Type DFW/FE 8, 2 KRASO Covers as an installation aid

Downloads

Produktinformation

Produktinfo_KRASO_Typ_DFW_FE (836.64 KiB)

Datenblatt

Datenblatt_KRASO_Futterrohr_DFW_FE_8_zv (273.24 KiB)
Datenblatt_KRASO_Futterrohr_DFW_FE_4_zv (266.82 KiB)
Datenblatt_KRASO_Futterrohr_DFW_FE_6_zv (271.38 KiB)

Prüfzeugnis

Prüfbericht_KRASO_Wanddurchführung_Typ_DFW_4 (539.74 KiB)
FHRK-Zertifikat_KRASO_Futterrohre (240.11 KiB)
Prüfbericht_KRASO_Vierstegdichtung_PVC (310.56 KiB)

Montageanleitung

Montageanleitung_KRASO_Futterrohr_Typ_FE (624.57 KiB)

DWG-Dateien

DWG_KRASO_Typ_DFW_FE_4_ID_100_20er_Wand (288.37 KiB)

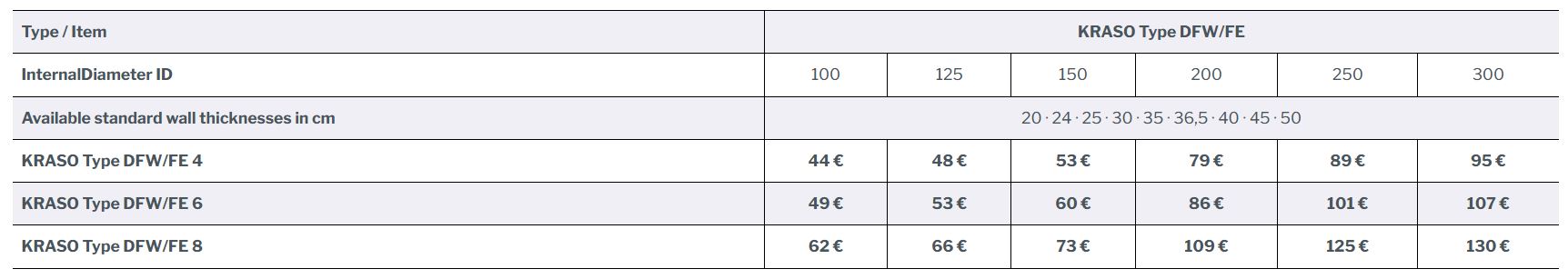

Type / Item	KRASO Type DFW/FE
InternalDiameter ID	100	125	150	200	250	300
available standard wall thicknesses in cm	20 · 24 · 25 · 30 · 35 · 36,5 · 40 · 45 · 50

Downloads auf ausschreiben.de

KRASO Wall Penetration Type B

in accordance with DIN EN 1401, for installation in waterproof concrete walls for connection to KG/HT pipes on both sides, with water pressure tight surrounding KRASO 4 Seal, formed plug-in sleeves on both sides and 2 KRASO Covers as installation aid | DafStB waterproof concrete guidline: Stress class 1 + 2 The proven wall penetration made of solid wall material + With water pressure tight surrounding KRASO 4 Seal - MPA-tested up to 10 bar!+ Radon tight: prevents from a harmful to health concentration of the radioactive noble gas! + Made of dimensionally and pressure stable solid wall material with low abrasion! Easy installation at low temperatures. + Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).+ Also available as KG 2000: made of polypropylene (PP), mineral-filled, smooth walls, long-lasting.+ Formed plug-in sleeve on both sides for connection to KG/HT pipes.+ Including two KRASO Covers as installation aid.+ KRASO Product Innovation: Type B as thermally insulated wall penetration! + DafStB waterproof concrete guidline: Stress class 1 + 2

KRASO Wall Penetration Type B - KG 2000

in accordance with DIN EN 14758, for installation in waterproof concrete walls for connection to KG 2000 pipes on both sides, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeves on both sides and 2 KRASO Covers as installation aid | DafStB waterproof concrete guidline: Stress class 1 + 2 The proven wall penetration made of solid wall material + With water pressure tight surrounding KRASO 4 Seal - MPA-tested up to 10 bar!+ Radon tight: prevents from a harmful to health concentration of the radioactive noble gas! + Made of dimensionally and pressure stable solid wall material with low abrasion! Easy installation at low temperatures. + Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).+ KG 2000: made of polypropylene (PP), mineral-filled, smooth walls, long-lasting.+ Formed plug-in sleeve on both sides for connection to KG/HT pipes.+ Including two KRASO Covers as installation aid.+ KRASO Product Innovation: Type B as thermally insulated wall penetration! + DafStB waterproof concrete guidline: Stress class 1 + 2
